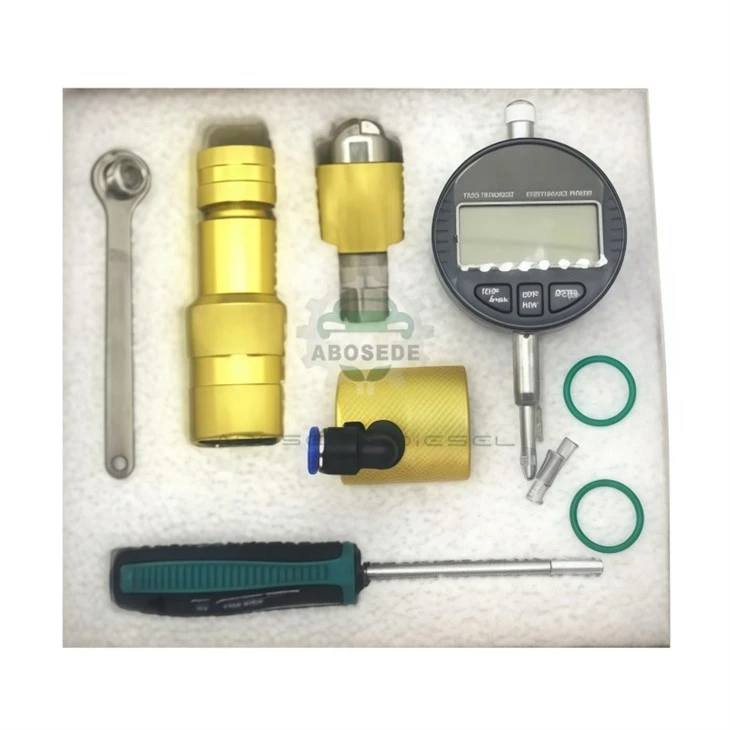

HTS-320D Series Injector Service Tool Kit – Specialized Fixture Set For Caterpillar 320D HEUI & Common Rail Systems

The HTS-320D injector service tool kit provides a comprehensive, application-matched solution for the disassembly, measurement, and component-level servicing of fuel injectors across the Caterpillar 320D excavator platform and its associated engine variants. This system directly addresses the distinct operational challenges posed by the Hydraulically actuated Electronic Unit Injector (HEUI) architecture and common rail configurations, where internal oil pressures reach up to 2,000 bar and precise actuator stroke tolerances are measured in hundredths of a millimeter. Beyond basic removal, the HTS-320D facilitates critical procedures such as residual air gap measurement, solenoid valve spring compression stroke adjustment, and injector sleeve extraction – enabling complete fuel system reconditioning within the workshop environment.

Manufactured from heat-treated alloy steel with a black-oxide corrosion-resistant finish, all components within the HTS-320D suite are engineered to withstand repetitive impact and torsional loads inherent to injector servicing. The core extraction mechanism utilizes a precision-machined puller plate that engages below the injector sleeve's upper rim, distributing removal force uniformly to prevent deformation of the cylinder head bore. The kit incorporates specialized measuring fixtures for armature stroke verification, including tooling functionally equivalent to the 9U-6891 Injector Tool Group referenced in Caterpillar service procedures for sleeve extraction and installation. Additional components enable residual air gap measurement (functionally matching RLS tool specifications) and spring compression stroke validation, addressing critical parameters that directly influence solenoid valve response timing within the injector assembly.

This tooling system is engineered for universal workshop utility, specifically targeting the Caterpillar engine families that power the 320D excavator and its derivatives across global heavy-equipment fleets. The adjustable puller geometry and interchangeable measuring adapters accommodate varying injector body diameters and retention groove profiles across the following platforms:

Applicable Caterpillar Engine Models & Injector Configurations:

C6 / C6.4 Engine: 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR

C7 / C7.1 HEUI Engine: 320D models with C7 engine platform, including late-series emissions-compliant variants

C9 / C-9 Engine: 320D and 321D applications requiring common rail injector service

323D Series: 323D, 323D L, 323D LN, 323D S, 323D SA

The kit provides comprehensive support for both HEUI injectors actuated by high-pressure engine oil and solenoid-actuated common rail variants, including servicing of the 326-4700 injector commonly utilized in 320D applications. The modular design ensures compatibility across the 320D serial number range, making it a singular solution for facilities servicing multiple Caterpillar excavator generations.

Correct deployment of the HTS-320D system follows a sequenced methodology that minimizes risk to both cylinder head and replacement injector components. For injector sleeve extraction, the puller plate is inserted into the sleeve bore until it engages beneath the upper rim; a pull bridge is positioned over the cylinder head bore, and the threaded post is advanced to draw the pull plate upward against the curled rim, dislodging the sleeve from its friction fit without chiseling or bore damage that can cost thousands in cylinder head replacement. When performing stroke validation, the measuring fixtures are mounted onto the injector body to verify residual air gap and spring compression stroke against OEM specifications – these measurements are critical because deviations beyond effective tolerance ranges result in compromised solenoid response accuracy and premature component wear.

Investment in specialized injector tooling delivers direct operational returns by drastically reducing collateral damage to expensive engine hardware. A single Caterpillar 320D cylinder head replacement can exceed several thousand dollars; the HTS-320D prevents remedial chiseling and bore scoring that occurs when generic removal tools fail. For remanufacturing operations, the capacity to perform injector sleeve replacement and precise stroke measurement in-house eliminates typical €600–€1,200 per-head outsourcing costs for machine shop reconditioning. The system reduces technician fatigue and accelerates throughput, enabling shops to confidently manage high-volume service contracts while decreasing warranty exposure associated with improper injector seating or out-of-tolerance solenoid stroke settings.

Q1: Does this kit include the specialized measuring tool for checking the residual air gap on CAT 320D common rail injectors?
A: Yes. The HTS-320D suite includes an RLS (Residual Air Gap) measuring fixture, functionally equivalent to tooling used for CAT 320D injector stroke validation, ensuring solenoid valve clearances can be verified against OEM tolerances without separate purchases.

Q2: We service both HEUI and solenoid-type injectors. Will one kit cover both?
A: Yes. The HTS-320D features interchangeable adapters and measuring fixtures supporting both HEUI injectors and solenoid-actuated common rail units, including the 326-4700 injector variant, providing comprehensive coverage across the 320D platform.

Q3: What is the expected service life of the puller plate under high-frequency commercial use?
A: Under continuous daily operation processing 5-8 injectors weekly, the hardened puller plate and threaded post typically require replacement after approximately 1,500–2,000 extraction cycles. Replacement consumables are available separately.

Q4: Does the tooling kit support injector stroke adjustment for solenoid valve response optimization?
A: Yes. The HTS-320D includes spring compression stroke and armature stroke measuring tools essential for validating solenoid valve response accuracy. When stroke dimensions fall outside tolerance ranges, injector timing is compromised – this kit enables precise verification and adjustment.

Q5: As a wholesale distributor, what is the typical lead time for replenishment orders of 10+ units?
A: We provide master carton packaging containing five complete kits per case, with private labeling options for stocking distributors. For wholesale orders of 10 units or more, contact our distribution division directly for pallet pricing and priority shipping arrangements.
