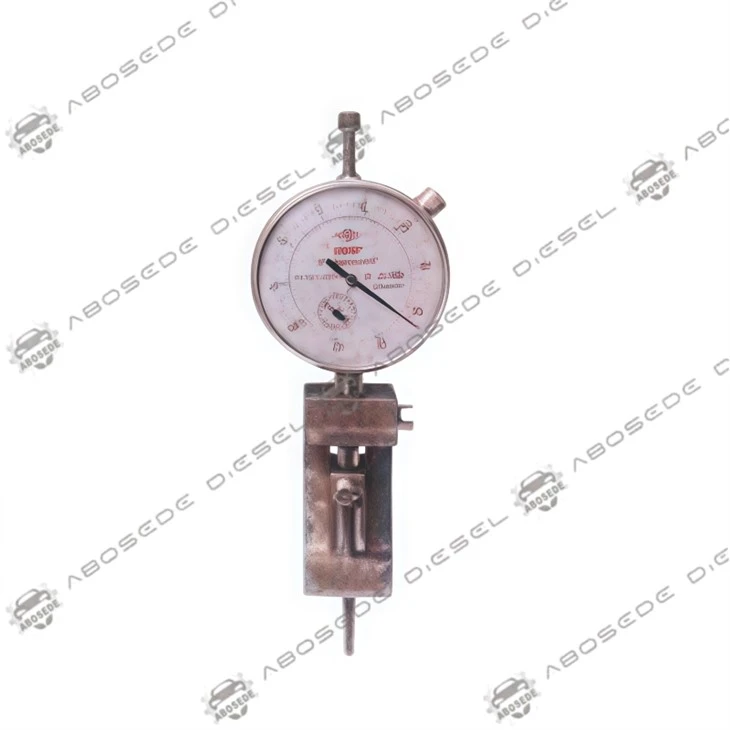

Pre-Travel Gauge: Precision Measurement For Common Rail Injector Service

The Pre-Travel Gauge serves as a dedicated dimensional inspection instrument engineered specifically for common rail injector overhaul procedures, providing technicians with a reliable method to quantify needle valve lift and plunger stroke prior to final assembly. This measurement tool bridges the critical gap between component refurbishment and operational validation, enabling workshops to verify that injector calibration parameters fall within OEM tolerances before a unit returns to service. By establishing a baseline for pre-stroke characteristics, this gauge directly supports the precision demands of modern diesel fuel injection systems where micron-level deviations translate into measurable performance degradation.

Constructed around a hardened stainless steel body with a chrome-plated probe stem to resist corrosion and wear, the Pre-Travel Gauge features an adjustable spindle mechanism that accommodates varying injector geometries. The measuring cartridge incorporates a carbide contact ball with a 1/8-inch diameter, ensuring point-contact accuracy during plunger travel assessment. The instrument delivers a repeatability rating of 0.0000004 inches, with a spindle pre-travel specification of 0.004 inches and a measuring travel range of 0.040 inches. The unit provides a gaging pressure of 63 grams, carefully selected to prevent mechanical interference with the control valve or nozzle needle during testing. The complete assembly includes a connector with a 7-foot cable for integration with external readout systems or dial indicators, supporting both standalone and bench-mounted configurations.

Injector Family	Compatibility Status	Common Applications
Bosch Common Rail (CR)	Full Compatibility	PSA, VAG, Mercedes-Benz CDI, BMW
Denso Common Rail (CR)	Full Compatibility	Toyota, Nissan, Isuzu, Hino
Siemens / Continental	Full Compatibility	Ford, Volvo, Renault, Fiat
Delphi (formerly Lucas)	Conditional Fit	GM, Vauxhall, SAIC

The gauge demonstrates universal applicability across dominant common rail architectures in the European and North American aftermarkets, supporting Bosch injectors in PSA and VAG groups, Denso units in Japanese commercial vehicles, and Siemens assemblies in Ford and Volvo powertrains.

Effective utilization requires a systematic approach accounting for installation eccentricity and fixture alignment. Begin by securing the injector body within a test bench or vice fixture, ensuring the nozzle axis is perpendicular to the measurement plane. Mount the gauge via the end connection interface using the appropriate adapter sleeve. Execute a zero calibration routine against a known reference surface to compensate for mounting eccentricity. For Bosch CR injectors, position the gauge over the control plunger access port; for Denso variants, align with the valve seat interface. Rotate the spindle until tactile contact, advance 0.004 inches to reach the true measurement threshold, then record the dial indicator reading. Compare against manufacturer service limits to ensure accurate calibration adjustment.

The common rail system operates at pressures exceeding 2,000 bar, where injection pressure consistency dictates combustion quality. The needle lift parameter directly influences injection timing; incorrect pre-travel settings lead to poor atomization, increased emissions, and reduced fuel economy. This gauge provides the quantitative feedback necessary to select appropriate adjusting shims that restore factory-specified plunger stroke dimensions during injector remanufacturing. Without verifying pre-travel, workshops risk injector drift and premature returns. By integrating this measurement step, repair facilities reduce diagnostic guesswork, minimize comebacks, and deliver products meeting ISO durability standards, transforming injector servicing into a precision engineering process that reinforces workshop credibility.

Q1: How does pre-travel measurement differ from conventional injector pop testing?

A: Pop testing evaluates opening pressure and spray pattern under dynamic conditions, while pre-travel measurement quantifies mechanical clearances before hydraulic actuation. Pre-travel identifies wear or incorrect shim selection prior to assembly, complementing pop-test validation.

Q2: Will this gauge fit all Bosch and Denso injector models currently in service?

A: The gauge accommodates most Bosch CR injector families (CRI and CRIN variants) and Denso common rail units. Heavy-duty injectors may require custom adapters. Verify your service manual for access port diameter; a universal adapter set is available.

Q3: What is the typical lifespan of the carbide contact ball before replacement?

A: Under normal workshop conditions with proper cleaning, the carbide contact ball maintains accuracy through 10,000 to 15,000 measurement cycles. Annual calibration verification against a certified master standard is recommended.

Q4: How critical is pre-travel setting for engine performance and injector longevity?

A: Pre-travel directly controls dynamic timing and injection quantity. Even 0.002 inches off alters energizing time, causing over-fueling at low loads or under-fueling at peak torque, accelerating nozzle wear and triggering DPF regeneration issues.

Q5: Can this gauge be used with the injector installed in the cylinder head?

A: No. The gauge is designed for bench-top measurement during overhaul. In situ measurement is not feasible due to access constraints and thermal distortion risks from residual engine heat.

Q6: What is the difference between pre-travel and residual stroke?

A: Pre-travel is the clearance between armature and control valve before solenoid energizes; residual stroke is the remaining travel after armature contacts the stop. This gauge measures total travel; pre-travel targets are specified in service manuals, with residual calculated by subtraction.
