CUMMINS EUI TOOLS: Precision Dismounting & Installation Solutions For Heavy-Duty Fuel Systems

The aftertreatment of Cummins Electronic Unit Injector (EUI) systems, particularly the legacy CELECT architecture in N14 and L10 powerplants, demands specialized tooling to bridge the gap between mechanical force and electronic component fragility. Correct application of fixtures like the M20130 remover installer ensures fuel boundary integrity is maintained without inducing mechanical trauma to the injector body or cylinder head bore, a critical factor for shops servicing high-mileage over-the-road platforms.

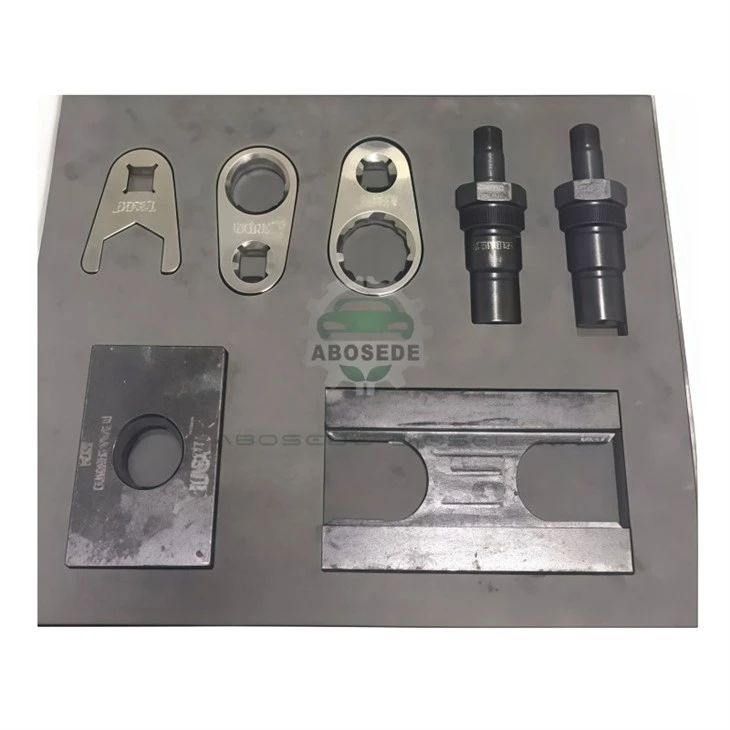

This EUI service tooling is precision-engineered to address the recessed injector cavities of Cummins Celect engine blocks, operating on coaxial mechanical leverage to prevent off-axis scoring of the copper sleeve receiver walls. The primary M20130 is a dual-function master tool built from high-tensile alloy, engineered to overcome the carbon-locked bond formed after thousands of operational hours. Specifications dictate a shipping mass of 8.00 lbs, providing necessary inertia for clean pulls without shattering internal coil windings. For calibration environments, the HK860 upgrade kit integrates with the HA290 PT Injector Calibrator, requiring a specific 0.426 Cam YDB438 to drive the injector, alongside a variable electronic signal unit (15ms–30ms) to simulate ECM pulse widths accurately.

The application scope concentrates specifically on classic high-torque Cummins L10 and N14 platforms equipped with the Celect electronic fuel architecture, extending logically to the Cummins M11 and other Celect derivatives where similar extraction challenges exist. These tools are indispensable for vocational freight fleets, marine reconditioning yards, and heavy equipment service centers dealing with legacy Cummins EUI hardware. Unlike universal pullers, these tools feature expansion collar locks and centering pilots tailored specifically to the holding slots of these engine families, effectively eliminating the side load risks associated with generic pry bars, thus protecting the fragile plastic solenoid wire harness housing and integral terminal studs.

Implementing the correct extraction sequence is paramount. The process begins with wire-brushing the injector rocker area to strip hard carbon scale. The M20130 bridge is then positioned flat across the cylinder head deck, connecting puller jaws into the designated injector shoulder grooves. The critical rule: avoid high-speed pneumatic impacts. Hammering instantly stresses internal fine-wire terminal rings. Instead, use manual breaker bars for steady clockwise leverage, drawing the injector smoothly from its well. Upon extraction, the casing bore must be wire-chased to bright metal. For installation, the replacement EUI must be generously lubricated and guided squarely using the installation driver configuration, turning down the mandrel until the injector seats dead-square to exact factory depth limits.

Specification	Detail / Requirement
Tool Architecture	Dual-Function Mechanical Draw-Bar Bridge with Expansion Collar Locks
Engine Compatibility	Cummins L10, M11, N14 (CELECT Electronic Systems)
Primary Application	Carbon-Stuck Injector Extraction / EUI Installation
Material Construction	High-Tensile Precision-Machined Structural Tool Steel
Calibration Adapter	HK860 Kit (Requires 0.426 Cam YDB438 for HA290)

In diesel common rail repairs, the value of specialized Cummins EUI tools lies in preventing catastrophic secondary failures. The "install and pray" method or unguided pry bars often cause off-axis shifting that jams the injector body, creating gouges that allow engine lube oil to blend directly into fuel loops-a costly contamination event. Furthermore, the inherent sensitivity of CELECT solenoids to impact shocks means a single misstep can snap the casing or open the electronic loop, rendering a high-value component scrap. Utilizing the M20130 eliminates scoring of precision sleeve walls, ensuring perfect O-ring sealing. This transforms a high-risk job into a controlled, profitable routine for workshops offering reliable heavy-duty EUI diagnostic services.

---

Q1: Will this EUI tooling fit the newer Cummins ISX platforms?
A: No. This tooling is precisely engineered for the Cummins Celect N14 and L10 engines and is not dimensionally compatible with XPI or HPI systems on ISX platforms.

Q2: What is the primary risk of skipping the M20130 draw bridge during overhaul?
A: Without the M20130, off-axis prying risks scoring the receiver sleeve, causing fuel-oil cross-blending, and often fractures the fragile plastic solenoid casing, instantly destroying the EUI.

Q3: Can I use an impact wrench to speed up extraction with these tools?
A: Never. Impact wrench hammering transmits high-frequency shock loads that easily shatter the injector's internal coil windings and strip the puller threads. Use manual leverage only.

Q4: How do I prevent damaging new O-rings during seating?
A: Use the M20130 installation driver to guide the injector perfectly square. This prevents the viton O-rings from rolling, tearing, or pinching against the cylinder head walls.

Q5: What calibration is required for the HK860 adapter on the HA290 bench?
A: The HK860 kit requires the specific installation of a 0.426 Cam YDB438. The electronic signal unit must also deliver a variable pulse within the 15ms–30ms range to match Celect ECM specs.
