Common Rail Injector Puller: Precision Extraction For Modern Diesel Fuel Systems

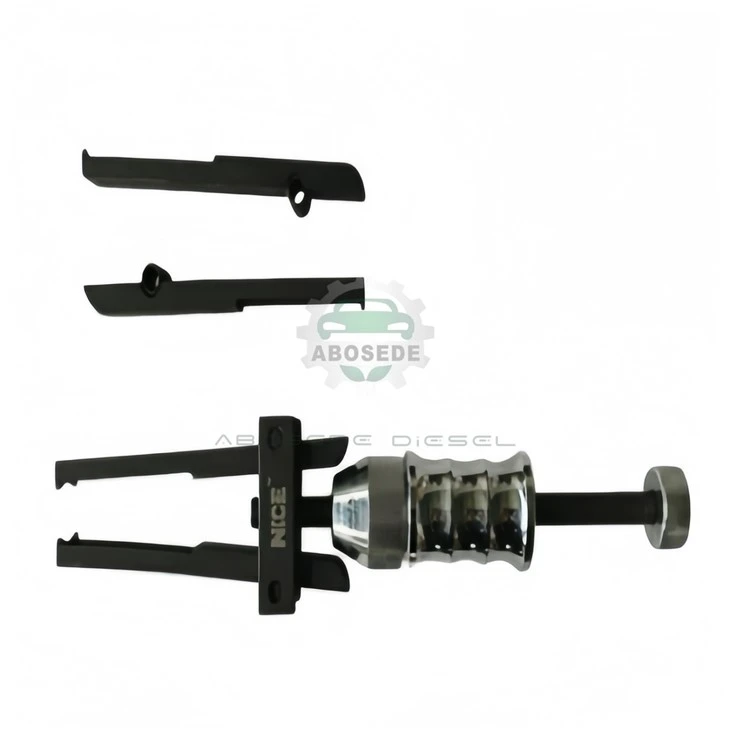

The Common Rail Injector Puller is a specialized tool engineered to remove seized or stubborn fuel injectors from high-performance diesel engines without cylinder head disassembly. Operating at system pressures exceeding 2,200 bar, modern common rail systems create intense thermal and mechanical bonding that renders conventional extraction methods ineffective. This professional-grade tool employs a sliding hammer mechanism with application-specific adapters to deliver controlled impact force, breaking the bond while preserving injector nozzles and cylinder head seating surfaces. For workshops where downtime means lost revenue, this tool transforms injector service from a high-risk ordeal into a systematic, predictable procedure.

Impact Mass	Stroke	Jaw Thickness	Jaw Spread	Claw Reach	Hammer Length	Total Weight	Adapter Threads	Compatible Brands
1.70 kg	250 mm	15 mm	20 mm	27 mm	370 mm	2.71 kg	M27x1.0, M12x1.75, M12x1.5, M17x1.0, M18x0.75, M20x1.0, M22x1.5, M25x1.0	Bosch, Delphi, Denso, Siemens

The puller covers dominant European, Asian, and North American diesel engine platforms. Primary applications include Mercedes-Benz CDI engines-OM611, OM612, OM613, OM646, OM647, and OM648-where injector seizure is a documented concern. For BMW technicians, compatibility extends to M47TU, M57, and M57TU common rail units. The tool works across Denso, Siemens, Bosch, and Delphi injector brands from 1999–2017, covering both solenoid-actuated and piezoelectric technologies. With appropriate adapters, the system serves Volkswagen TDI, Audi, Ford Powerstroke 6.0/7.3, and GM Duramax applications. The extraction method typically eliminates valve cover removal and electrical harness disconnection, reducing complexity and protecting expensive electronic components.

Begin by thoroughly cleaning the injector well with compressed air and solvent to remove debris. Install the appropriate threaded coupler onto the injector body, ensuring full engagement with retention threads. For severely seized injectors, utilize the included jaw-style extractors to grip externally, wrapping around the injector shoulder for positive mechanical lock. Connect the sliding hammer assembly, verify all connections are tightened, and position the tool vertically aligned with the injector axis to prevent side-loading. Execute controlled impact strokes by sliding the 1.70 kg mass through the 250 mm stroke, allowing kinetic energy to transfer directly to the injector. For extreme cases, progressively increase impact intensity while monitoring for initial movement; rotating the tool between impacts helps break the circumferential carbon seal. The integrated rotation handle permits simultaneous axial and torsional extraction. Once the injector breaks free, continue with reduced force to prevent sudden release. After removal, clean the injector bore with appropriate reaming tools and inspect the sealing surface before installation.

At operating pressures up to 2,200 bar, injector replacement intervals typically fall between 120,000–160,000 miles, and the progressive wear of fuel injection equipment is accelerated by multi-stage injection strategies used for emissions compliance. Traditional extraction consumes 2–4 hours per injector and often requires cylinder head removal, adding 6–10 hours of labor while risking damage to head gaskets and fasteners. With labor rates averaging $120–$180 per hour, the Common Rail Injector Puller reduces extraction time to under 30 minutes per injector, eliminating cylinder head removal entirely and preserving injector bodies for core exchange programs. The tool pays for itself within a single major service event, and its universal design removes the need for multiple brand-specific pullers, significantly lowering tool inventory costs. For fleet maintenance operations, the cumulative time savings across multiple vehicles deliver substantial operational efficiency gains.

Q1: How do I select the right adapter for my injector?
A: Bosch injectors typically use M27 x 1.0 threads; Mercedes CDI often requires M17 x 1.0. Measure the thread diameter and pitch with a gauge, or consult the application chart covering 200+ engine variants.

Q2: Is the extraction force safe for aluminum cylinder heads?
A: Yes. The 1.70 kg sliding hammer delivers controlled impact energy, not static pull, preventing sustained overload that could deform aluminum heads.

Q3: Does it work on piezoelectric and solenoid injectors?
A: Yes. The puller grips the injector body exterior or retention threads, independent of internal technology.

Q4: How long does the tool last professionally?
A: Constructed from high-grade carbon steel with anti-corrosion treatment, it delivers 5+ years of heavy workshop use with routine maintenance.

Q5: Can I extract injectors without removing the valve cover?
A: In most applications, yes-saving significant labor time and protecting sensitive electronics.

Q6: How does this help with core exchange?
A: By removing injectors intact, the tool preserves rebuildable core value, saving customers hundreds per injector versus new replacement units.
