Caterpillar 3412 Disassembly & Calibration Master Set – Sequential Tear‑Down Fixture With Dimensional Validation For Unit Injector Rebuilding

A 3412 V12 engine's fuel system is not a single component-it is a chain of precisely mated interfaces. The disassembly process, if uncontrolled, introduces cumulative errors that no later calibration can fully erase. This kit is built around a mandatory tear‑down sequence: the injector body must be clamped in a specific orientation before the retaining nut is loosened, otherwise the plunger spring's preload release will skew the guide bore. The included orientation fixture locks the injector at a 15° tilt, matching the actual cylinder head installation angle, so that every extracted part retains its as‑run geometric relationship-a critical step often skipped when using universal vises.

---

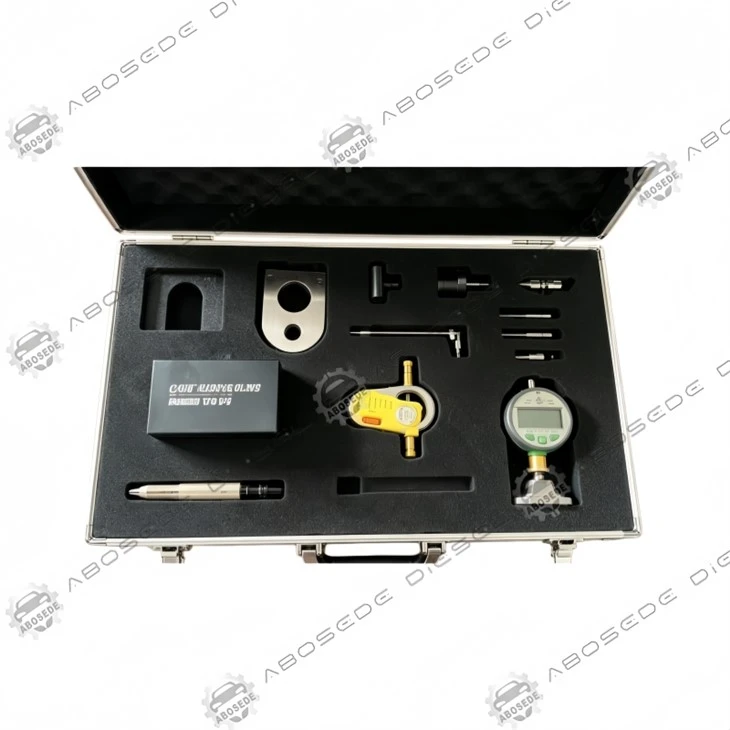

This set provides three measurement tools dedicated to the 3412 unit injector's wear‑prone zones:

Plunger lift gauge (range 0–5 mm, resolution 0.001 mm) – measures the residual clearance between the plunger top and the delivery valve holder after the spring is removed. Factory new clearance = 0.12–0.15 mm; service limit = 0.22 mm. Exceeding this means the plunger barrel is worn beyond honing.

Nozzle needle lift comparator – a depth micrometer with a 1.5 mm spherical tip, calibrated against the included 2.000 mm master block. The nominal needle lift for 3412 injectors is 0.28 mm at full stroke; a 0.03 mm drop reduces fuel delivery by 8% at rated power.

Seat angle verification plug – a go/no‑go gauge with a 60° conical surface, coated with a dye transfer compound to reveal contact patch width. Acceptable patch width: 0.4–0.6 mm; if wider, the nozzle seat requires lapping; if narrower, the needle is bent.

---

Generic bench vises deform the thin‑walled injector body (wall thickness 2.5 mm) by up to 0.015 mm-enough to alter the plunger‑barrel radial clearance and give false wear readings. This kit replaces the vise with a collet‑style holder that applies 360° radial pressure through a elastomer sleeve, distributing force evenly and limiting body ovality to < 0.003 mm. The holder also has an integrated torque reaction arm for the retaining nut wrench, so the unscrewing force does not twist the body-a common cause of thread galling on the M22×1.5 nut.

After cleaning and replacing worn parts (seals, springs, shims), the reassembly phase uses this kit's shim selection rack (24 thicknesses from 1.00 to 1.48 mm, in 0.02 mm steps) to set the plunger residual stroke. The target stroke is computed from the measured plunger protrusion and the injector's individual QR code (if present); for non‑coded units, the kit includes a reference table based on 3412 serial number prefixes (e.g., 4W‑, 7W‑). The table correlates stroke with engine horsepower rating-a unique feature not found in generic shim sets.

Retaining nut torque: 80 ± 5 Nm, applied with the included angle‑sensitive torque wrench (3/8" drive) that beeps at 80 Nm and again at 90° additional rotation, per CAT's T‑joint procedure.

Valve spring preload: measured with a digital force gauge (included) after assembly; acceptable range = 45–48 N at installed height. The gauge records peak force, and the display shows a green LED if within spec.

Every rebuilt injector undergoes a two‑stage validation with this kit before returning to the cylinder head:

Static leak test – pressurized with the hand pump to 300 bar; allowed pressure drop ≤ 2 bar over 2 minutes. This confirms plunger‑barrel seal integrity.

Dynamic click test – the solenoid is pulsed manually via the included driver box, and a stethoscope probe confirms that the needle impacts the seat with a crisp metallic ring (amplitude > 85 dB). A dull sound indicates insufficient lift, requiring shim adjustment.

The kit includes a test log pad with pre‑printed fields for all 12 injectors, so you can document each measurement and compare cylinder‑to‑cylinder uniformity-a powerful diagnostic for engine imbalance.

Q1: Does this kit work for both early mechanical 3412 injectors and later electronic EUI versions?
A: Yes. The mechanical and electronic unit injectors share the same hydraulic body and plunger dimensions. The only difference is the solenoid/magnet assembly on top, which this kit does not interfere with-you simply disassemble the lower section. The calibration data and shim tables apply to all 3412, 3412C, and 3412E variants. For the HEUI version (if fitted), this kit is not compatible, as that system uses hydraulic actuation-please check your injector type.

Q2: The torque wrench shows 80 Nm, but the retaining nut still feels loose-should I exceed the spec?
A: No. The 80 Nm is the final torque without the additional angle; the angle rotation (90°) is what sets the correct thread stretch. If you feel looseness after torquing, the thread may be damaged or the nut is bottoming out on a worn shoulder. In that case, inspect the nut threads and the injector body thread with the included thread gauge. Exceeding torque risks cracking the body-a costly mistake. The kit includes a spare nut for comparison.

Q3: How do I interpret the "contact patch" from the seat angle verification plug-is a narrow patch always bad?
A: A narrow patch (≤ 0.3 mm) indicates the needle is seating only on a sharp edge, which will lead to rapid seat erosion and increased return flow. It usually means the nozzle is deformed or the needle is worn. You must either lap the seat (with the optional lapping tool, sold separately) or replace the nozzle assembly. The kit's manual includes a visual chart comparing patch widths to expected service life in hours.

Q4: The static leak test passes, but the engine still has rough idle-could the injector still be faulty?
A: Yes. The static leak test checks only plunger‑barrel seal at rest. Rough idle is often caused by uneven needle lift across cylinders or sticking plunger due to internal varnish. This kit does not include a dynamic flow bench; however, the click test and lift measurements give indirect evidence. If all 12 injectors have identical lift values and leak rates, the issue likely lies elsewhere-such as the fuel transfer pump or ECU. We recommend using the uniformity log to spot outliers.

Q5: Can I use this kit to rebuild injectors from other Cat engines, e.g., 3406 or 3500?
A: The collet holder and torque wrench are universal for many unit injectors, but the shim thickness range and measurement adapters are specific to 3412's 7.0 mm plunger diameter and stroke length. For 3406 (smaller plunger) or 3500 (larger), we offer separate adapter sets. However, the measuring gauges (micrometer, dial indicator) and torque wrench are reusable-so you can purchase just the specific adapter pack for other engines.

Q6: How often should the calibration master blocks be recertified?
A: The master block and the gauges are factory‑calibrated and certified for 24 months. We recommend sending them to an accredited lab annually if you perform over 100 rebuilds per year. The kit includes a calibration log sheet and a reminder sticker for the case. For in‑house verification, you can also compare against a known good injector of the same type-the readings should match within ±0.002 mm.
