DENSO 1211 Dismounting Tools With Valve Measure Set & Shims

Precision disassembly and measurement are non-negotiable when servicing high-pressure common rail injectors. The DENSO 1211 series, widely deployed in heavy-duty trucks and off-highway machinery, demands specialized tooling that goes beyond generic pullers and wrenches. This kit delivers a complete ecosystem for dismantling, gauging, and resetting critical injector clearances, empowering workshops to perform thorough overhauls while eliminating the guesswork that often leads to premature injector failure or subpar engine performance after servicing.

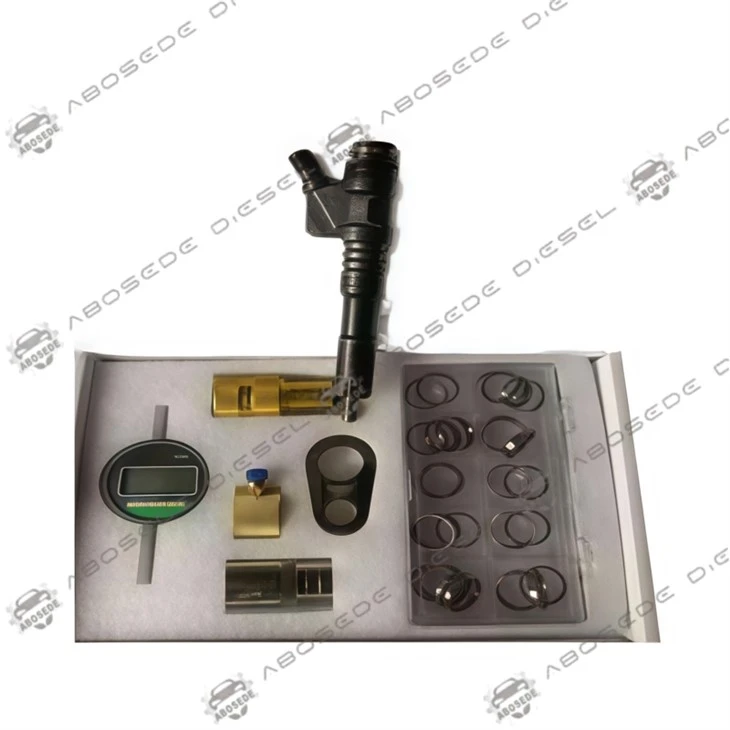

This kit is engineered around the specific geometric constraints of the DENSO 1211 injector body. The dismounting tools feature precision-machined extraction claws and pilot inserts crafted from chromoly steel, tailored to grip the housing securely without scoring delicate sealing surfaces. The integrated valve measure set assesses residual lift and valve clearance with micron-level accuracy, including calibrated feeler gauges and a dial indicator holder that positions the gauge precisely over the valve stem. The accompanying shim assortment covers a broad spectrum of thicknesses, typically varying in 0.01mm increments, enabling technicians to reset mechanical lash to within exacting OEM tolerances. This ensures post-repair lift parameters remain critical for maintaining optimal injection timing and fuel atomization within the diesel fuel injection system.

While specifically designed for the DENSO 1211 platform, the practicality of this tool set extends across a spectrum of popular engine families. The measurement fixtures and disassembly adapters demonstrate high compatibility with injectors used in Cummins ISB, ISC, and ISL series, as well as Volvo and Scania heavy-duty engines that utilize similar Denso common rail architectures. Workshops servicing off-road equipment, such as excavators and wheel loaders powered by Caterpillar (CAT) C7 and C9 powerplants equipped with Denso fueling systems, will find this tool indispensable. This broad coverage minimizes the need for multiple specialized kits, making it a versatile asset for service bays handling mixed fleets of on-highway trucks and construction machinery.

Before extraction, the area surrounding the injector bore must be meticulously cleaned to prevent debris ingress. The extraction tool must be securely seated over the injector body to avoid twisting forces that could damage the nozzle. When installing new components, the shim selection process is data-driven; technicians utilize the measure set to calculate the gap between the valve armature and the armature stop. The correct shim is chosen to bring this "air gap" within the specified range, typically around 50 to 80 microns. This step is vital as an incorrect gap directly alters injector actuation timing, leading to rough idling or increased emissions. Lubrication of O-rings and mating surfaces with clean diesel fuel is essential during reassembly to avoid shearing seals.

In high-mileage commercial vehicles, the valve and seat inevitably experience wear, increasing clearance and reducing needle lift efficiency. Without the precise adjustment facilitated by this tool set, the injector's flow rate diverges from ECU mapping, causing reduced fuel economy and increased soot production. By enabling accurate setting of the mechanical lift and utilizing the shim to restore factory-specified preload, workshops effectively recalibrate the injector's response to rail pressures often exceeding 2,000 bar. This not only rectifies drivability issues but also extends service life, offering a cost-effective alternative to complete unit replacement for commercial fleet operators.

Q1: Are these tools exclusively for the DENSO 1211, or will they work on other injector models?
A: While optimized for the DENSO 1211 footprint, the measurement components and extraction mechanics are compatible with various injectors from Bosch and Delphi that share similar armature stroke measurement requirements. However, we recommend verifying the physical dimensions of your specific injector body against the tool specifications.

Q2: What is the recommended interval for checking injector valve clearance?
A: For heavy-duty trucks, it is standard practice to inspect valve geometry during major overhauls or when diagnosing excessive black smoke or engine knocking. Typically, this occurs every 500,000 to 800,000 miles, or immediately if return fuel flow exceeds OEM limits.

Q3: Does the shim assortment cover the wide variance found in worn injectors?
A: Yes. The set includes an extensive range of shim thicknesses covering standard factory deviations as well as compensations for wear, allowing precise adjustment of the residual air gap regardless of seat wear depth.

Q4: How do I ensure the measure set is calibrated correctly for accurate readings?
A: The dial indicator should be zeroed on a flat reference surface before each use. Ensure the holding fixture is tightened without over-torquing, which might warp the injector body and cause false readings. Routine calibration against a master gauge is recommended for professional workshops.

Q5: Can this tool package help diagnose a "sticking" injector issue?
A: Yes. While primarily a repair tool, the dismounting and measurement process allows visual inspection of the valve spring and internal components for varnish or binding, confirming a mechanical sticking fault versus an electrical failure.

Q6: Is this kit suitable for mobile field service environments?
A: Absolutely. Packaged in a high-density foam-lined case, the tools are protected against the shock and vibrations common in mobile service trucks, ensuring accurate measurements are possible even in field conditions.
