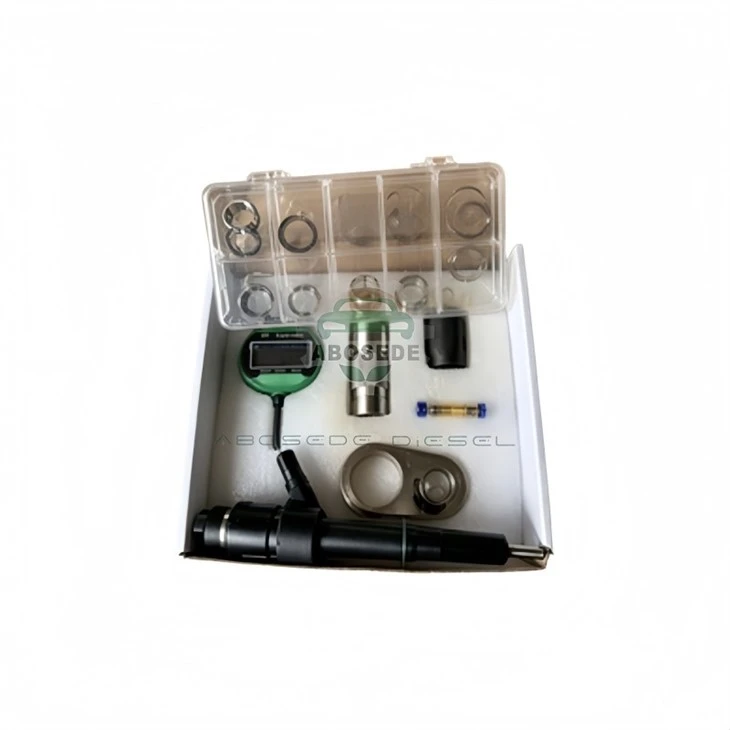

BeiYou Injector Service Master Kit – BY-ISK2000 – Integrated Metrology, Disassembly, Electrical Validation & Leakage Diagnosis For Common-Rail Nozzles

Injector degradation rarely announces itself with a single symptom. A worn needle seat elevates pilot injection variation, which shifts main combustion phasing, which in turn alters post-injection soot oxidation efficiency. The BY-ISK2000 addresses this chain reaction by providing a closed-loop service station-from precision dimensional gauging and controlled disassembly, through solenoid/actuator electrical characterization, to reassembly and leakage verification. Instead of piecemeal tools, this kit consolidates 27 dedicated implements into a single modular trolley, transforming any workshop bench into a certified injector remanufacturing cell for BeiYou (BY) series nozzles used in Euro-II to Euro-V common-rail systems.

The BY-ISK2000 is organized into five color-coded compartments:

Zone 1 – Metrology Station (V-blocks, dial indicators, digital bore gauges, and needle lift sensors)

Zone 2 – Controlled Disassembly (torque-limited wrenches, puller sets, and heating/cooling sleeves for interference-fit components)

Zone 3 – Electrical Test Pod (insulation resistance meter, inductance bridge, and PWM signal generator for solenoid actuation)

Zone 4 – Hydraulic Leakage Bench (pressurization pump with 0–200 MPa gauge and back-leakage graduated cylinder)

Zone 5 – Reassembly Calibration Jig (clamping fixture with integrated torque-angle feedback)

Each zone operates independently, yet the workflow follows a sequential logic: measure → open → test → seal → verify. This structure reduces cross-contamination and ensures traceability for every serviced injector.

Nozzle wear manifests in three dimensions: seat cone angle erosion, needle guide clearance, and sac volume enlargement. The BY-ISK2000 includes:

Digital needle lift indicator (range 0–1.2 mm, resolution 0.001 mm) with a spring-loaded follower that maps lift vs. applied pressure-revealing both static lift and dynamic bounce characteristics.

Interchangeable anvil set for measuring valve piston stroke (0–0.8 mm) and control plunger clearance (0.002–0.050 mm), with tolerance tables for BY-01, BY-03, and BY-06 nozzle variants.

Optical comparator attachment (optional) to visualize edge rounding on nozzle holes-a prelude to flow degradation even when pressure values remain nominal.

All gauges are supplied with certified calibration standards traceable to ISO 17025, enabling service centres to issue dimensional test certificates for warranty claims.

Improper disassembly-using hammer or vise-cracks the delicate solenoid housing or deforms the needle guide. The kit features:

Hydraulic puller with adjustable jaw spread (20–60 mm) and a built-in load cell that limits extraction force to <1.2 kN, preventing thread galling on the nozzle retaining nut.

Heating sleeve for controlled thermal loosening of Loctite-bonded components, with a temperature regulator set at 150°C ±5°C to avoid metallurgical phase changes.

Torque-angle wrench (2–25 N·m, resolution 0.1 N·m) with digital display for tightening the retaining nut to OEM-specified 120° + 8 N·m sequence-critical for maintaining the correct needle lift and seat preload.

The assembly jig incorporates a spring-loaded centering pin that ensures the needle axis aligns with the nozzle body within 0.02 mm, preventing eccentric wear after rebuild.

Modern BeiYou injectors use high-speed solenoid or piezo actuators. The BY-ISK2000's electrical pod performs:

Resistance measurement (0.1 Ω–100 Ω, ±0.2%) to detect coil shorts or open circuits-a typical healthy solenoid reads 0.8–1.2 Ω at 20°C.

Inductance profile (1 kHz test signal) that reveals armature air-gap changes; a rising inductance at closed position indicates delayed magnetic flux buildup, often due to residual magnetism or plunger sticking.

PWM response test – applies a 5% duty step at 200 Hz and captures the current rise time (0–90% of peak). A sluggish rise (>1.2 ms) points to mechanical friction or degraded spring preload, even before hydraulic symptoms appear.

This electrical data is stored in the internal database alongside the dimensional log, creating a complete health passport for each injector.

Q1: Does the BY-ISK2000 support injectors with piezo actuators, or only solenoid types?
The electrical pod includes a high-voltage piezo driver option (up to 150V pulse) and a capacitive charge/discharge measurement circuit. However, the hydraulic and dimensional fixtures are identical-simply swap the electrical adapter cable for piezo variants (available as an add-on).

Q2: How do I know which shim thickness to select during reassembly without the original factory data?
The kit provides a shim selection chart based on measured needle lift at a specified preload. You measure the current lift, compare to the target lift (engraved on the nozzle body), then use the included shim set (thicknesses from 0.1 to 0.5 mm in 0.02 mm increments) to achieve the correct value. An Excel-based calculator is included on the USB drive.

Q3: Can this kit detect nozzle hole erosion that is not visible to the naked eye?
Yes-the optical comparator attachment (optional) magnifies the nozzle holes 20×, and the included flow test adapter measures the time to fill a 50 mL vessel at 10 MPa, giving a quantitative flow coefficient. A 5% reduction in flow from the nominal spec indicates erosion, even if holes look clean.

Q4: What is the maximum number of injectors that can be processed per day with this kit?
In a typical workshop with one technician, the full measurement–disassembly–repair–assembly–validation cycle takes 45–60 minutes per injector. For batch processing (e.g., fleet sets of 6), the modular layout allows parallel operations-one injector on the electrical pod while another is in the leakage bench, effectively reducing average time to 35 minutes.

Q5: Are there any special safety precautions when handling the high-pressure leakage bench?
The bench is equipped with a transparent polycarbonate shield and a pressure-relief valve that auto-opens at 180 MPa. All fittings are ISO 15171-compliant quick-connects with double-seal O-rings. We recommend wearing the supplied protective gloves and goggles during pressurized testing, as per EN 982 standard.

Q6: Can I use the disassembly fixtures for injectors from other brands (e.g., Bosch, Denso, Delphi)?
While the base pulling jaws and torque wrench are universal, the specific anvils, gauge probes, and shim charts are tailored to BeiYou nozzle geometries. We offer conversion kits for other brands, but the base BY-ISK2000 is optimized for BY-01/03/06. Contact us for cross-brand adapter sets.
