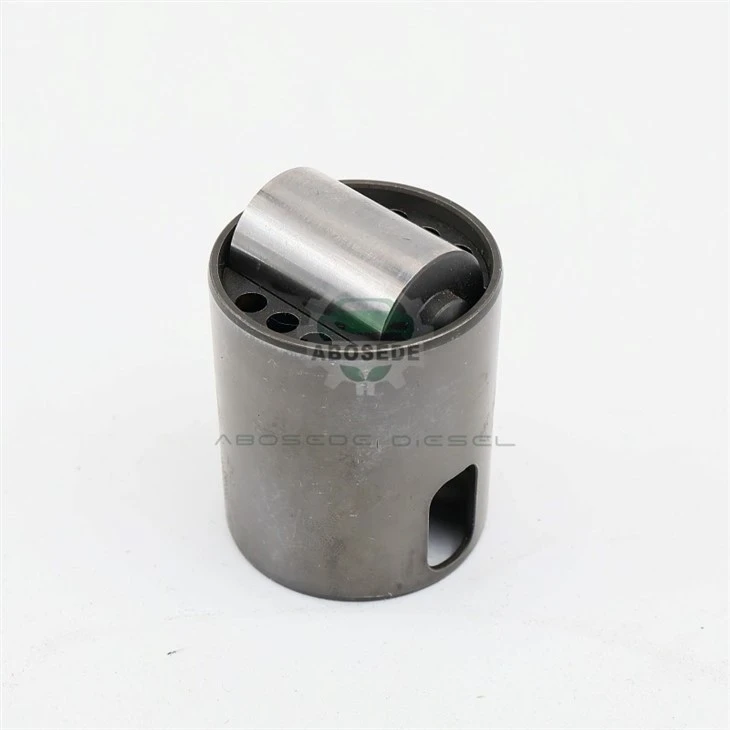

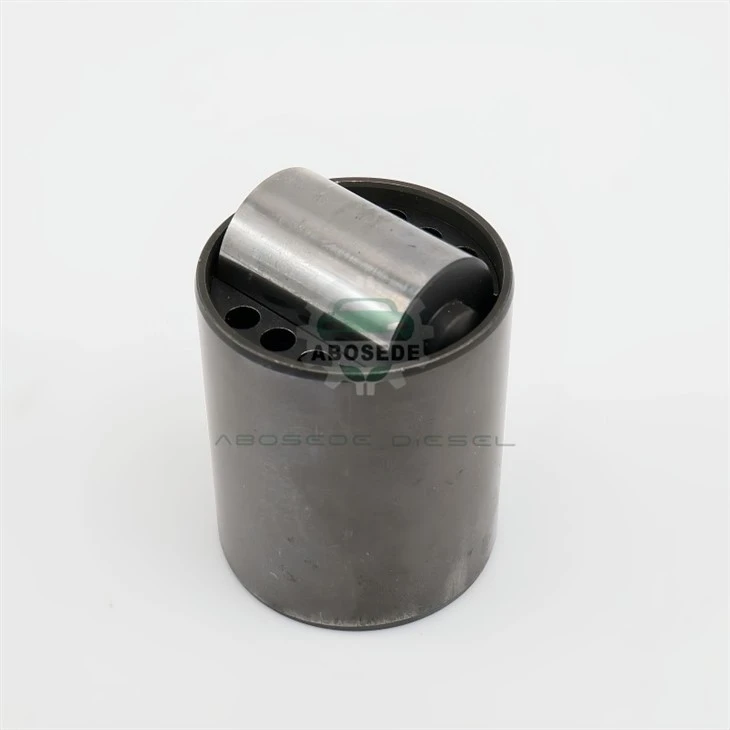

HP5 Roller Assembly 1J508-50501 | Denso HP5 Pump Repair Part

This HP5 roller assembly, identified by OEM reference 1J508-50501 and Denso pump family 299000-0020, is the load-bearing interface between the camshaft lobe and the plunger shoe inside Denso HP5 high-pressure common rail pumps. For diesel repair shops and parts distributors handling Toyota GD-series, Kubota V3800, and other HP5-equipped platforms, this component determines whether a pump rebuild restores rail pressure stability or returns within weeks with scuffed rollers and metal-laden fuel.

The HP5 roller is not a universal fitment across all common rail pumps. It belongs specifically to the Denso HP5 architecture, which appears in two primary configurations: the HP5S single-cylinder variant and the HP5D two-cylinder variant for higher-capacity light commercial applications . In the field, these pumps are most frequently encountered on Toyota 1GD-FTV and 2GD-FTV engines found in Hilux, Fortuner, and Land Cruiser Prado models from approximately 2015 onward, as well as Kubota V3800 industrial engines . Distributors should verify the original pump number against the Denso ETSI catalog before committing stock, because HP5 variants share external housing dimensions but differ in internal calibration and plunger count . A roller that physically seats but lacks the correct surface hardness for the specific cam profile will exhibit accelerated wear under 250 MPa rail pressure conditions.

Roller replacement demands more than a clean bench. Before disassembly, confirm the pump is locked at the specified timing position; incorrect shaft orientation during roller and shoe removal can misalign the plunger guide and introduce side-loading on reassembly . Inspect the camshaft lobe for pitting or polishing beyond acceptable limits-installing a fresh roller against a worn cam accelerates the same failure mode. Lubricate the roller-to-shoe junction with clean diesel during assembly; the HP5 relies on fuel from the low-pressure circuit to reach this friction pair, and dry assembly starting creates an immediate scuffing risk before normal lubrication flow establishes . Verify free rotation by hand and confirm the roller sits flush within the shoe cradle without binding.

A failed HP5 roller is rarely an isolated event. When the roller stops rotating and begins sliding against the cam, it generates metallic debris that travels downstream into the rail, injectors, and return circuit . What begins as a low-cost component replacement can escalate into a full fuel system contamination event requiring injector replacement, rail flushing, and tank cleaning. For the repair shop, the economic argument for replacing the roller during any HP5 overhaul is straightforward: the part cost is negligible against the labor and liability exposure of a repeat pump removal. Distributors serving fleet accounts should position the roller as a preventive maintenance item bundled with seal kits and SCV replacements, not as a reactive order after a tow-in.

Q1: Can I replace just the roller without the shoe?
A: Inspect the shoe contact surface under magnification. If scuffing or DLC coating loss is visible, replace the pair. A new roller on a scored shoe will fail prematurely.

Q2: How do I confirm this roller fits my HP5 pump variant?
A: Cross-reference the pump's full OEM number, not just "HP5." The 1J508-50501 roller covers 299000-0020 family pumps, but HP5D variants may use different internal geometry.

Q3: What causes a roller to pit before 150,000 km?
A: Fuel lubricity deficiency, water contamination, or extended low-fuel-level operation. The roller relies on diesel for boundary lubrication; poor fuel quality accelerates surface fatigue.

Q4: Do you offer batch pricing for rebuilders?
A: Yes. Shops performing more than five HP5 overhauls monthly should request the workshop pack quantity. Contact us with your monthly volume for tiered pricing.

Q5: What symptoms indicate roller failure before pump removal?
A: Hard starting, rail pressure codes (P0087/P0093), and metallic shimmer in the fuel filter housing. By the time these appear, debris may already be downstream.

Q6: Is this roller compatible with remanufactured HP5 pumps?
A: Confirm the remanufacturer's internal specification. Some rebuilders use undersized or coated rollers; our component matches original Denso dimensional tolerances.
