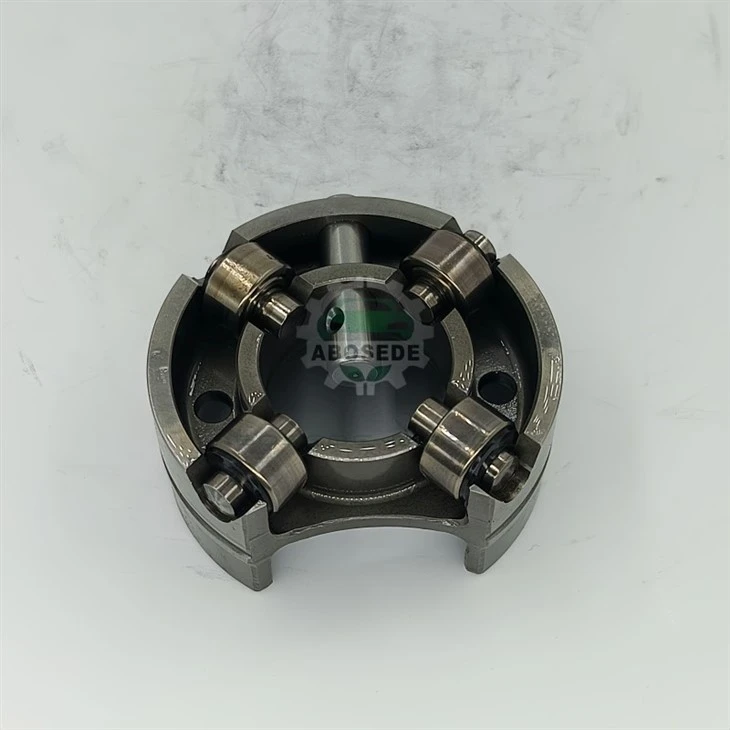

096010-0930 Denso VE Pump Roller Assembly

The 096010-0930 roller assembly is the cam-follower heart of Denso VE distributor pumps, converting the rotating motion of the cam plate into the axial plunger stroke that generates injection pressure. For diesel repair shops rebuilding VE pumps, this four-piece roller kit is the difference between a pump that meters fuel with factory precision and one that delivers inconsistent delivery, hard starts, and smoky exhaust. Once the cam rollers develop flat spots or the internal clearance opens up, no amount of external adjustment will restore proper injection timing. This assembly is the correct replacement for the Nissan TD25TI and related light-duty diesel applications where the pump head relies on the 0920 series architecture.

This Denso roller assembly carries the primary OE number 096010-0930 and is supplied as a matched four-piece set, with each roller manufactured from high-speed steel to withstand the continuous impact loading imposed by the cam plate lobes. The kit cross-references to several OEM and competitor numbers commonly encountered in parts catalogues, including 146210-5720, 1467010535, and the Nissan-specific 16740-84K00. Each roller is ground to a tolerance measured in microns; the clearance between the roller and its bore determines how faithfully the plunger follows the cam profile. When that clearance exceeds specification, the plunger stroke shortens, fuel delivery quantity drops, and the pump begins to behave as though the rack has been de-calibrated. The four-piece configuration ensures that all rollers in a given pump are replaced as a matched set, eliminating the uneven wear patterns that arise when new and used rollers share the same cam plate.

Installing the 096010-0930 requires the pump to be completely disassembled and the cam plate inspected for corresponding wear. A new roller set dropped onto a scored or pitted cam plate will fail prematurely; the hardened cam lobes and the high-speed steel rollers must wear against each other as a matched tribological pair. During reassembly, each roller must be checked for free rotation within its bore and verified for correct axial positioning before the plunger and head are torqued down. The most common installation error in VE pump rebuilds is mixing roller components from different sets or reusing the original retaining hardware with new rollers. The four-piece kit is designed to be installed as a complete unit; partial replacement defeats the purpose of the matched set. After assembly, the pump must be bench-tested for delivery quantity and timing across the full speed and load range before it returns to the vehicle.

Although common rail systems now dominate new diesel platforms, the installed base of VE distributor pumps in light commercial and agricultural applications remains substantial, particularly in regions where the Nissan TD25TI and similar engines continue in daily service. For the independent diesel shop, the 096010-0930 roller assembly represents a high-margin, low-cost component that rescues an otherwise scrap pump core. A pump with worn rollers exhibits a characteristic symptom set: blue or white smoke at idle, power loss under load, poor cold starting, and in severe cases, the engine failing to shut off on the key due to the plunger not returning to its rest position. These symptoms are frequently misdiagnosed as injector faults or electronic governor issues, leading to unnecessary parts replacement. Shops that recognise the cam plate and roller wear pattern can quote a rebuild with confidence, turning a diagnostic dead-end into a profitable repair. For parts distributors, stocking the 096010-0930 alongside the matching cam plate and plunger creates a complete VE pump rebuild kit offering that serves the aging diesel fleet without requiring a full pump exchange.

Q1: Will this roller set fit a Bosch VE pump as well as the Denso unit?
A: No. The 096010-0930 is Denso-specific. Bosch VE rollers have different dimensions and hardness specifications. Cross-fitting will cause rapid cam plate failure.

Q2: Can I replace just one worn roller instead of the full set?
A: Not advised. Mixed wear profiles on a single cam plate produce uneven plunger loading and erratic delivery. The four-piece set exists precisely to avoid this.

Q3: What is the typical service interval for VE pump rollers in commercial use?
A: There is no fixed interval. Contaminated fuel accelerates wear dramatically. Inspect rollers whenever the pump is opened for any reason, and replace if any flat-spotting is visible.

Q4: How do I confirm the pump head is 0920 before ordering?
A: The head number is stamped on the hydraulic head body. The 0920 designation appears alongside the Denso production code. Photograph the stamping and compare before purchase.

Q5: Do you offer wholesale pricing for rebuild shops purchasing multiple sets?
A: Volume tiers are available for qualified accounts. Contact the sales desk with your estimated monthly usage for a quotation.

Q6: What symptoms in the vehicle point to roller wear rather than injector failure?
A: Metal debris in the return banjo fitting is the strongest indicator of internal pump wear. Injector faults rarely produce this symptom.
