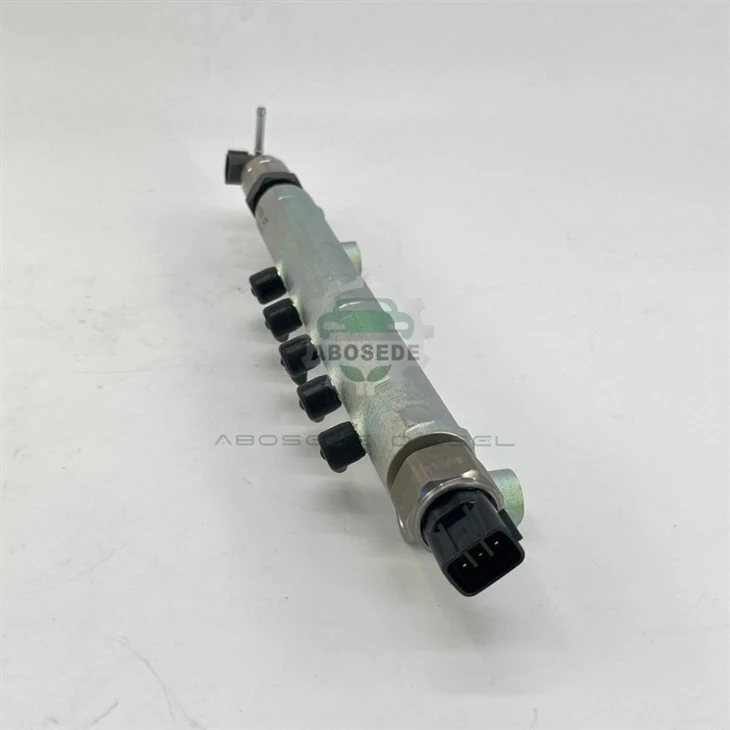

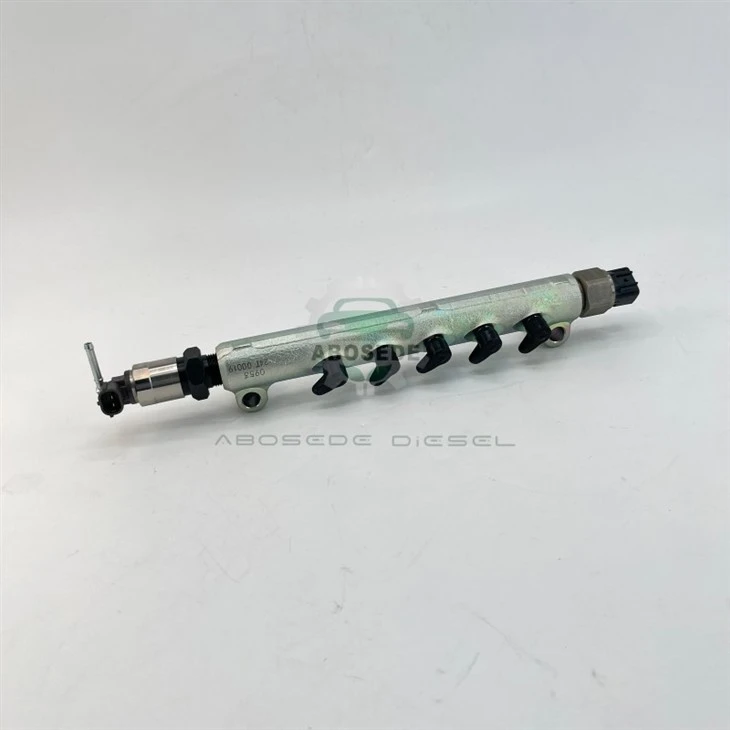

095440-0950 DENSO Common Rail Fuel Rail Assembly

This DENSO rail accumulator (095440-0950, cross-referenced to Toyota 23810-30100 and 23810-0L030) arrives with the pressure sensor already mounted and calibrated at the factory. For a workshop that has spent an afternoon chasing a P0087 only to discover the sensor threads were stripped during a previous repair, that detail matters more than the spec sheet suggests. The rail itself is a forged steel pressure vessel-it does not wear out. What fails is the sensor, the sealing interfaces, or the internal diaphragm that separates fuel from the electronics. This assembly replaces all three in one transaction.

The 23810-30100 rail appears across a surprisingly narrow band of Toyota's D4D lineup, and getting the application wrong is the most common ordering error we see from independent shops. The 1KD-FTV 3.0-litre variant covers Hilux KUN26 from late 2006 through mid-2011, alongside Prado KDJ120 and KDJ125 from August 2006 to July 2009 . The 2KD-FTV 2.5-litre applications split further: KUN15, KUN25, and KUN35 Hilux frames from August 2009 onward, with the KUN25 4x4 FAP variant extending into late 2015 . Hiace vans using the same engine family share the accumulator architecture but not always the sensor calibration-confirm the connector pin count before dispatch. The EURO 4 designation matters for European fleet accounts: post-2011 DPF-equipped Hilux units sometimes carry a revised rail with different inlet geometry, and the 095440-0950 does not interchange with those later revisions without confirming the high-pressure line part number.

Two habits separate a clean rail replacement from a repeat visit. First, never transfer the old pressure sensor onto the new accumulator. The sensor contains a piezoresistive element exposed to years of pressure cycling and thermal load; its output drifts long before it fails outright, and a drifted sensor on a fresh rail will produce injection quantity corrections that look like injector faults . Second, replace the high-pressure lines between the pump and rail, and between rail and injectors. The flare seats cold-work to the original fitting's geometry-reusing them against a new rail creates a micro-leak that will not show as a visible drip but will log a P0093 under load . Torque the rail mounting bolts before snugging the sensor; the sensor body is thin-walled and will crack if pulled against an unsecured rail. After priming, command a rail pressure target versus actual comparison at idle and at 2,500 rpm-deviation beyond ±5 MPa at idle indicates a sensor or regulator issue, not a rail body fault.

A rail pressure sensor alone costs roughly a third of this complete assembly, which tempts shops toward the cheaper part. The math changes when the original rail has accumulated 200,000 km or more. The internal pressure limiter-a tiny spring-loaded valve at the rail's end-fatigues over time and begins cracking open below its rated threshold, bleeding pressure back to the return circuit . No scan tool flags this directly; it manifests as a fuel pressure regulator working harder than its commanded duty cycle suggests. Replacing the sensor on a fatigued rail leaves the limiter as the next failure point, and the customer returns with the same complaint three months later. The complete DENSO accumulator resets both the sensing element and the pressure relief threshold simultaneously. For a fleet account running multiple Hilux units, that single intervention reduces the diagnostic labor hours per vehicle and eliminates the "we fixed it but it came back" conversation entirely.

Q1: My customer's Hilux is a 2012 build with a DPF. Will this rail fit?
A: Check the high-pressure pump outlet fitting first. Late 2011-onward DPF-equipped 1KD engines occasionally used a revised rail inlet angle, and the 095440-0950 may not align with the pump hard line. Match the pump-side line part number before invoicing.

Q2: Can I stock one rail and cover both 1KD and 2KD applications?
A: Yes, with a caveat. The rail body and sensor are common across these engine codes, but the mounting bracket and the high-pressure line connection orientation vary by chassis. Keep one 095440-0950 on the shelf and confirm the bracket part number against the VIN.

Q3: Does the sensor require programming after installation?
A: No. The sensor is factory-calibrated to the rail and reports via the same analog voltage curve as the original. No ECU coding or adaptation reset is required, unlike injector replacement.

Q4: What is the failure rate on these sensors in high-mileage fleets?
A: Sensor drift becomes measurable beyond 150,000 km, typically presenting as a slowly worsening idle quality or a P0087 set during cold starts. The rail body itself rarely fails unless contaminated fuel has scored the pressure limiter seat.

Q5: Do you accept the old rail as a core?
A: Core acceptance depends on the distributor. The rail body has scrap value; the sensor does not. Confirm whether your supplier requires the original unit returned and whether a missing or damaged sensor affects the core credit.
