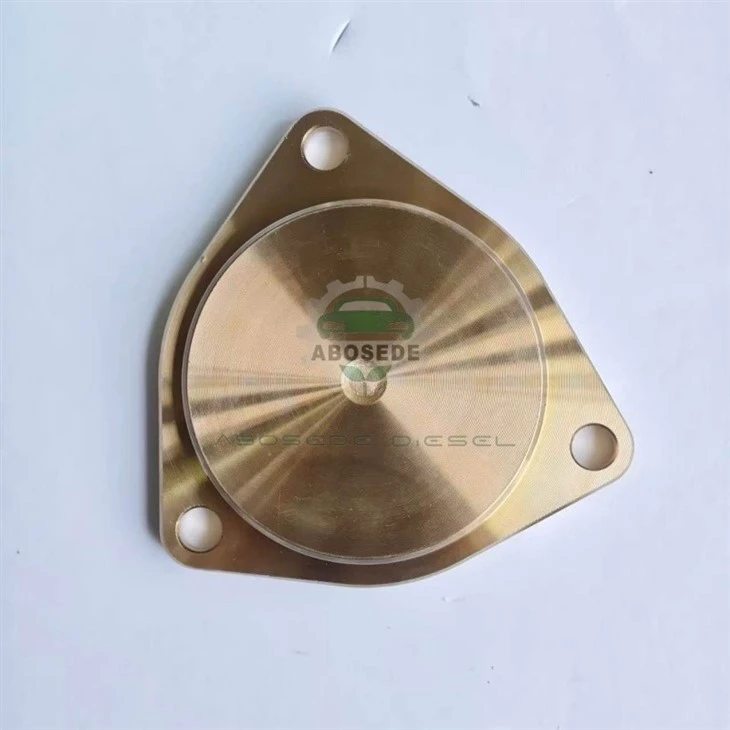

22100-0E020 Pump Cover – Structural Cover For Denso HP3/HP4 High-Pressure Diesel Pumps

22100-0E020 is often listed as a simple cover, but on a Denso HP3 or HP4 high-pressure pump it is a precision structural component. It closes the pump housing, retains the low-pressure fuel chamber, locates the suction control valve bore, and carries the mounting interface for the fuel inlet and return passages. In Toyota 1GD-FTV and 2GD-FTV common rail engines, this cover is machined to tight flatness and bore alignment tolerances. A warped or poorly machined 22100-0E020 pump cover can cause external diesel seepage, low-pressure air ingress, and unstable rail pressure. It is not a cosmetic part.

The 22100-0E020 pump cover performs four functions at once. It seals the low-pressure chamber against external leakage. It provides the machined seat for the suction control valve. It maintains the alignment between the valve bore and the internal fuel passage. It also carries the bolt pattern that clamps the cover to the pump body. Each function depends on a different tolerance. Flatness controls sealing. Bore diameter and roundness control valve fit. Bolt hole position controls clamp load distribution. If any of these drift, the pump may still run, but rail pressure control becomes inconsistent.

The cover seals against the pump body through a gasket or an O-ring, depending on the pump variant. Clamp load must be even across the sealing face. If the cover face is not flat, the gasket cannot compensate. Diesel under low pressure will seep out, and air can enter during cooldown. Air ingress is especially damaging to common rail pumps because it reduces lubrication at the plunger and cam. A 22100-0E020 pump cover with a flatness deviation above specification may pass a static leak test when cold but fail when the pump reaches operating temperature. Always check flatness with a straight edge and feeler gauge before installation.

The suction control valve mounts directly into the 22100-0E020 cover on many Denso HP3/HP4 configurations. The valve bore must be round, clean, and aligned with the internal passage. If the bore is scored or out of round, the valve spool cannot move freely. The ECM will command a duty cycle, but the valve response will lag. That lag appears as rail pressure deviation, especially during acceleration and cold start. A cover with a damaged valve bore cannot be repaired by polishing. Replace the 22100-0E020 pump cover if the bore shows scoring, corrosion, or discoloration from overheating.

The cover is bolted to the pump body, which is heated by the engine and cooled by fuel flow. Over thousands of thermal cycles, the cover can distort if the material or casting quality is poor. Aftermarket 22100-0E020 covers sometimes use lower-grade aluminum or insufficient stress relief. These covers may fit when new but lose clamp load over time. Once clamp load drops, the gasket or O-ring cannot seal. The result is a slow diesel leak that is often misdiagnosed as a failed SCV or a cracked pump body. Always verify material grade and machining finish when sourcing this cover.

Q1: Is 22100-0E020 a fuel pump cover or a suction control valve?
The number is used in the Toyota Denso pump family for the pump cover assembly. It should not be confused with the SCV solenoid valve, which mounts into or near this cover. Always confirm by the pump assembly number.

Q2: Can a warped 22100-0E020 cover cause low rail pressure?
Yes. A warped cover can allow air into the low-pressure circuit. Air reduces pump lubrication and causes unstable rail pressure. It can also cause external diesel leakage.

Q3: Does the pump cover require a gasket or sealant?
It depends on the pump variant. Some covers use a formed gasket or O-ring. Others use a machined metal-to-metal joint. Never substitute silicone sealant for the specified gasket.

Q4: How do I check the valve bore in 22100-0E020?
Inspect for scoring, corrosion, and discoloration. Use a bore gauge if available. The bore must be round and free of steps. A damaged bore cannot be fixed by cleaning.

Q5: Can I reuse the original cover bolts?
Only if the OEM procedure allows it. Some pump cover bolts are torque-to-yield. Reusing them can reduce clamp load and cause leaks. Check the service manual.

Q6: What causes the cover sealing face to corrode?
Water in the fuel, poor fuel quality, and long service intervals. Corrosion pits the sealing face and creates leak paths. Clean fuel and correct filtration extend cover life.
