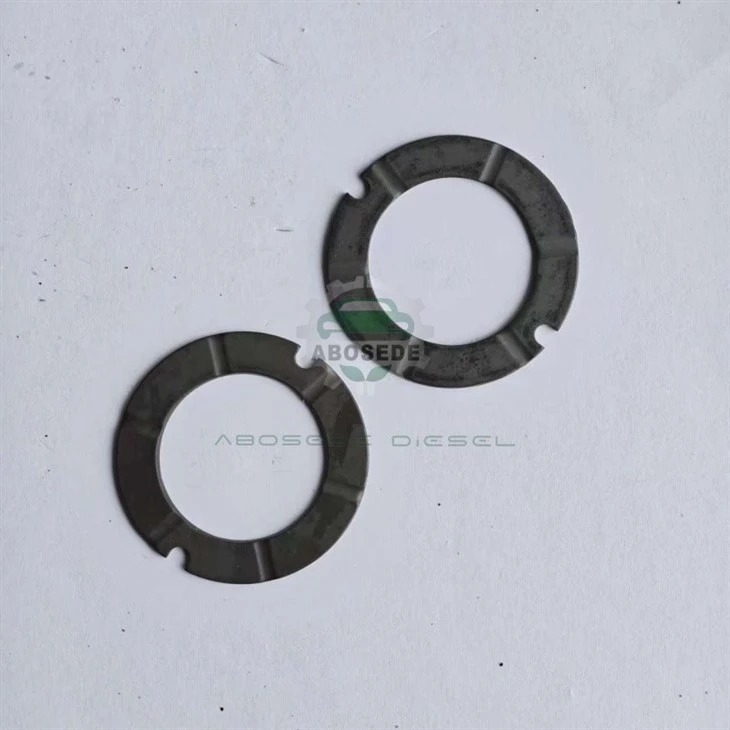

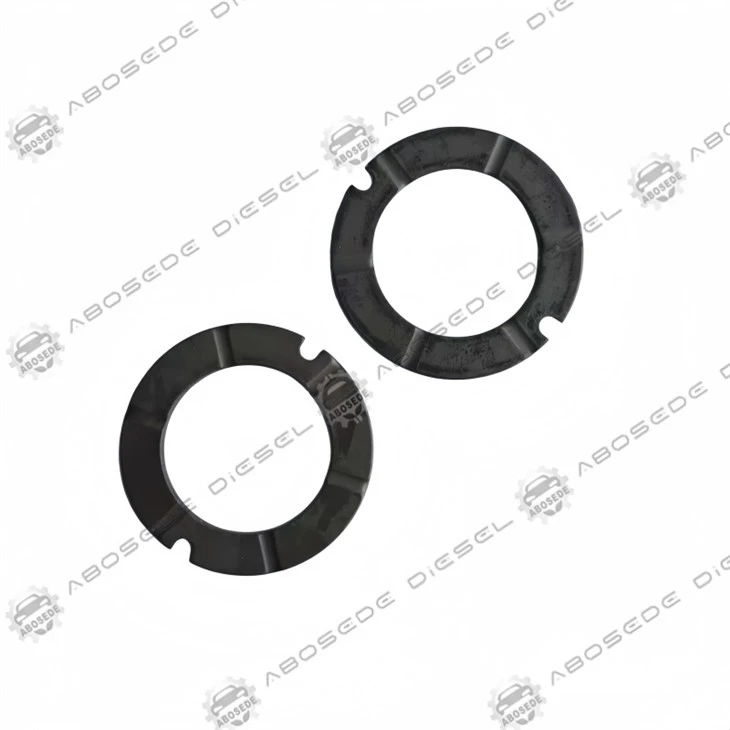

22100-0E020 Gasket – Compression Set, Galvanic Isolation & Clearance Stack-Up in Toyota 1GD/2GD Common Rail Pump Assemblies

The 22100-0E020 gasket is routinely dismissed as a consumable with no engineering content. That assumption is expensive. In a Denso common rail pump for Toyota 1GD-FTV and 2GD-FTV engines, this gasket sits at a joint that must hold low-pressure diesel, resist vibration from the cam drive, and survive thermal cycling between cold start and sustained high load. It is also part of the clearance stack that positions internal components. A gasket that is too thin leaks. One that is too thick changes internal clearances. One made from the wrong material corrodes the mating surface or relaxes within weeks. The gasket is a dimension, a seal, and sometimes an electrical insulator at the same time.

Most people think of a gasket only as a seal. In this pump assembly it also sets axial clearance. The joint it seals separates two machined surfaces whose relative position affects internal running clearance. If the 22100-0E020 gasket compresses more than specified, clearance shrinks and rotating parts may contact. If it compresses less, clearance opens and pressure retention drops. Compressed thickness is therefore a controlled value, not a byproduct. Original gaskets are specified by installed thickness under a defined clamp load, not just by free thickness. Aftermarket gaskets with the same free thickness but a different compression curve will change the clearance stack even though they fit perfectly.

Bolt torque is not the goal. Compressed gasket thickness under that torque is the goal. Two gaskets with identical dimensions can compress differently if their hardness or density differs. A softer gasket compresses further at the same torque, reducing clearance and potentially blocking a passage. A harder gasket compresses less, leaving a gap that low-pressure diesel can seep through. The correct approach is to torque to specification and then verify the joint visually and, where possible, by clearance measurement. Re-torquing after thermal cycling is sometimes specified because the gasket relaxes after the first heat cycle. Skipping that step leaves the joint under-clamped.

Compression set is the permanent deformation a gasket retains after being compressed and released. A gasket with poor compression set does not spring back when clamp load fluctuates. In a pump that vibrates and cycles thermally, clamp load fluctuates constantly. If the 22100-0E020 gasket cannot recover, the joint opens by microns. Low-pressure diesel weeps out, and air enters during cooldown. Air ingress is especially damaging to common rail pumps because diesel is the only lubricant for the plungers and cam. A gasket that looks intact after removal can still be the root cause of long-term aeration. Compression set is not visible. It must be inferred from service history or measured on a new part against specification.

Some pump joints pair an aluminum housing with a steel cover or fitting. In the presence of moisture and road salt, that pairing creates a galvanic couple. The aluminum becomes the anode and corrodes preferentially. A gasket made from an insulating material, or a gasket with an insulating coating, interrupts that couple. A metallic gasket without isolation can accelerate corrosion at the joint edge. This is why material selection for 22100-0E020 is not only about sealing. It is also about electrical continuity across the joint. The wrong gasket can turn a minor seep into a corrosion pit that destroys the mating surface.

Q1: Can I reuse the 22100-0E020 gasket if it looks intact?
No. Compression set is not visible. A gasket that looks fine may have already lost recovery. Reusing it risks low-pressure leakage and air ingress.

Q2: Does gasket thickness affect internal pump clearances?
Yes. Installed thickness is part of the clearance stack. A gasket that compresses more or less than specified changes running clearance and can affect pressure retention.

Q3: Why does the gasket material matter for corrosion?
Dissimilar metal joints can form galvanic couples. An insulating gasket interrupts the couple. A metallic gasket without isolation can accelerate corrosion at the joint edge.

Q4: Is it normal for the gasket to need re-torquing after the first heat cycle?
Some specifications call for it because the gasket relaxes after initial thermal cycling. Follow the OEM procedure. Skipping it can leave the joint under-clamped.

Q5: Can a bad gasket cause air to enter the fuel system?
Yes. If the gasket loses compression set, the joint opens by microns during cooldown. Air enters and aerates the fuel, which reduces lubrication and destabilizes rail pressure.

Q6: What should I check on a new 22100-0E020 gasket before installing it?
Check free thickness at several points, surface condition, material type, and bolt hole alignment. Confirm the gasket matches the pump variant, not just the engine code.
