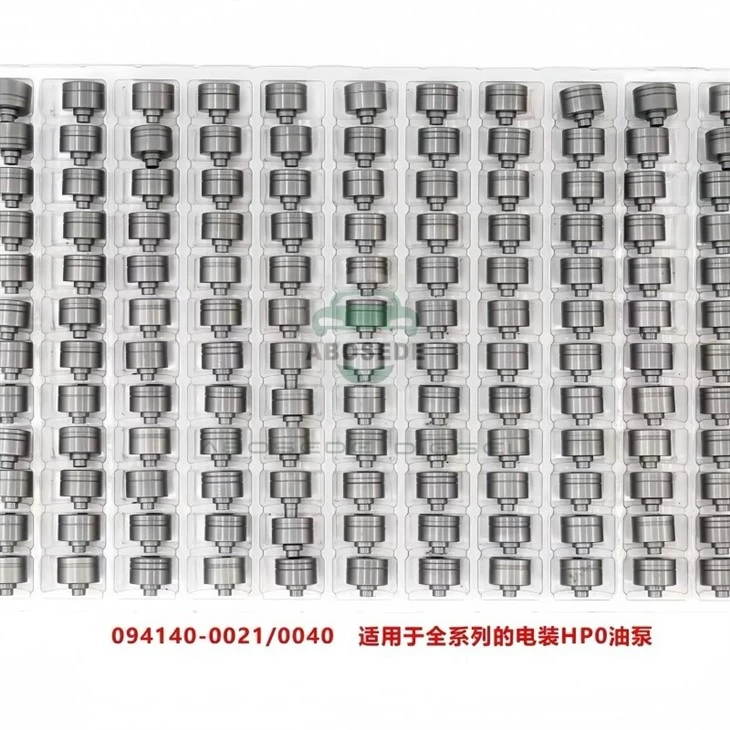

Denso HP0 Plunger & Barrel Kit 094140-0021 – Supply Pump Rebuilding Element

The 094140-0021 plunger and barrel assembly serves as the primary pressurization unit within the Denso HP0 high-pressure fuel pump, a cornerstone of Japanese heavy-duty common rail architectures. This matched element converts mechanical cam lift into hydraulic rail pressure, directly influencing injection timing and atomization quality. Engineered to OEM clearances, the kit addresses volumetric losses from plunger scoring, bore ovality, and surface fatigue accumulated over extended service intervals. Workshops specializing in Hino, Komatsu, and industrial diesel powerplants recognize this part number as the definitive intervention point for pressure instability, extended cranking, and erratic rail behaviour under variable load.

The 094140-0021 element features a plunger diameter of 6.0 mm with a matched barrel bore lapped to a clearance measured in single-digit microns. Surface finish holds below Ra 0.05 μm on the sliding interface, a critical parameter that governs internal leakage and maintains volumetric efficiency across the pump's operating map. Base metallurgy consists of a high-carbon chromium steel, through-hardened to 62–64 HRC, with an additional physical vapour deposition ceramic coating applied exclusively to the plunger driving flank. This coating mitigates adhesive wear during boundary lubrication events, a frequent failure precursor when ultra-low-sulphur diesel lacks sufficient film strength. The barrel incorporates Denso's signature helical intake port geometry, calibrated to the pump's cam phase and PCV modulation strategy. No running-in or post-installation honing is required; the pair ships as a factory-lapped match set.

This plunger set directly fits the full HP0 pump family, covering installations on Hino E13C engines in heavy tractor units and dump trucks, as well as Komatsu PC excavator series and certain Mitsubishi 6-cylinder stationary power units. The same element geometry applies to pump base numbers 094000-0320 and 094000-0421, with no modification to the tappet guide or cam follower required. While the cam peak count varies according to cylinder configuration – 4, 6, or 8 lobes – the plunger stroke profile and barrel port timing remain uniform across all HP0 iterations. For workshop stock management, a single 094140-0021 SKU covers the majority of Japanese HP0 pump overhauls, reducing bin complexity and misorder risk.

Element extraction begins with removal of the pump control valve and tappet guide assembly, exposing the plunger foot seated against the cam roller. The HP0 pump employs an outer cam ring design; the plunger does not rotate, relying solely on axial reciprocation. Prior to inserting the new barrel, flush the housing bore with clean diesel to eliminate lapping debris from the worn set. Apply a light film of high-pressure assembly grease – molybdenum disulphide based – to the plunger skirt to prevent galling during the first start revolutions. Denso service documentation specifies replacement of the delivery valve spring and overflow valve sealing ring concurrently; these components directly affect residual pressure retention after fuel cut-off. Post-assembly, the pump must undergo a test bench run through a full sweep from idle to rated speed, with delivery volume recorded against factory flow curves. A deviation exceeding 12% indicates either improper barrel seating or scoring on the cam follower surface – re-inspect both interfaces before proceeding.

Addressing plunger wear at the diagnostic threshold delivers measurable protection to downstream common rail system components. As the plunger barrel clearance grows, high-pressure fuel bypass increases oil dilution and elevates return-line temperatures. More critically, microscopic steel particles shed from the sliding pair travel through the return circuit, contaminating the fuel cooler, quantity control valve, and ultimately the injector servo galleries. Replacing the 094140-0021 when rail pressure drops by 200 bar or more under full-load acceleration arrests this contamination chain. Operational data from Australian earthmoving fleets indicates that plunger renewal at 8,000 engine hours reduces total fuel system expenditure by approximately 40% relative to a run-to-failure approach. For remanufacturers, the OEM-grade ceramic coating also offers greater tolerance to fuel quality fluctuations encountered across cross-border routes, directly lowering warranty return rates tied to fuel batch variability.

Q1: Can the 094140-0021 be fitted without pulling the HP0 pump off the engine frame?
A: In most truck and excavator layouts, removing the pump top cover and control valve provides sufficient access. However, cab-over designs have restricted clearance above the pump – we advise unbolting the unit and placing it on a clean bench to prevent debris falling into the cam box during tappet extraction.

Q2: Which torque value applies to the barrel retaining nut, and what socket type is needed?
A: Denso bulletin specifies 78 Nm for this fastener. You will require a crows‑foot adaptor on your torque wrench – a standard hex socket cannot clear the adjacent tappet guide. Always fit a fresh copper crush washer beneath the nut head.

Q3: Does the ceramic coating influence our ultrasonic cleaning routine for the pump body?
A: Yes – use neutral-pH alkaline solutions only. Acidic descalers containing hydrochloric or phosphoric acid will attack the ceramic layer and compromise surface hardness. Rinse thoroughly with diesel before assembling the new element.

Q4: We mainly handle European brands – is there an equivalent Bosch part number for this element?
A: No direct Bosch interchange exists. The HP0 plunger stroke, inlet port clocking, and cam lift curve are proprietary to Denso. Installing a non-spec element alters injection timing and commonly triggers rail pressure plausibility faults logged against the PCV.

Q5: What is the practical shelf limit for this kit in non-climate‑controlled stores?
A: With the protective oil film intact and packaging unopened, shelf life stands at 36 months from production date. Beyond that, inspect the plunger surface for micro‑oxidation spots – we recommend FIFO stock rotation for commercial shops.

Q6: Will a standalone element swap cure white smoke on cold starts for Hino E13C?
A: Often yes, when the smoke stems from sub‑200 bar cranking pressure. But first measure the suction control valve coil resistance – a weak magnetic circuit mimics plunger wear symptoms. If coil ohms fall outside 3–5 Ω at 20°C, address that electrical side before condemning the hydraulic element.
