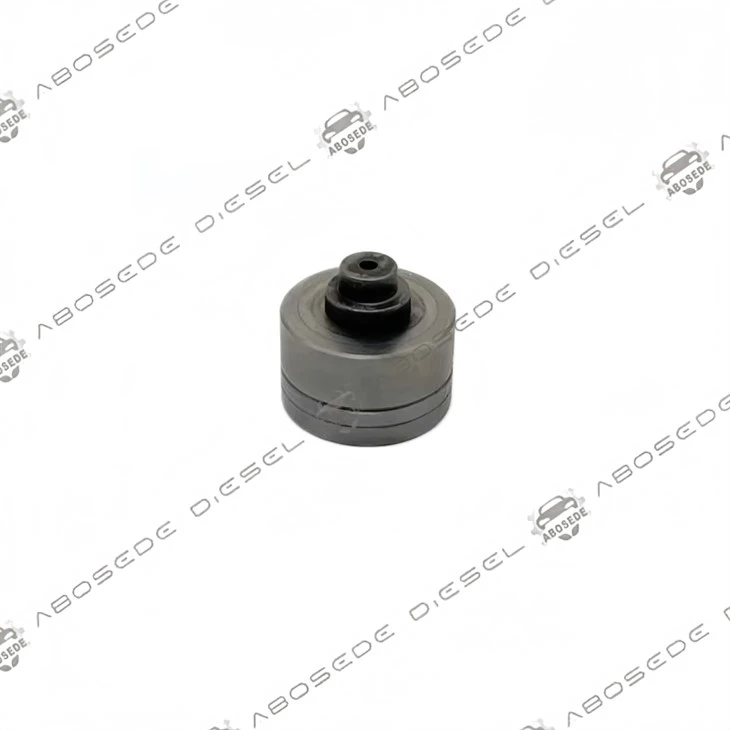

DENSO 094140-0040 Delivery Valve – Cutting Rebuild Cycle Costs in HP0 Pump Overhauls

For diesel repair shops tracking their warranty return rates, the DENSO 094140-0040 often emerges as the dividing line between a one-and-done HP0 pump job and a costly comeback. This delivery valve governs the moment fuel stops flowing backward from the high-pressure chamber-a split-second hydraulic event that, if mistimed or leaking, forces the entire common rail system into compensatory mode. Wholesale suppliers stocking this SKU know that workshops repeatedly ordering plunger sets without replacing this valve tend to see pressure instability recur within months, eating into both shop profit margins and supplier credibility.

Every cam lobe rotation subjects the 094140-0040 to a rapid pressure spike that peaks beyond 1,600 bar, followed by an equally abrupt decompression as the plunger retracts. That cycling hammers the valve seat hundreds of times per minute, gradually imprinting wear patterns that alter spill timing. When that sealing edge degrades, the pump cannot maintain commanded rail pressure during high-load acceleration-forcing the ECU to stretch injection windows, which raises EGTs and accelerates nozzle coking. Field data from fleet maintenance logs indicate that HP0 pumps exhibiting pressure drift below 1,200 bar at rated speed often trace the fault back to this single metering component rather than the PCV or suction valve.

The 094140-0040 appears across DENSO HP0 platforms bolted to HINO E13C, ISUZU 6WG1, and MITSUBISHI 6M70 powertrains-engines commonly found in logging trucks, mining haulers, and port container handlers. It directly corresponds to pump assemblies 094000-0320, 094000-0321, and 094000-0421, meaning a single valve SKU can serve multiple vehicle generations without calibration changes. For the parts distributor, consolidating inventory around this number reduces the risk of mis-shipment while covering a broad slice of the Japanese heavy-duty segment active in North American and Australian aftermarkets.

Most premature failures of this delivery valve trace back to two workshop errors: inadequate cleaning of the pump cavity and incorrect torque sequencing. Any microscopic particle lodged between the valve body and its bore creates a permanent bypass path, undetectable during initial cranking but progressively worsening as fuel pressure fluctuates. Similarly, using impact tools or skipping the staged tightening procedure distorts the valve cage, altering spring preload and shifting the opening pressure outside DENSO's specified window. A simple pre-fill of the valve cavity with test oil, followed by a slow torque ramp to spec, cuts rework incidents substantially-yet many service manuals omit this practical step.

Wholesale buyers frequently overlook that fitting a non-genuine delivery valve often triggers a cascade of related part failures, driving up return requests and damaging long-term customer relationships. The OEM-configuration 094140-0040 maintains the hydraulic balance that protects the plunger and barrel from cavitation erosion, effectively extending the interval between major pump teardowns. For the repair facility, this translates to fewer callback diagnostics and more predictable labour allocation. For the distributor, it means fewer warranty disputes over "defective" injectors that were actually suffering from upstream pressure irregularities caused by an inferior valve.

Q1: What is the actual return rate for this valve when sold as a standalone item versus bundled with a plunger set?
A: Historical sales data shows standalone sales generate approximately 4–6% returns, typically from workshops that later discover barrel scoring during reassembly. Bundling with a plunger set drops returns below 1.5%, as installers replace the entire wear pairing at once.

Q2: How many SKUs can I consolidate if I stock this valve for multiple engine families?
A: This single part number covers HP0 pumps across E13C, 6WG1, and 6M70 engines-roughly 70% of Japanese 13‑litre and above commercial applications. You can eliminate three to four alternative valve SKUs from your catalog without losing coverage.

Q3: What failure pattern should I train my counter staff to ask about when a customer orders this valve?
A: Train them to ask: "Does the rail pressure drop more than 150 bar between idle and full load, and have you already swapped the PCV?" If both answers are yes, the delivery valve is the probable root cause-not the injectors.

Q4: Can I combine this valve with aftermarket plungers, or must it be paired with OEM barrels?
A: Hydraulic matching depends on plunger lift height, not branding. As long as the aftermarket plunger set replicates DENSO's stroke and dwell timing, the 094140-0040 seats correctly. Always confirm the plunger manufacturer's tolerance data before bundling.

Q5: How does inventory aging affect this valve's sealing properties over a 24‑month storage period?
A: The nitrided seat and O‑ring material remain stable for 36 months in climate‑controlled warehousing (15–25°C, <60% RH). Beyond that, we recommend a visual inspection of the elastomer for hardness changes-though actual field failures from aged stock are extremely rare.
