06# Valve Plate – Control Chamber Volume, Seat Flatness & Needle Response in Common Rail Injector Control Valves

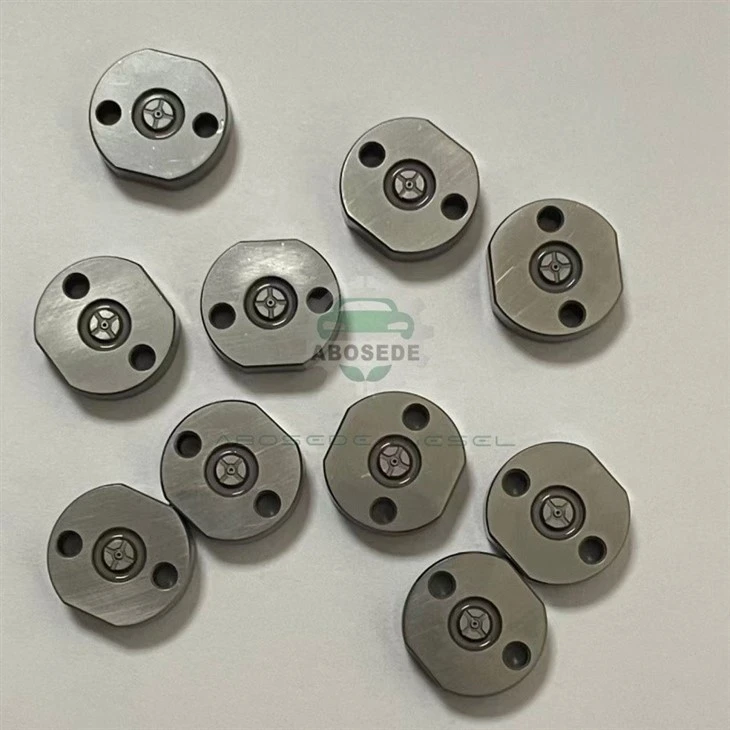

The 06# valve plate is the flat precision element that sits inside a common rail injector control valve assembly. It is often treated as a simple spacer with holes. That reading is wrong. This plate defines the control chamber's boundary, provides the seat for the control valve ball or pintle, and sets the flow path between the control chamber and the low-pressure return. In common rail diesel injectors, needle opening and closing are not driven directly by rail pressure alone. They are driven by the pressure difference between the control chamber above the needle and the nozzle chamber below it. The 06# valve plate shapes that pressure difference. Change its seat flatness, orifice size, or chamber height and the injector's response time changes, even if every other part is correct.

The control chamber is a fixed volume bounded partly by the 06# valve plate. When the control valve opens, fuel leaves that chamber through the plate's outlet orifice. The rate at which chamber pressure falls depends on chamber volume and orifice flow area. A larger chamber takes longer to depressurize, so the needle opens later. A smaller chamber responds faster but is more sensitive to aeration and cavitation. Original 06# plates are dimensioned so the chamber volume matches the injector's calibration. A plate that is thicker or thinner than specification changes that volume. The injector may still run, but injection timing shifts by microseconds. At high engine speed those microseconds become degrees of crank angle, and the result is poor combustion phasing, higher emissions, and torque loss without a clear fault code.

The control valve ball seals against a seat machined into the 06# valve plate. That seat is a narrow annular band, not a wide surface. Sealing depends on the ball contacting the band uniformly around its circumference. If the plate face is not flat, the ball contacts only part of the band. Leakage across the seat then raises control chamber pressure when it should be falling, and the needle closes late. Late needle closing causes over-fueling, black smoke, and higher exhaust temperature. Seat flatness is usually specified in microns across the full face. A plate that passes a visual check can still fail a flatness check. Always verify with a surface plate and a dial indicator, or with an optical flat under monochromatic light.

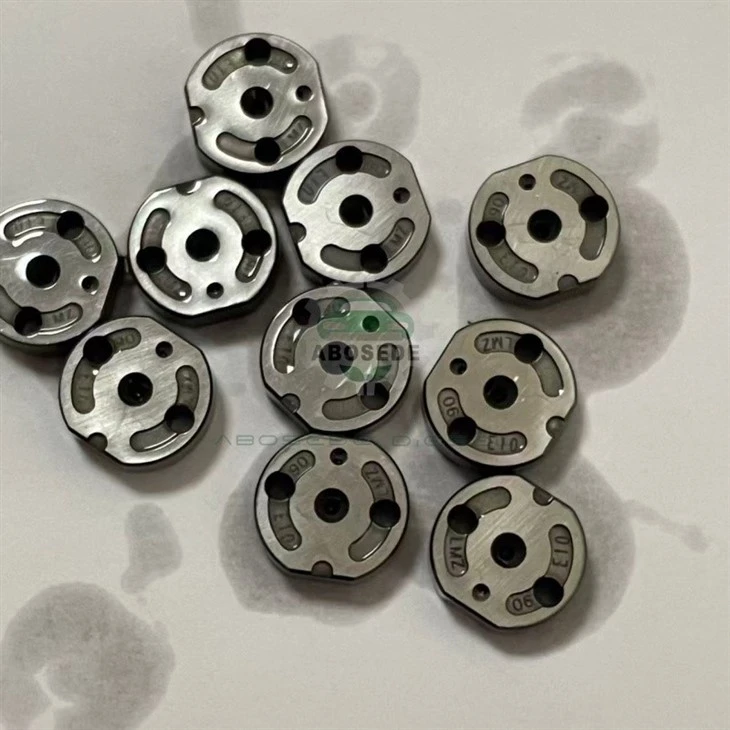

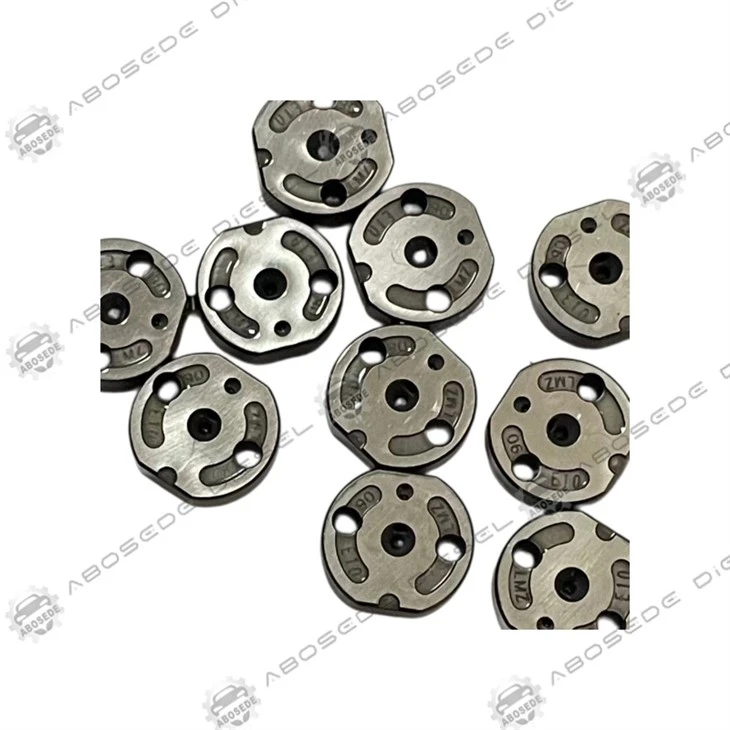

The 06# valve plate contains the inlet and outlet orifices that feed and drain the control chamber. These orifices are tiny, often well under one millimeter. Their flow area is calibrated to the injector's hydraulic response. If an orifice is oversized, the control chamber drains too fast, the needle opens abruptly, and injection rate shape is lost. If it is undersized, the needle opens slowly and injection quantity at short pulse widths drops. Orifice edges also matter. A sharp edge produces a clean vena contracta. A rounded or burred edge changes the discharge coefficient. At high pressure differentials, a poorly finished orifice can cavitate. Cavitation erodes the orifice edge over time, enlarging it and shifting injector behaviour. This is one reason a used 06# plate should never be assumed to be within specification just because it looks intact.

The 06# plate is clamped between the valve body and the injector body. Clamp load must be distributed evenly across its face. If the plate is warped or the bolt pattern applies uneven load, the plate distorts in service. Distortion changes seat flatness and control chamber height at the same time. This is why the plate stack must be assembled clean and dry, with no debris trapped between surfaces. A single particle under the plate creates a high spot, and the seat loses contact on the opposite side. The injector may pass a bench test cold and fail when hot because thermal expansion amplifies the distortion.

Q1: Can a 06# valve plate with correct thickness still change injector timing?
Yes. Control chamber volume, seat flatness, and orifice size all affect response time. Thickness alone does not describe hydraulic behaviour.

Q2: Why does seat flatness matter more than seat width?
Sealing depends on uniform contact around the full circumference. A wide seat that contacts unevenly leaks more than a narrow seat that contacts uniformly.

Q3: What happens if the outlet orifice in the 06# plate is eroded?
The control chamber drains too quickly. The needle opens earlier and more abruptly, injection rate shape changes, and combustion phasing shifts.

Q4: Can I reuse a 06# plate after cleaning?
Only if flatness, thickness, orifice size, and seat condition all measure within specification. Cleaning does not restore an eroded orifice or a worn seat band.

Q5: Why do some injectors pass a cold bench test and fail when hot?
Thermal expansion amplifies plate distortion from uneven clamp load or trapped debris. A plate that seals cold can leak at operating temperature.

Q6: What should I check on a new 06# plate before assembly?
Check seat flatness, orifice condition, plate thickness at several points, and material grade. Confirm the plate matches the injector and control valve variant.
