Denso 096710‑0120 – The SCV That Stabilises Fuel Delivery in Toyota's Denso Common‑Rail System

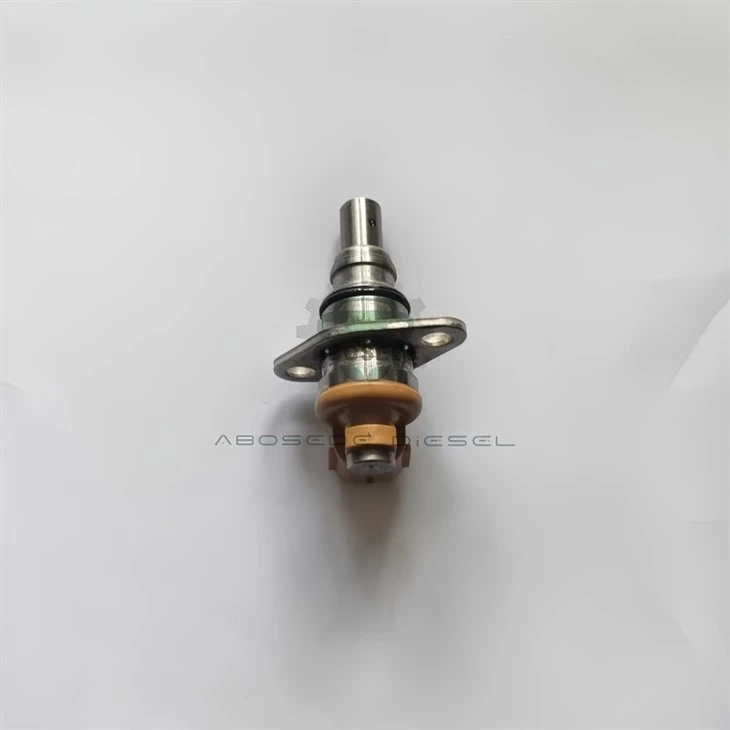

In a Denso common‑rail system, the fuel pressure is controlled by a suction control valve (SCV) mounted on the high‑pressure pump. This valve regulates the amount of fuel that enters the plungers, and its response directly affects the rail pressure stability. The 096710‑0120 is this SCV-a component that is specific to Toyota's Denso systems, and a critical part of the fuel delivery chain. It is not a generic valve; it is calibrated to the Denso pump's flow characteristics and the engine's fuel demand. Its role is to ensure that the rail pressure is stable at all operating conditions, from idle to full load. If the SCV is slow or erratic, the rail pressure fluctuates, and the engine's performance suffers.

The Denso SCV used in the 096710‑0120 is a normally‑open solenoid valve, similar in principle to the Bosch metering valve, but different in execution. The Denso valve uses a different magnetic circuit, a different armature geometry, and a different spring rate. The valve's flow characteristic is matched to the Denso pump's plunger displacement, and the response time is calibrated to the Denso ECU's control algorithm. The 096710‑0120 is a direct replacement for the original SCV, and it is manufactured to the same specifications-the flow curve, the coil resistance, and the response time are matched to the Denso specification.

The SCV is a normally‑open valve, meaning that it allows maximum flow to the plungers when it is de‑energised. When the ECU sends a PWM signal to the valve, the solenoid pulls the armature, restricting the flow to the plungers. The ECU controls the duty cycle of the PWM signal to maintain the rail pressure at the target value. The SCV's response time-the time it takes to open or close-determines how quickly the rail pressure responds to a change in demand. The 096710‑0120 is engineered with a response time of 10‑15 ms, ensuring that the rail pressure is stable during transient conditions. The valve is flow‑tested to ensure that the flow at each duty point matches the Denso specification.

The most common failure in the Denso SCV is a sticking armature-the armature becomes stuck in the closed position, and the engine loses power. The symptom is a loss of rail pressure, a P0087 fault code, and a lack of power. The second most common failure is a degraded coil-the coil resistance drifts, and the valve responds more slowly. The genuine 096710‑0120 uses a coated armature that resists sticking and a high‑temperature coil that resists degradation, ensuring that the valve's response time remains stable over the service life.

Installing the 096710‑0120 is a mechanical procedure-remove the old valve, clean the mounting surface, replace the O‑ring and backup ring, and torque the retaining nut to 24 Nm. However, there is a specific step: reset the SCV adaption values using a diagnostic tool. The ECU stores the adaption values for the old SCV-if they are not reset, the ECU will apply the old corrections to the new valve, causing erratic rail pressure. The adaption reset is a simple procedure that takes only a few seconds, but it is essential for the correct operation of the new valve.

Q1: How can I tell if my SCV is failing without removing it?
→ Monitor the rail pressure with a diagnostic tool-if the pressure fluctuates or drops at idle, the SCV may be failing. Also, check for a P0087 (fuel pressure low) code-this is often caused by a failing SCV.

Q2: Can I use the 096710‑0120 on a Toyota Avensis that originally used a different SCV?
→ The 096710‑0120 is a direct replacement for the original SCV in many Toyota models-but always verify the number on your existing valve. The Denso system uses specific SCVs for different pump revisions.

Q3: Why does my engine have a loss of power only at high rpm?
→ This is often caused by a SCV that is slow to open-at high rpm, the plungers need a higher flow, and a slow valve cannot keep up. The 096710‑0120 is designed with a fast response time to prevent this.

Q4: What is the most common cause of SCV failure in the Denso system?
→ Contamination-the valve is exposed to the fuel, and any debris can cause the armature to stick. The 096710‑0120 uses a coated armature that resists sticking, but regular fuel filter changes are the most effective prevention.

Q5: I replaced the valve but the engine still has a loss of power-is the valve defective?
→ Check the fuel filter-a blocked filter can cause a loss of power that is not the valve's fault. Also, check the low‑pressure pump-a weak pump can cause a loss of pressure at high rpm.

Q6: Does the SCV need to be coded to the ECU?
→ The Denso system does not require coding for the SCV-the ECU uses the feedback from the rail pressure sensor to control the valve. However, the adaption values must be reset after installation to ensure correct operation.
