Denso Injector Overhaul Kit 095000-7670 / 23670-09280 | Workshop-Grade Common Rail Restoration

This overhaul consumable set directly corresponds to Denso injector assembly 095000-7670 and the OEM housing number 23670-09280, serving as the definitive mechanical refresh solution for Toyota's second-generation common rail direct injection systems. Rather than pursuing expensive outright replacement, this kit equips professional diesel service centers with all wear-prone interfacial seals, pressure-retaining rings, and nozzle fastening hardware necessary to reverse performance degradation caused by prolonged thermal cycling and fuel-bound abrasive particulates. Every constituent element adheres to the metallurgical and elastomeric specifications that governed the original factory build, ensuring that post-service flow linearity and pilot injection stability remain entirely within ECU-adaptable tolerances.

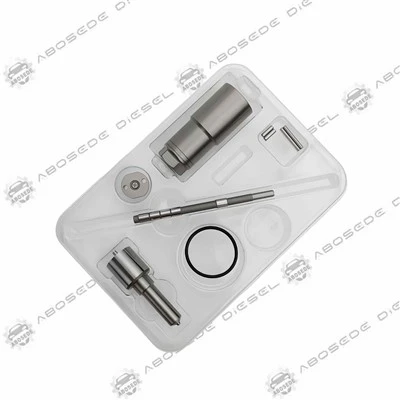

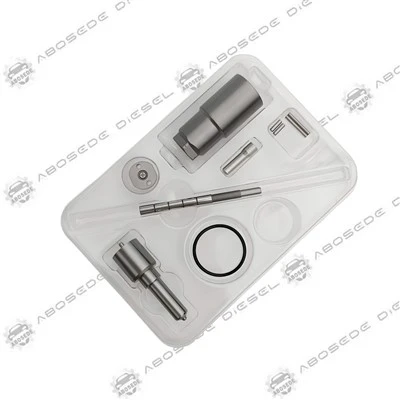

Precision engineering distinguishes this offering from generic aftermarket seal bundles. The kit encapsulates the command piston upper seal, fabricated from a hydrogenated nitrile butadiene rubber compound rated for continuous exposure to diesel fuel at temperatures reaching 130°C, alongside the sacrificial copper compression ring that forms the primary combustion gas barrier at the injector sleeve interface. Critically, the package includes the needle guide bushing and the retaining nut, which must withstand cyclical clamping loads exceeding 180 Nm during the tightening sequence. The internal calibration spacer is supplied with a factory-stamped thickness grading, directly influencing the injector's opening pressure threshold-a variable that directly affects the start-of-delivery angle. These components collectively preserve the hydraulic balance within the injector body, preventing erratic pressure wave reflections that commonly produce secondary injection anomalies in high-mileage D-4D powerplants.

This service kit finds its primary utility across the Toyota 1AD-FTV and 2AD-FTV four-cylinder diesel blocks, which underpin a substantial portion of the European and Australasian light-duty commercial fleet. Specifically, the repair consumable accommodates injector positions within the Toyota Avensis (T270 generation) , the Auris (E150 chassis) , and the Verso (AR10 series) -model lines notorious for exhibiting fuel dilution of the engine lubricant when the internal spill valve seal degrades. Cross-referencing against Denso service code DCRI107670 confirms identical hydraulic circuitry to variants such as 095000-6410 and 095000-7310, granting workshops the flexibility to consolidate inventory across multiple vehicle references. For the parts wholesaler, this compatibility breadth reduces SKU fragmentation while addressing a high-turnover failure node-specifically, the gradual loss of needle lift precision that manifests as audible knocking under cold-start enrichment strategies.

Successful deployment of this overhaul set imposes rigorous workshop discipline that extends beyond simple component swapping. Prior to seating the new nozzle clamping nut, technicians must inspect the injector body's conical seating face for microscopic pitting induced by combustion blow-by-a condition that immediately compromises the new copper washer's deformation characteristics. The tightening protocol mandates a staged angle-torque application: an initial 35 Nm seating torque followed by a 90-degree rotational advance, executed with a dial-type angle gauge rather than impact tools, to ensure even load distribution across the thread flanks. Furthermore, the spill port O-ring installation demands lubrication with dedicated assembly paste to prevent elastomer shearing during insertion into the cylinder head bore. Following mechanical reassembly, the service procedure requires a passive leak-off test conducted at idle to quantify return fuel volume against Denso's published maximum threshold of 40 mL per minute, verifying the integrity of the internal control piston seal before engine load application.

The operational calculus for independent repair garages weighs the capital outlay of this parts kit against the downstream consequences of neglected injector deterioration. A degraded needle-and-nozzle assembly directly elevates particulate matter emissions and accelerates diesel particulate filter ash loading, incurring ancillary regeneration costs that quickly eclipse the expense of a timely overhaul. By deploying this kit, service providers restore spray pattern integrity-returning the Sauter mean diameter of the fuel droplets to within 10% of original specifications-which translates to tangible improvements in thermal efficiency and crankshaft power delivery. From a commercial standpoint, offering a rebuild service on the 095000-7670 platform allows the workshop to bypass the inflated core charges and waiting periods associated with remanufactured exchange programs. This approach also grants the technician absolute traceability over the internal components used, a decisive advantage when diagnosing post-repair deviations without the ambiguity of third-party reconditioned goods.

Q1: How can I definitively confirm that my shop inventory includes the correct Denso injector variant for this kit?
A: Extract the 10-digit alphanumeric sequence laser-engraved on the injector solenoids upper collar. The primary validation markers are 095000-7670 and 23670-09280. Additionally, inspect the electrical connector orientation-this variant features a lateral locking tab configuration specific to the 1AD-FTV generation, distinguishing it from the earlier 095000-5300 series, which employs a different pilot valve geometry.

Q2: Does the overhaul procedure address the common issue of increased engine oil viscosity caused by fuel wash?
A: Indirectly, yes. The internal spill valve seal included in this kit is the root source of the fuel migration path into the lubrication circuit. Replacing this elastomer eliminates the primary leakage route, though any existing oil dilution must be rectified through a complete oil and filter change post-rebuild, as the degraded lubricant will have lost its shear-stability properties.

Q3: What diagnostic indicators should trigger my service team to recommend this parts kit rather than a complete injector replacement?
A: When the piezo-resistive pressure sensor readings at the fuel rail show stable supply pressure but the cylinder balance feedback from the crankshaft speed sensor indicates negative torque contribution from a specific cylinder-combined with a visual wetness around the injector body-the fault lies in the hydraulic seal pack rather than the actuator coil. This profile points conclusively to the seal kit as the cost-effective intervention point.

Q4: Are there any modifications required to the engine control software after installing this rebuild package?
A: The calibration adaptation is not mandatory for basic engine operation; however, we strongly advise executing the fuel trim reset procedure via the OEM diagnostic system. This step recalibrates the short-term injector correction factors. While the kit restores mechanical geometry, the ECU's learned offsets from the worn unit will initially overcompensate, causing transient roughness for the first 50 kilometers if not cleared.

Q5: What is the typical workshop time allocation for performing this overhaul on a 2AD-FTV engine?
A: Allocating 1.8 to 2.2 labor hours covers removal from the cylinder head, disassembly on a clean bench, ultrasonic cleaning of the injector body, kit installation, and the mandatory leak-off test validation. This timeline assumes the workshop possesses the dedicated Denso puller tool for extracting the injector without damaging the aluminum cylinder head threads, which adds significant delay if unavailable.

Q6: How does the durability of the elastomers in this kit compare to the original factory-installed seals?
A: The supplied PTFE-encapsulated seals are manufactured to the same Shore hardness scale and swell-index specifications as the Denso original equipment. Provided the engine's fuel filtration system is maintained to a 2-micron absolute rating, and the injector clamping force is verified at each service interval, the overhauled injector will achieve a service life comparable to the factory build, often exceeding 160,000 miles before the next intervention cycle.
