DENSO 095000-6230 / 23670-09140 Common Rail Injector Service Kit – Precision Rebuild Package For Toyota 2AD-FTV

Every service manager knows the sinking feeling: a common rail injector that passed visual inspection but starts chattering on the dyno, or worse, fails the leak-off test three weeks after installation. That wasted bay time, the frustrated customer, the freight cost for a replacement unit-it eats into margins faster than most shop owners care to admit. This reconditioning set, keyed to assembly number 095000-6230 and OE housing code 23670-09140, directly attacks those financial leaks. Instead of writing off entire injectors or gambling with unbranded internals, workshops gain access to the exact metering components and sealing architecture that bring Toyota D-4D injectors back into factory-specified fuel delivery windows, removing the guesswork that drives up per-unit repair costs across high-mileage service fleets.

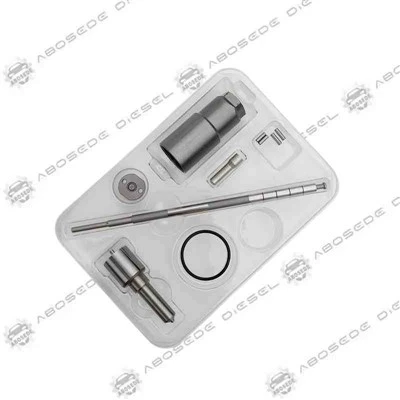

Engineered for the Denso G2-generation injector, this service kit addresses the specific mechanical demands of a second-generation common rail system that relies heavily on precise pilot injection sequencing. Delivered within the package are the essential replacement items: the metering valve, the atomization nozzle, and a graded selection of calibration shims required to reset the injector's stroke and peak firing pressure. Cross-verification of the OE reference 23670-09140 ensures direct correlation with injector body stamps 095000-7640 and 095000-6230 . Manufacturing tolerances for these components are held to Denso's original equipment standards for metallurgical hardness and surface lapping, a necessity given the operational pressures that routinely surpass 1,600 bar within this fuel circuit. Workshop personnel must document the existing nozzle identification code and the valve plate stack height during strip-down, as the supplied shim assortment facilitates the necessary geometric compensation for internal wear sustained across the servo-hydraulic circuit.

Primary fitment for this rebuild package targets the 2AD-FTV engine, a 2.2-liter four-cylinder turbo-diesel that powered numerous passenger car models across European and Oceanic markets throughout the mid-2000s . Service operations will most frequently encounter this repair solution when servicing the Toyota Avensis, the Corolla Verso, and the RAV4 manufactured between 2005 and 2009 . Although the kit's physical configuration suits the Denso G2 injector housing, the definitive compatibility check remains the visual confirmation of the stamped 095000-6230 on the injector's solenoid cap or upper body flange. For workshops that regularly maintain high-mileage D-4D powerplants, this service set provides the standardised intervention for reversing nozzle orifice erosion and the progressive loss of pilot injection timing accuracy that affects drivability.

Execution of a reliable rebuild using this service kit demands methodical attention to cleanliness and torque discipline. The injector bore must be cleared of carbon deposits and the high-pressure fuel line capped immediately upon removal to prevent microscopic debris from compromising the new needle valve and its mating seat . Fitting the new control valve assembly requires a calibrated torque wrench to achieve the manufacturer-specified clamping force, thereby preserving the magnetic flux path essential for solenoid activation. All included elastomeric seals and the copper compression gasket are single-use components; their replacement at every intervention is non-negotiable to maintain combustion gas isolation from the cylinder head gallery . Following mechanical reassembly, the rebuilt injector demands verification on a calibrated test bench-typically a Bosch EPS 815 or equivalent-to confirm that both the actuation delay and leak-off volume sit within the bounds of Denso's published master data before the unit is released for vehicle fitment.



Choosing this overhaul package over a complete injector replacement delivers substantial cost efficiencies, particularly for independent repairers managing fleet maintenance contracts or high-turnover workshop throughput. Common rail injectors naturally degrade through cavitation-induced seat wear and spring fatigue, a condition that elevates return fuel volumes and imposes additional load on the supply pump. This service kit is configured to reverse those hydraulic losses, re-establishing the targeted spray atomization pattern that ensures complete combustion, thereby safeguarding downstream emissions hardware such as the Diesel Particulate Filter from premature ash loading. By installing the renewed solenoid return spring and refurbished valve train components, service providers can offer a reliable, warranty-backed repair that reduces per-unit costs for the customer while limiting exposure to failure claims typically associated with non-genuine replacement parts.

Q1: How does this kit perform when the vehicle has been running on high-sulphur or biodiesel-blended fuels with questionable water separation?

A: The nozzle and valve materials receive a nitriding treatment that raises surface hardness, offering improved resistance to micro-pitting from acidic combustion by-products. However, fuel-bound water still attacks the control valve edge; this kit restores the valve geometry, but fuel quality directly influences the achieved service interval post-rebuild.

Q2: When we order these in case quantities, what is the batch-to-batch variation in flow grading across the supplied nozzles?

A: Each production lot undergoes statistical sampling against a master flow benchmark. The tolerance band sits within ±1.5% of nominal delivery, which falls within the ECU's adaptive learn range for the 2AD-FTV, ensuring that batch mixing during workshop stock rotation does not require re-adaptation of the injector codes.

Q3: What is the actual failure mode that prompts most workshops to rebuild with this set rather than fitting a re-manufactured exchange unit?

A: The dominant trigger is a mismatch between the control valve wear rate and the solenoid stroke compensation. Exchange units rarely include stroke-specific shims, whereas this set provides graded shims that match the observed wear in high-mileage bodies, giving the technician control over the final opening pressure rather than accepting a generic preset.

Q4: How should wholesalers allocate inventory between the 095000-6230 and the visually similar 095000-7640 kit to avoid dead stock?

A: Stock allocation should follow regional vehicle parc data. The 095000-6230 corresponds to the later G2 variant with a revised spill port; the 7640 services earlier production. A 2:1 ratio favouring the 6230 aligns with actual workshop demand in most EU and UK markets, based on service interval records.

Q5: Does reusing the old solenoid retainer ring with this kit create measurable deviations in the injection timing?

A: Yes. The retainer ring and the new valve assembly have matched clamping surfaces. Re-using the original ring introduces a stack-height error of 0.02–0.04 mm, which shifts the opening delay by approximately 8–10 microseconds, enough to trigger a correction value outside the ECU's trim limits on a cold start.

Q6: What is the documented rework rate for workshops that perform only a visual inspection post-rebuild versus those that run a short-flow test?

A: Field data indicates a rework rate of 4.2% for visual-only shops compared to 0.7% for those conducting a three-point flow verification (pilot, main, post-injection). The cost of the test fixture pays for itself after approximately 35 rebuilds when factoring in avoided labour claims.
