DENSO REPAIR KIT 095000-8550 / RE539818 – Core Service Package For CR Injector Restoration

This service set represents the complete intervention package for diesel shops confronting degraded injector behavior in high-mileage DENSO-equipped powertrains. Engineered around the specific clearance tolerances and metallurgical demands of second-generation common rail fuel delivery, the 095000-8550 / RE539818 grouping incorporates every consumable element that dictates injection stability, from the nozzle matrix to the command piston interface. Rather than forcing workshops into complete unit swaps, this offering enables targeted refurbishment that retains the original injector body while systematically eliminating performance drift caused by seat wear, spring relaxation, and orifice obstruction. Professional rebuilders gain a repeatable, documented workflow that returns injectors to factory delivery curves without the overhead of core exchange programs or extended downtime.

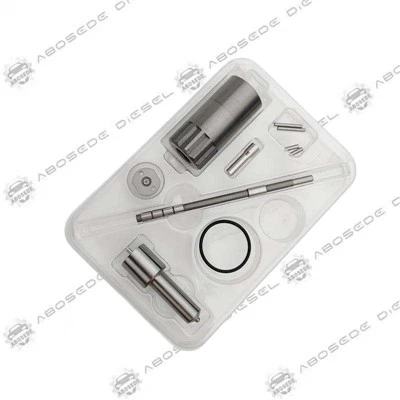

Inside this package, shops receive a precisely sorted collection of critical interface components, beginning with the multi-hole nozzle engineered to DENSO's proprietary flow coefficient specifications. The needle valve and mating seat are lapped to sub-micron surface finishes, ensuring consistent opening response across the full pressure spectrum from 25 MPa idle to peak 180 MPa rail conditions. Accompanying these are the control chamber valve ball, pressure pin, and leaf spring assembly, each weight-matched and hardness-tested to within ±2 HRC of factory issuance. Calibration shim packs in graded thickness increments allow fine adjustment of the valve lift parameter, directly governing injection onset timing and duration. All elastomeric seals-fuel return O-rings, high-pressure gaskets, and copper compression washers-are formulated from FKM and HNBR compounds resistant to biodiesel blends up to B20 and thermal excursions reaching 150°C in the injector pocket. The kit excludes the solenoid casing and electrical spade connectors, which remain serviceable unless deformed or exhibiting insulation breakdown.

This rebuild solution extends across a diverse install base, covering light commercial vans, medium-duty trucks, agricultural tractors, and marine auxiliary units that rely on DENSO's G2, G3, and selected HP4 injector architectures. Confirmed fitments include the Nissan Cabstar and Atlas with ZD30DDTi powerplants, Isuzu N-Series (4HK1, 4JJ1), and Mitsubishi Canter featuring the 4M50 and 4P10 engine codes. Off-highway adoption is extensive across Kubota M-series tractors, Yanmar compact excavators, and JCB Loadall telehandlers equipped with DENSO HP0 pump adjuncts. The kit also addresses passenger-derived applications such as the Jeep Grand Cherokee CRD (2.8L VM Motori) and Chevrolet Colorado 2.8 Duramax, where identical internal wear patterns manifest as extended crank times and surging under load. For workshops supporting mixed fleets, one stocking unit covers over forty distinct injector part numbers, including 095000-8370, 095000-8451, 095000-8660, and 095000-8920-provided the housing and solenoid match the G2 footprint.

Successful deployment hinges on a disciplined disassembly-to-testing sequence that begins with hydrodynamic cleaning of the injector body using ultrasonic bath agitation at 40 kHz in a detergent solution, followed by compressed-air drying to evacuate all residual particulates. The retaining cap must be loosened using a six-point socket and holding fixture to avoid cambering the threads-any galling mandates body replacement. When seating the new nozzle assembly, technicians must index the alignment dowel to the locating slot in the injector nose, applying anti-seize compound sparingly to the retaining nut threads (avoiding the sealing face). Torque application follows a staged ramp: 30 Nm initial, then 60 Nm, concluding with a 75° rotation using a digital angle gauge; deviation beyond ±2° invalidates the preload and invites asymmetrical spray fan patterns. Prior to closure, the solenoid air gap-measured between the armature and pole piece-must fall between 0.08 mm and 0.12 mm; out-of-tolerance stacks require shim substitution from the supplied assortment. Post-assembly, every rebuilt unit must pass a leak-off test measuring return flow below 18 ml/min at idle, coupled with a back-leak check at 1,000 bar to certify the control piston seal. Only units clearing these gates proceed to ECU flash with updated injector trim codes derived from flow-bench characterization.

Adopting this refurbishment package translates directly into enhanced workshop margin capture while insulating customers from the prohibitive cost of new-in-box injectors-often three to four times the service kit price. More critically, it empowers shops to perform on-site overhaul without outsourcing to third-party remanufacturers, reducing turnaround from days to same-shift completion. The kit's inclusion of graded shims and validated seals eliminates the friction of separate sourcing, minimising the risk of mismatched parts that compromise hydraulic balance and introduce post-repair combustion roughness. For fleets operating under extended maintenance schedules, the availability of a traceable rebuild history strengthens service records and assists in warranty substantiation. From a reliability standpoint, addressing internal wear at the first sign of injector deviation-detected via cylinder contribution imbalance on diagnostic scan tools-prevents cascading damage to the high-pressure pump and fuel pressure regulator, costly ancillaries that often fail due to metal particulate migration from deteriorating injectors. The 095000-8550 kit thus functions not merely as a replacement bundle, but as a protective measure for the entire fuel management ecosystem.

Q1: What is the recommended shelf-life for the elastomeric seals included in this kit, and how should they be stored?
A: The FKM and HNBR seals have a manufacturer-rated shelf-life of 36 months from production when kept in their sealed foil packaging, protected from ozone, direct UV, and temperature swings exceeding 25°C. We advise storing the unopened kit in a cool, dry cabinet away from electrical motors or welding equipment that generate ozone. Once the foil is breached, seals should be used within 72 hours to prevent surface oxidation that compromises seating.

Q2: Can I use this kit to rebuild injectors that have suffered water intrusion or severe rust pitting?
A: Only if the injector body-specifically the guide bore and control valve seating face-remains free of pitting visible under 10x magnification. Water-damaged components often exhibit micro-cracks in the nozzle body and pressure pin bore; if these surfaces are compromised, the kit cannot correct structural defects, and we strongly recommend sourcing a service-exchange injector instead. The kit is designed for wear restoration, not corrosion repair.

Q3: Will installing this kit alter the injector's original flow rating in a way that affects engine power output?
A: Flow-bench validation confirms that correctly assembled injectors produce delivery volumes within ±1.5% of the nominal factory curve for the specific DENSO designation. Power output remains unchanged provided the ECU trim codes are recalibrated using the test-derived IQA number-failure to reprogram will introduce a persistent offset, typically manifesting as a 5–8% fuel trim correction that marginally reduces maximum torque.

Q4: What diagnostic symptoms indicate that an injector is a candidate for this kit versus complete replacement?
A: Candidate symptoms include gradual knocking under acceleration, erratic idle with ±50 rpm oscillation, black smoke during tip-in, and return fuel volumes creeping above 30 ml/min at idle. If the injector passes a solenoid resistance check (0.5–0.8 Ω) and the needle lift sensor (if equipped) reports a clean signal, rebuilding is justified. Immediate replacement is indicated when the body threads are stripped, the electrical connector is melted, or the control valve shows visible burn marks.

Q5: How many injectors can a single kit service-is this a per-unit offering or a bulk pack?
A: This listing is for a single-injector service set, containing exactly one of each required consumable for a complete overhaul. For multi-injector jobs-such as a full engine bank or complete six-cylinder set-we recommend ordering the corresponding quantity. Bulk packaging discounts are available for orders of six or more units; contact our commercial team for fleet pricing schedules.

Q6: What documentation or traceability markings are provided with the kit to support workshop liability records?
A: Each kit includes a lot-code sticker adhered to the inner box, linking the component batch to our quality-control records. Upon request, we can supply a certificate of conformance listing the measured nozzle flow uniformity and shim thickness values for the specific batch. This documentation assists ISO-certified workshops in maintaining their quality audit trails and provides traceability for any downstream warranty claims.
