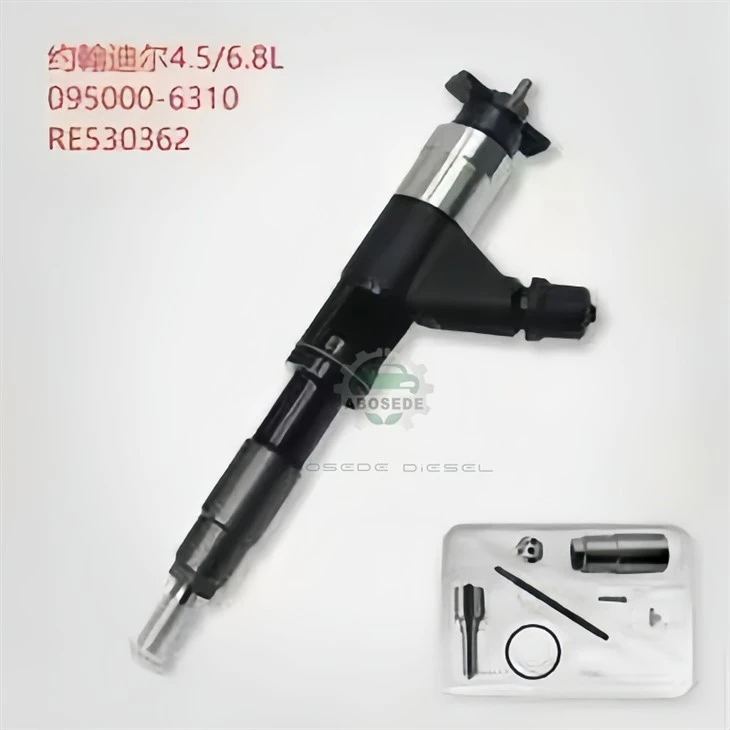

DENSO 095000-6310 (RE530362) – Heavy-Duty Common Rail Injector For John Deere 4.5L & 6.8L Power Units

The DENSO 095000-6310 injector, carrying the critical OE cross-reference RE530362, is a high-precision solenoid-actuated unit engineered specifically for the G2 common rail platform deployed across John Deere's 4045 and 6068 engine families. Operating at system pressures reaching 1,800 bar (26,100 psi), this injector governs the microsecond-accurate fuel metering that determines combustion efficiency in earthmoving equipment, agricultural tractors, and gensets operating across Africa and Southeast Asia's demanding job sites . For workshop operators and parts wholesalers servicing these regions, the availability of a professional-grade DENSO repair kit for this model is essential to restoring hydraulic performance to OEM flow specifications without the premium cost of outright replacement.



The operational reliability of the DENSO 095000-6310 hinges on its internal clearances, measured in microns. This injector utilizes a servo-hydraulic circuit where the control valve unit and command piston modulate pressure differentials in the control chamber. The solenoid coil, a key electrical component, must maintain a resistance typically within 0.5–0.7 Ω to ensure correct injection timing response. A defining feature of this generation is the application of DLC (Diamond-Like Carbon) coating to specific wear surfaces-namely the actuating armature at the top and the nozzle needle at the tip . This coating delivers up to five times the hardness of hardened tool steel while reducing friction by approximately 50%, offering improved tolerance to fuel contamination and extending service life in regions where fuel quality may be inconsistent . The repair kit, when specified, must include components that match the original G2 platform tolerances for nozzle opening pressure and return leakage parameters.



This injector variant, identified by part number 095000-6310 and OE numbers including RE530362, RE531209, and RE546784, is extensively deployed across John Deere's 4.5L (4045) and 6.8L (6068) common rail architectures . The compatibility list spans critical machinery categories vital to infrastructure and agriculture:

Tractors (6-Series to 7-Series): 6100D, 6110D, 6125M, 6140M, 6155M, 6170M, 6195M, 6230, 6330, 6430, 6534, 6830, 6930, 7130, 7330, 7430 .

Excavators: 160DLC, 160GLC, 180GLC, 200DLC, 210G, 210GLC, E140LC .

Loaders & Dozers: 444K, 524K, 544K, 650J, 750J-II, 710J backhoe loaders .

Combine Harvesters and Sprayers: 1450, 1470, C230, R230, 4630, R4023 sprayers .

This extensive coverage makes the 095000-6310 a high-turnover stocking unit for suppliers supporting John Deere equipment fleets.



Successful reinstallation of the DENSO 095000-6310 demands strict adherence to cleanroom-level procedures. The nozzle retaining nut requires precise torque application, with a maximum limit of 150 Nm to prevent shearing the locating dowels that align the nozzle feed hole to the injector body . Force must be applied exclusively to the clamp during installation; applying pressure to the solenoid housing can distort the armature and cause injection deviations. A critical electronic step involves recording the QR code on the injector body before insertion. This alphanumeric correction code must be input into the engine's ECU via diagnostic software-this aligns the injector drive pulse duration (ID code) with the specific cylinder, preventing misfires and ensuring uniform power output across all cylinders.

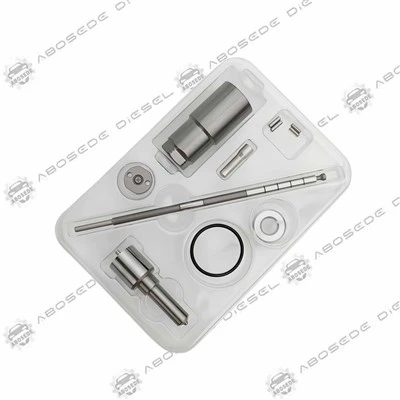

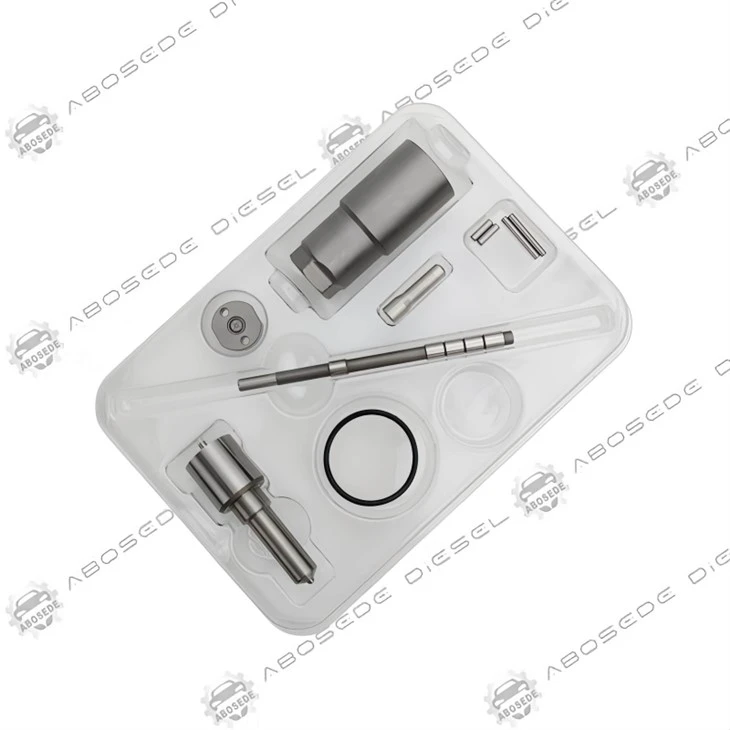

For workshops servicing high-hour equipment, the common rail system faces distinct failure mechanisms: needle and nozzle seat wear leads to excessive fuel return leakage, while DLC-coated needles, though harder, can still contribute to deformation of the body seat over time . A comprehensive DENSO repair kit for the 095000-6310 addresses these issues by replacing the needle and nozzle assembly, half-ball valve, and spindle components. This intervention corrects hard-starting conditions and erratic idle by restoring internal sealing and bringing return leakage parameters within the acceptable tolerance of approximately 15.00 mg/stroke at idle. For the African and Southeast Asian aftermarket, where equipment downtime translates directly to project delays, the ability to rebuild rather than replace reduces lead times and inventory costs while extending the service interval of these critical fuel system components.



Q1: For workshops operating without a Hartridge test bench, can the 095000-6310 injector be rebuilt reliably using just the repair kit?
A: While the repair kit contains the essential mechanical components, professional recalibration of the nozzle opening pressure and flow rate requires a common rail injector test stand. Without bench validation and appropriate calibration shims, there is a significant risk of return leakage deviation and unequal cylinder fueling.

Q2: How does this injector compare to the RE531209 variant-are the components cross-compatible?
A: The RE530362 and RE531209 share the same Denso G2 platform architecture, meaning physical items like the nozzle nut and solenoid are often interchangeable. However, the internal hydraulic codes differ; the command piston and nozzle are flow-matched specifically to the 095000-6310 programming for John Deere applications, so we do not recommend mixing internal components across these variants.

Q3: What is the typical failure mode for this injector in high-hour agricultural use?
A: The dominant failure is excessive internal leakage caused by wear on the needle and nozzle seat and degradation of the pilot valve surfaces. This manifests as hard starting, rough idle, and increased fuel return rates. The DLC coating extends life but does not eliminate wear; approximately 95% of failures still trace to the central spindle and needle assembly .

Q4: Can I install this injector without entering the QR code into the ECU, and what happens if I don't?
A: No. The QR code contains the injector's individual correction code for fuel delivery tolerances. Failing to enter this code via diagnostic software will cause the ECU to apply incorrect injection pulse durations for that cylinder, leading to a noticeable power imbalance, increased fuel consumption, and potential diesel knock.

Q5: For bulk stocking, what is the recommended shelf-life protocol for these injectors before installation?
A: Keep the injectors sealed in their anti-corrosion packaging. If they have been stored long-term, we recommend cycling the solenoid with a low-voltage current and ensuring the internal anti-rust oil hasn't solidified, which can cause internal components to stick . Always inspect the O-rings and high-pressure connections at installation.

Q6: Can this injector be used in generators (gensets) running continuously at 1500 RPM?
A: Yes, the 095000-6310 is compatible with John Deere genset engines (4045 and 6068 series) . For constant-speed applications, the injector's flow rate and return leakage specifications remain identical; however, ensure your ECU calibration file matches the genset application rather than the tractor variant.
