Field Rebuild Kit For DENSO G2 Injectors – 295050-0740 / 295050-0620 With OE Cross 23670-30420

Commercial workshop operators across Africa and Southeast Asia regularly face a common constraint: keeping diesel fleets moving when genuine component supply is intermittent. This DENSO repair kit directly addresses that operational challenge. Engineered for the G2 family injectors carrying assembly numbers 295050-0740 and 295050-0620-with the Toyota service cross-reference 23670-30420-this set provides the wearable internals required to restore injector function without mandating a full unit exchange. Field data from high-hour mining haulers and long-haul logistics rigs confirms that the control valve and command piston interfaces are the primary failure zones; this kit replaces those critical elements, returning injection precision and combustion efficiency to factory-established baselines.

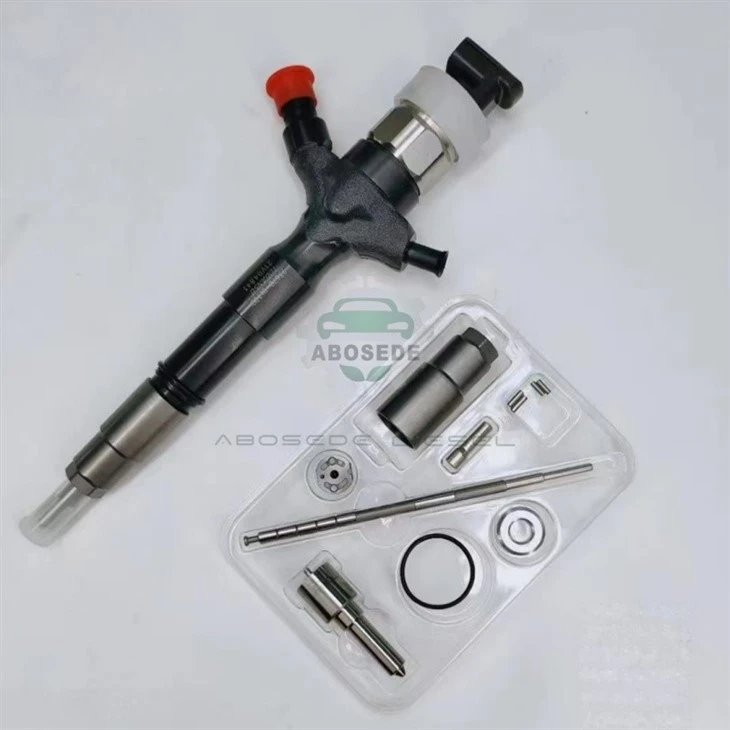

The rebuild protocol for these DENSO common rail injectors demands components manufactured to exacting tolerances. This kit includes the solenoid valve assembly, high-pressure seal ring, half ball valve, and the valve seat retaining hardware. Particular attention is given to the calibration shim and NOP spring, which directly govern injector opening pressure and response latency. These are matched to the 295050-0740 and 295050-0620 base numbers to maintain operational deviation within acceptable limits. The kit also supplies the necessary O-ring set for both the high-pressure inlet and injector body, ensuring a secure hydraulic lock against fuel dilution and combustion gas ingress.



This service solution is a direct fit for the Toyota 1KD-FTV and 2KD-FTV engine families-power units widely deployed across African mining operations, Southeast Asian logistics fleets, and agricultural machinery. Primary vehicle applications include the Toyota Hilux Vigo, Toyota Hiace, Toyota Fortuner, and the Toyota Dyna light-duty trucks. The OE number 23670-30420 serves as the definitive cross-reference, identifying the specific injector assembly used in these 2.5L and 3.0L D-4D common rail systems. For workshops servicing fleets in regions where genuine parts supply chains are unreliable, this kit offers a practical alternative to complete injector replacement.



Executing a successful rebuild using this injector repair kit requires strict adherence to clean-room practices-contamination remains the primary cause of post-service failure in diesel common rail systems. The dismantling sequence must prioritize careful solenoid extraction to prevent magnetic coil damage, followed by removal of the valve seat retaining nut. Critical attention is required for the half ball valve seating condition and smooth command piston travel within the injector body-scoring here mandates body replacement. Upon reassembly, the calibration shim stack determines final hydraulic performance. Post-installation, diagnostic software must be used to re-enter the injector's specific correction code into the ECU; failure to perform this coding step negates the rebuild benefits, often resulting in rough idle and increased particulate emissions.



Investing in this DENSO repair kit represents a strategic approach to managing diesel fuel system costs in challenging operating environments. High rail pressures-exceeding 1,600 bar-accelerate wear on the control valve and nozzle seating surfaces, leading to increased fuel return flow and reduced rail pressure stability. Replacing these consumables before catastrophic failure prevents metal debris from migrating to the pump and rail, effectively safeguarding the entire high-pressure circuit. For the commercial repair facility serving mining, construction, or agricultural sectors, offering a rebuild service utilizing these kits provides a profitable middle-ground solution, delivering OEM-level reliability at a fraction of replacement cost while drastically reducing core return logistics.



Q1: We operate a workshop in a remote area without access to DENSO-certified diagnostic equipment. Can we still use this kit effectively?

A: The physical rebuild can be completed with standard mechanical tools and proper cleanliness protocols. However, the final electronic coding step does require a diagnostic tool capable of rewriting injector correction codes-generic OBD scanners usually lack this function. Consider investing in a used DENSO or Toyota Techstream interface, or partner with a nearby workshop that has the capability. Without coding, the injector will operate outside its optimal fuel trim range.

Q2: How can we definitively confirm that an injector with 295050-0740 stamped on it accepts this 23670-30420 kit?

A: Locate the full OE number etched on the injector body-it will appear as 23670-30420 for the 1KD-FTV and 2KD-FTV applications. Some injectors carry additional suffix letters; these indicate minor production variations but do not affect kit compatibility. If the six-digit prefix 23670 matches and the injector is visually identified as a G2 solenoid-type unit, this kit is the correct selection.

Q3: Is there a visual indicator or measurement that tells us when a used injector is beyond rebuild and must be scrapped?

A: Yes. After disassembly, closely inspect the command piston sliding surface and the half ball valve seating area under good lighting. If you observe deep scoring, pitting, or any discoloration indicating localised overheating, the injector body has suffered irreversible wear. Additionally, if the valve seat retaining nut shows thread deformation or the solenoid coil resistance measures outside the 0.2–0.5 ohm range, we recommend scrapping that unit.

Q4: What is the most common installation error you observe from workshops using this kit for the first time?

A: The most frequent mistake involves incorrect calibration shim selection. Technicians sometimes reuse old shims or mix shims between injectors, which alters the NOP (needle opening pressure) and creates cylinder-to-cylinder imbalance. Always use the new shims provided and confirm stack height matches the specification for the 295050-0740 or 295050-0620 base number. Secondarily, over-torquing the valve seat retaining nut is a common cause of post-rebuild sticking.

Q5: Can this kit address fuel knock and white smoke issues that have developed gradually over the last 50,000 kilometres?

A: Yes, provided those symptoms stem from worn internal control components rather than injector nozzle degradation. The kit replaces the control valve, half ball valve, and command piston-the three elements most responsible for injection timing accuracy. If the nozzle itself is worn or carbon-blocked, however, the kit will not fully resolve the issue; nozzle replacement or professional cleaning would be required in addition to the rebuild.

Q6: How does the pricing of this kit compare to purchasing a complete aftermarket injector assembly?

A: At wholesale quantities, this kit typically costs 35–45% of a complete aftermarket injector unit, and substantially less than a genuine DENSO replacement. For a six-cylinder engine requiring six injectors, the total savings become significant-enough to cover the cost of a diagnostic interface and still leave margin for the workshop. The trade-off is the additional labour time for rebuild, which most shops absorb profitably at standard hourly rates.
