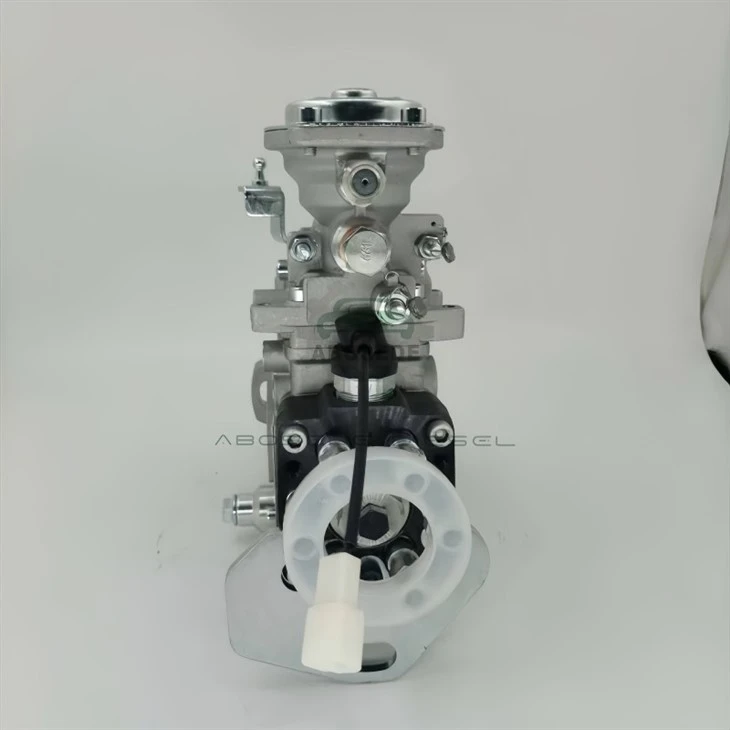

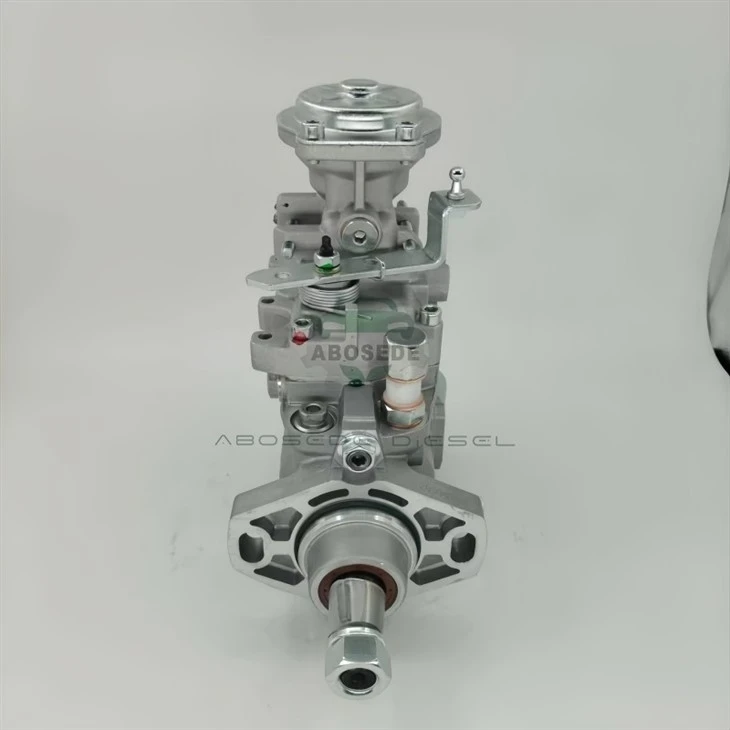

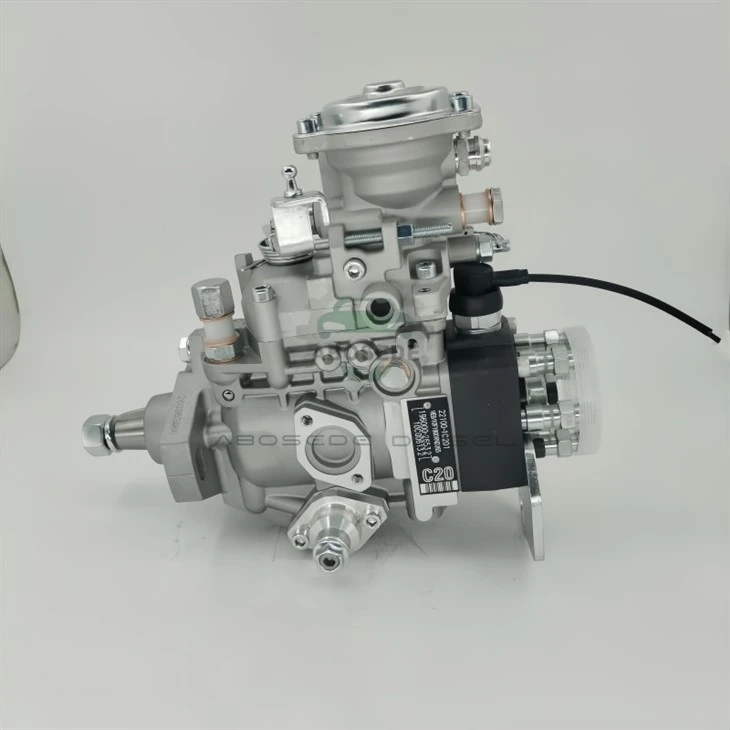

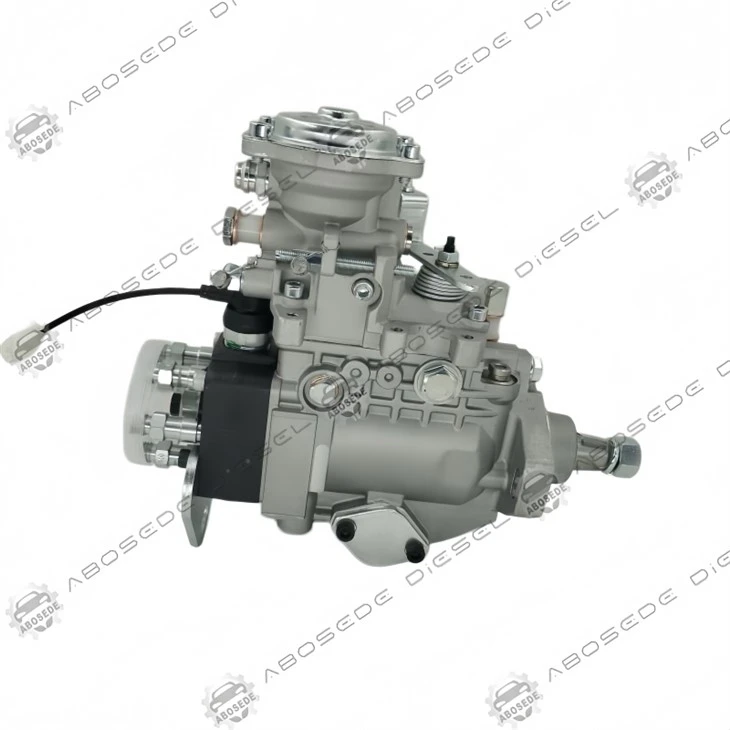

Nissan 22100-1C201 – The VE Pump That Adjusts Timing Through Hydraulic Feedback, Not Electronics

Long before common-rail systems relied on electronic solenoids for timing control, the VE distribution pump used a purely hydraulic-mechanical feedback loop to adjust injection timing. The 22100-1C201, also identified as VE6/10F19000RND265, represents the final evolution of this technology – a pump that monitors its own internal pressure and uses that information to advance or retard the timing of the injection event. It does not need a crankshaft position sensor, a rail pressure sensor, or a timing solenoid. It adjusts timing based on the pressure generated by its own pumping elements, making it a self-contained control system that responds to engine speed and load without electronic intervention. This hydraulic-mechanical intelligence is the defining characteristic of the VE pump and the reason it remained in production for over two decades.

Inside the VE pump, a device called the timer piston moves in response to the pressure differential between the pump's internal gallery and the delivery pressure. As engine speed increases, the pump's internal pressure rises, pushing the timer piston against a spring. The piston is mechanically linked to the roller ring, which rotates relative to the cam plate, altering the point at which the plunger begins its compression stroke. At idle, the timer piston is retracted, and the injection timing is retarded – typically around 5 degrees before top dead centre. At full load, the timer piston advances, moving the timing to approximately 10-12 degrees BTDC. This hydraulic feedback is continuous and proportional to speed and load, meaning the timing curve is automatically matched to the engine's requirements without any ECU involvement. The 22100-1C201 is calibrated to the specific timing curve required by the ZD30 engine, with a timer piston spring rate that has been selected to match the engine's speed-advance characteristic.

The heart of the VE pump is the hydraulic head assembly, which contains the plunger, the distributor rotor, and the delivery valves. The plunger reciprocates and rotates simultaneously – the reciprocating motion creates the pressure, and the rotation distributes the pressurized fuel to each cylinder in sequence. The clearance between the plunger and the barrel is critical: if it is too tight, the plunger binds; if it is too loose, internal leakage reduces the maximum pressure. The 22100-1C201 uses a plunger-barrel clearance of 4-6 microns, a precision fit that maintains the injection pressure above 800 bar at rated speed while minimising leakage at idle. The hydraulic head is made from a nitrided steel that resists abrasive wear, and the distributor rotor is coated with a molybdenum-based anti-galling layer to prevent scuffing during the rotational distribution cycle.

In a common-rail system, the ECU determines the fuel quantity based on pedal position and sensor inputs. In the VE pump, the fuel quantity is controlled by the mechanical governor – a set of centrifugal flyweights that move a control sleeve, which varies the effective stroke of the plunger. At idle, the flyweights are retracted, and the sleeve is positioned to reduce the plunger stroke, limiting the fuel quantity to the idle requirement. At full load, the flyweights are fully extended, and the control sleeve allows the maximum plunger stroke. The governor also includes a torque control feature that limits the fuel quantity at the point of maximum torque, preventing over-fuelling and reducing exhaust smoke. The 22100-1C201's governor is calibrated to the ZD30's torque curve, ensuring that the engine delivers its rated power without exceeding the smoke limit.

The most common failure in the VE pump is not a plunger breakage but a sticking timer piston. The timer piston moves in a bore that is lubricated by fuel – if the fuel contains water or abrasive particles, the bore can become scored, and the piston sticks. A stuck timer piston results in fixed injection timing, causing the engine to have a harsh idle when cold (if stuck retarded) or a lack of power at high speed (if stuck advanced). The second most common failure is rotor scuffing – the distributor rotor rotates against the hydraulic head, and if the fuel lubricity is poor, the rotor can gall, causing a loss of pressure and a misfire on one or more cylinders. The 22100-1C201 uses a rotor with a hardened surface and a Molykote coating that reduces scuffing, but regular fuel filter changes are still the best protection.

Q1: How can I tell if my timer piston is sticking without removing the pump from the Patrol?
→ On a cold engine, start the engine and observe the idle. If the idle is rough and the engine shakes more than usual, the timing may be stuck retarded. On a warm engine, perform a snap throttle – if the exhaust produces black smoke that clears slowly, the timing may be stuck advanced. A correctly functioning timer piston will give a clean snap and a smooth idle.

Q2: Can I replace just the timer piston if it is sticking, or do I need a complete pump?
→ The timer piston is accessible by removing the pump's end cover, and it can be replaced as a service part. However, if the pump has more than 150,000 km, the plunger and rotor wear may also be significant, and a complete pump replacement is often more cost-effective.

Q3: Why does my Patrol have black smoke at high load but run clean at idle?
→ This is a classic symptom of retarded injection timing – the timer piston is not advancing sufficiently at high speed, causing late injection and incomplete combustion. Check the timer piston bore for scoring and verify the pump timing is correct – replacement of the timing device may be necessary.

Q4: What is the recommended fuel filter change interval for the VE pump?
→ Nissan recommends a fuel filter change every 20,000 km for the ZD30, but if the vehicle is used in dusty conditions or in regions with variable fuel quality, we recommend changing the filter every 10,000-15,000 km. The VE pump is lubricated by the fuel – clean fuel is the most important factor in pump longevity.

Q5: Can I use biodiesel (B20) with this pump?
→ The VE pump's hydraulic head relies on the lubricity of diesel fuel. Biodiesel has lower lubricity than standard diesel, and it can cause accelerated wear of the plunger and rotor. If you must use biodiesel, ensure it meets the EN 14214 standard and change the fuel filter more frequently to remove water and impurities.

Q6: Does the 22100-1C201 require special priming after installation?
→ Yes. The pump must be primed with fuel before starting the engine – the plunger and distributor rotor are not self-priming. Fill the pump inlet with clean diesel through the banjo connection, bleed the high-pressure lines at the injectors, and then crank the engine. Failure to prime will cause a dry start that can damage the plunger and rotor surfaces.
