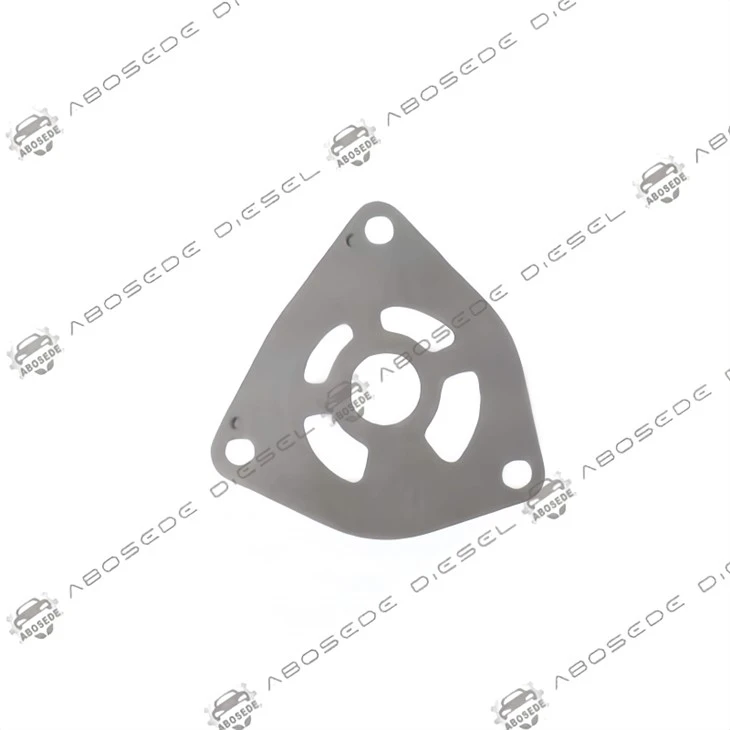

Denso Hp3 / Hp4 Pump Plate 294184-5010 – Feed Pump Plate

A truck that sits on the hoist for an extra day does not just cost the customer lost revenue-it eats into the shop's effective labour rate. The bay is occupied, the technician's clock keeps running, and the parts counter has already billed out an SCV that did not solve the problem. When that same unit returns within 200 operating hours with rail pressure oscillation, the comeback lands on the same bay, unpaid. This is the financial reality of common-rail repairs that stop at the control valve while ignoring the feed pump plate. The HP3 and HP4 pumps share a single wear interface that quietly undermines diagnostic work: the ground surface where the trochoid rotor seals against the plate. Differential thermal expansion between the aluminium housing and the steel plate gradually opens the original flatness from 0.02mm to 0.04mm or more. The rotor loses its axial seal, suction pressure becomes erratic, and the SCV hunts-yet the valve itself is merely responding to a mechanical fault. The 294184-5010 plate closes that loop. It restores the factory flatness tolerance, re-establishes the rotor end clearance, and gives the shop a single-shot fix that does not generate a callback.

The sealing face carries a Rockwell hardness of HRC 47–51, selected to resist brinelling from the trochoid rotor tips during cold starts when fuel viscosity drops. The lapped finish measures Ra 0.7 μm or finer-smooth enough for the perimeter gasket to compress evenly, yet sufficiently textured to prevent the rotor from hydroplaning. Parallelism between the front sealing face and the rear locating boss is held within 0.015mm. Exceed that, and the rotor shaft runs at an angle, increasing drive torque by 9–14% and placing additional load on the pump gear. The centring bore, which positions the plate over the pilot diameter, is concentric within 0.03mm TIR. A bore that drifts by even 0.04mm induces a side load that wears the front bearing prematurely-a condition often misdiagnosed as gear noise.

Fitment is determined solely by the 9-digit DENSO assembly number on the pump body, not by vehicle model. This plate, 294184-5010, serves as the direct replacement for HP4 assemblies 294050-0100, 294050-0102, 294050-0110, 294050-0160, 294050-0170, 294050-0172, 294050-0190, 294050-0210, 294050-0410, 294050-0430, and 294050-0640. For HP3 applications, it has been fitted to 294000-0038, 294000-0610, and 294050-0130, provided the four-bolt pattern (46mm PCD) and pilot bore diameter match. Early 5-rotor HP4 pumps use a different plate thickness; the casting number must always be verified.

The old gasket must be fully removed and the housing face solvent-cleaned. A dial indicator is swept across the bare mating surface; runout above 0.04mm TIR means the housing itself has warped and must be machined-no new plate can compensate. The 294184-5010 is positioned dry; sealants act as hydraulic wedges that lift the plate off its seat. The four M6 bolts are torqued in a two-pass cross-sequence: first to 5 N·m, then to 9.8 N·m ±0.5 N·m. A 0.02mm feeler gauge is passed under the plate at four points; any penetration indicates debris or housing distortion. The trochoid rotor is then rotated by hand-uneven resistance points to a contaminated pilot bore.

A complete exchange common rail pump rebuild-a remanufactured HP3 or HP4 unit-runs between 1,100 and 1,900 USD. Replacing the feed pump plate with 294184-5010 consumes under 7% of that figure. The lever effect on the drive gear is what justifies the preventive install: as the plate's flatness drifts, the trochoid rotor exerts a cyclic axial thrust that directly fatigues the gear teeth. A new plate that restores the original supply pump alignment limits thrust variation to under 5%, removing the fatigue loading that spalls teeth over 3,000 operating hours. For a shop performing a rail pressure drop test or an SCV current sweep, adding this plate to the parts list is not an upsell-it is a pre-emptive stop against a gear-and-camshaft replacement that would otherwise appear within two service intervals. The improved plunger fill coefficient, fed by stable inlet pressure, also reduces the rail pressure control valve's duty cycle, cutting heat build-up in the pump's return circuit.

Q: How do I confirm my pump takes 294184-5010 rather than an earlier variant?
A: Locate the 9-digit DENSO assembly number on the pump body's data tag. If the number falls within the 294050-0100 to 294050-0640 range for HP4, or matches 294000-0038 / 294000-0610 for HP3, this plate is correct. Early 5-rotor HP4 pumps use a thicker plate and are not compatible.

Q: Should the cover and plate be replaced as a matched set?
A: Only replace the outer cover if its seal bore or gasket face is scored. The feed pump plate is the wear-critical element because it seals the trochoid rotor's axial end; the cover merely retains the SCV and sensor. Matching is not required unless the cover shows visible pitting.

Q: Does the plate carry batch traceability for warranty purposes?
A: Yes. A laser-etched alphanumeric code on the non-sealing face, adjacent to the 6 o'clock bolt hole, identifies the heat-treatment and grinding batch. This code must be quoted when filing any warranty claim.

Q: What is the corrosion protection period under typical storage conditions?
A: The plate is packed with a vapour-corrosion inhibitor (VCI) sachet. Unopened, it protects the ground face for 24 months at 5–40°C and below 60% humidity. Once the sachet is opened, re-oil the sealing face before installation.

Q: What is the minimum wholesale order and can I mix with other HP3 service kits?
A: Single-piece samples are available for validation. Standard wholesale pack is 10 units. Mixed orders with other pump service components are accepted, but each plate variant must be ordered in full box quantities.

Q: The pump body casting has no visible data tag-can I identify fitment by measuring the old plate?
A: Yes. Measure the thickness (nominal 6.0mm), pilot bore diameter (22.0mm), and bolt hole PCD (46.0mm). If these match 294184-5010 and the old plate carries a 294184-5xxx prefix, the replacement is valid. However, without the DENSO assembly number, confirm the rotor count by removing the cover-HP3 and HP4 both use a 3-rotor trochoid set; early 5-rotor pumps are the exclusion.
