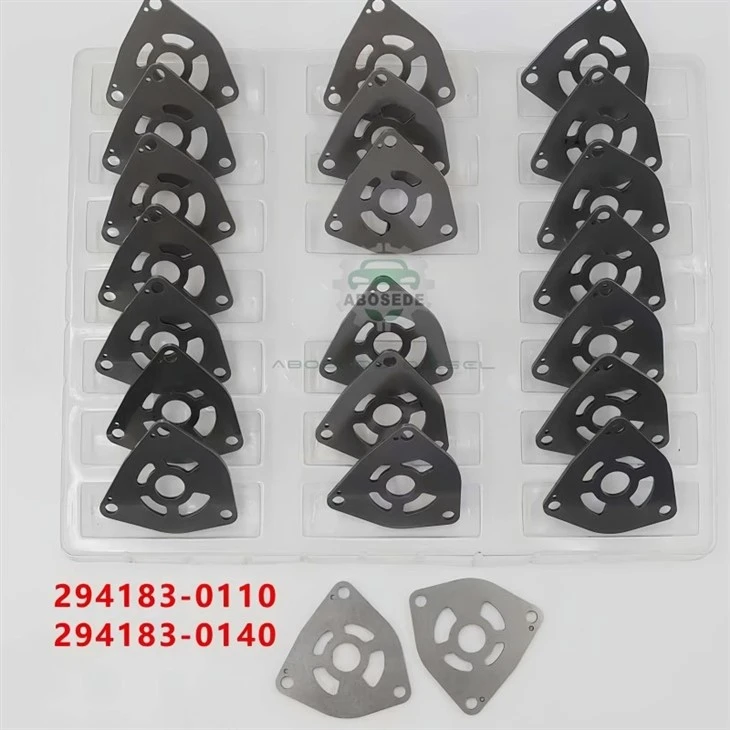

294183-0110 DENSO HP3 / HP4 Feed Pump Plate – Restoring Trochoid Rotor Stability Via Precision Flatness Control

When the common rail supply pump endures repeated thermal cycles from cold start to 100°C operating temperature, the aluminum pump housing expands at a rate nearly twice that of the steel fastening studs. This differential movement, compounded by the camshaft's axial thrust, progressively warps the sealing face that separates the trochoid feed pump stage from the high-pressure plunger barrels. The resulting flatness drift-often exceeding 0.03mm after 3,000 hours of highway duty-allows the feed rotor to migrate axially, introducing pressure oscillations into the suction gallery. These oscillations manifest as inconsistent SCV (Suction Control Valve) response and incomplete plunger filling, conditions frequently misattributed to injector leakage or contaminated fuel. Returning the interface to within 0.015mm flatness directly arrests this axial migration, reinstating the volumetric consistency originally designed into the supply pump alignment.

Functional reliability derives not from material selection alone, but from the ability to recreate the OEM datum plane under load. Each 294183-0110 Denso HP3 pump plate is ground to a surface roughness of Ra 0.8µm or better, with flatness held to 0.02mm across the entire sealing perimeter. Hardness is maintained at 40–50 HRC to resist indentation from particulate entrapment, while the counterbore concentricity relative to the rotor pilot diameter does not exceed 0.03mm TIR. These parameters ensure that when torqued, the O-ring compression remains uniform, preventing localized stress concentrations that could distort the pump body casting. The feed pump plate thus provides a deterministic anchor for the rotor's axial register, directly impacting the suction-side pressure stability.

This plate serves both the HP3 twin-plunger and HP4 triple-plunger pump families where the feed section uses a standard trochoid rotor driven off the main shaft. Verified fitment includes pump assemblies bearing the 294000- prefix with serial numbers -0237, -0334, -0356, -0440, -0532, -0544, -0640, -0782, -0890, -0900, -0910, -1210, -1240, -1370, -1400, -1510, -1520, -2330, and -2350. Cross-reference with OEM listings shows interchangeability with Toyota 1KD-FTV / 2KD-FTV supply pump fittings, Isuzu 4HK1 installations, and Nissan YD25DDTi applications, where dealer part numbers vary but the DENSO casting remains identical. For HP4 pumps, verify that the SCV harness routing does not interfere with the plate's outer profile, as the third plunger adds a casting offset not present on the HP3.

Prior to extraction, sweep the pump mounting face with a dial indicator referenced to the gear case bore: a housing runout exceeding 0.05mm indicates fretting or prior overtightening-conditions that will prevent proper seating of the new plate. Removal follows a diagonal loosening pattern to avoid springing the pump body. The mating surfaces are then cleaned to ISO 4406 18/16/13, with blind holes cleared of trapped fluid that could hydrolock the fasteners. Installation torque for the M8 nuts is set to 22.6–28.4 N·m, applied in three stages across a crosswise sequence, with a final angular verification to confirm no bolt has yielded. The O-ring must be wetted with clean diesel before seating to prevent rolling, a frequent cause of post-rebuild priming failure in common rail pump rebuild procedures.

The alternative to replacing a distorted DENSO HP3 pump plate is exchanging the entire pump cartridge-a component priced at roughly eight times the plate's value. Beyond the direct cost differential, the axial instability from a warped plate imposes side-loading on the pump drive gear and engine idler train, accelerating tooth flank wear. Once gear backlash exceeds 0.15mm, consequential timing drift often triggers cam sprocket and chain guide replacement, expenses that compound far beyond the plate's price. By intercepting the thermal distortion cycle at this single interface, the repair establishes a stable foundation for SCV metering without the compensatory dithering that overheats driver circuits. At the 500,000-kilometre preventive service mark, replacing this plate as a routine item-alongside the SCV O-rings-de-risks the entire high-pressure fuel system without the capital outlay of a new pump core.

Q1: How can I verify my pump body accepts this plate without removing it first?
Locate the six-character cast code adjacent to the SCV boss. If the number falls between 294000-0237 and 294000-2350, this plate is the correct service fitment. Earlier bodies (e.g., 294000-0010 series) use a different dowel pattern and are not physically interchangeable.

Q2: Is the pump cover required to be replaced along with the feed plate?
No-the cover housing the SCV and outlet valves does not share a wear interface with this plate. Provided its rotor shaft bore shows no scoring, only the rectangular O-ring between the plate and body must be replaced, as it takes a permanent compression set.

Q3: Is there traceability on production batches for quality follow-up?
Yes. Each plate carries a laser-engraved Julian date code and cavity letter (A–F) from the grinding fixture. This allows the manufacturer to trace the plate back to specific tooling setup parameters if dimensional questions arise.

Q4: What is the storage life before oxidation becomes a concern?
Unopened pouches carry 24 months of corrosion protection. Once opened, installation should occur within 72 hours; beyond that, re-oiling and re-bagging are required. Uncontrolled storage with temperature swings above 15°C can induce pitting within 14 days.

Q5: Do you allow mixing this plate with other part numbers for wholesale orders?
Consolidated shipments with mixed batches are permitted, but segregation is mandatory. The 294183-0050 plate (HP5 platform) shares outer dimensions yet differs in thickness by 0.3mm-mixing without clear box labeling has led to mis-installation, so separate packaging is strongly advised.
