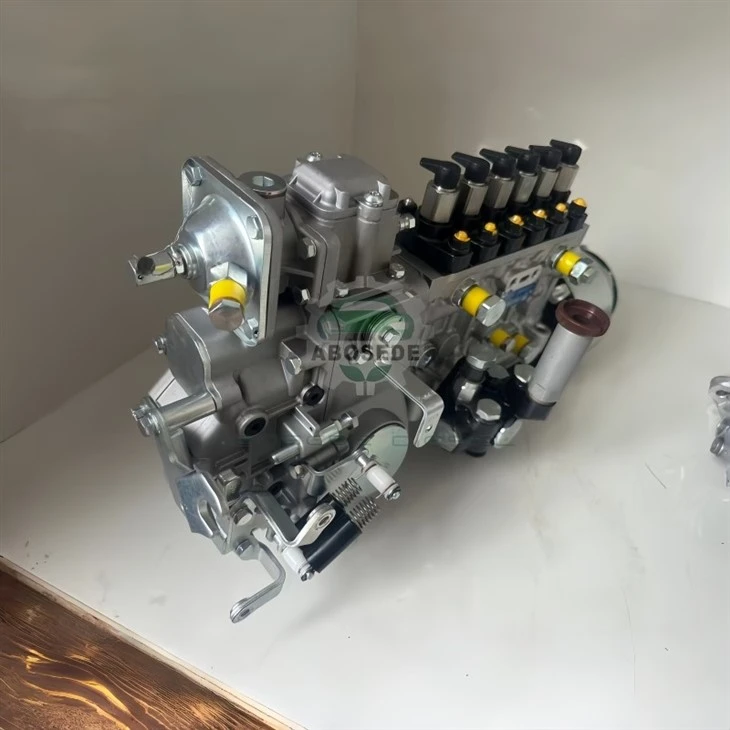

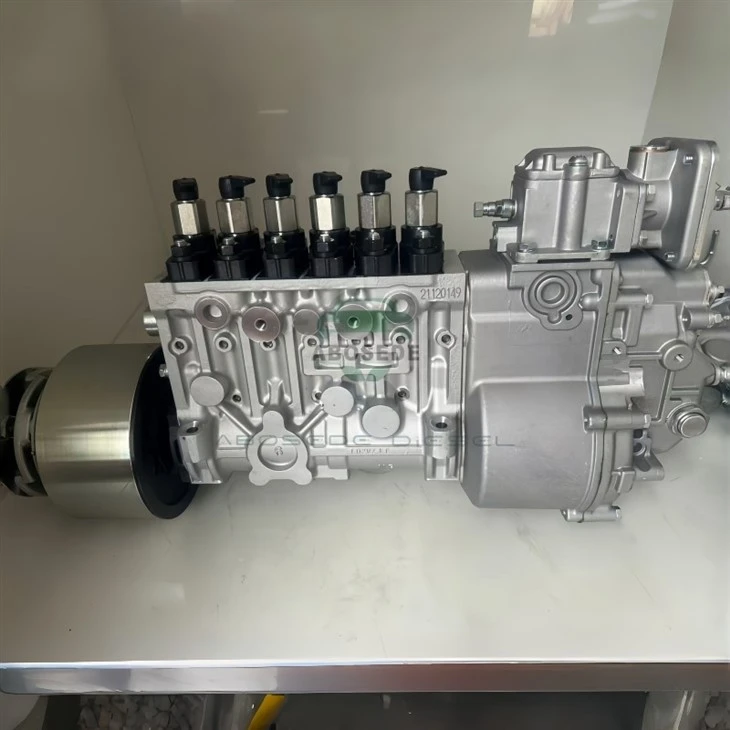

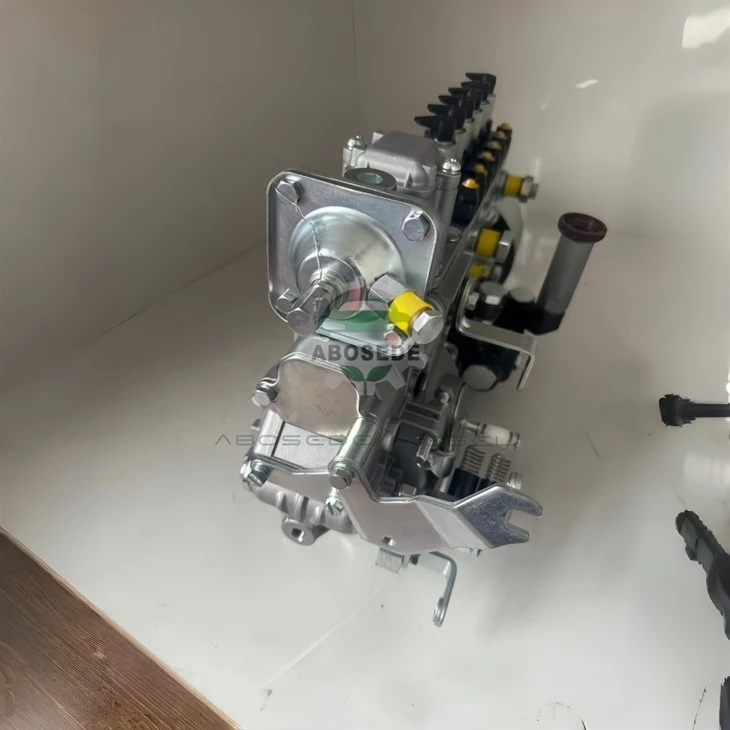

22010-8445 High-Pressure Fuel Pump – Denso-Series Common Rail Supply Pump For Diesel Engine Rebuilds

Part number 22010-8445 identifies a Denso-family high-pressure fuel pump used on common rail diesel engines. Instead of describing it as "a pump that delivers fuel," it is more accurate to call it a pressure generator with a metering strategy: it draws low-pressure diesel, pressurizes it through a cam-driven plunger system, and supplies the rail through a discharge path controlled by a suction control valve. The 22010-8445 is a service replacement unit for engines where the original pump has reached its wear limit, lost pressure-holding ability, or triggered rail-pressure deviation faults. It is aimed at rebuilders, engine repair shops, and fleet parts buyers who match by OEM number rather than by appearance.

The 22010-8445 supply pump is the hydraulic source of the rail. Its suction control valve regulates how much fuel enters the plunger chamber; its delivery valves push pressurized fuel toward the rail; its return circuit carries excess fuel back to the tank. Each stage interacts with the ECU's pressure control loop. When the pump is healthy, the rail pressure actual value tracks the desired value within a tight window. When it is worn, the control valve compensates by increasing duty cycle, and the pump runs hotter and noisier. Replacing the 22010-8445 restores the hydraulic margin the ECU expects.

Values below are reference targets. Always confirm against the engine's OEM data and the pump's own nameplate before installation.

➤ Pump family: Denso-style common rail supply pump
➤ Part number: 22010-8445
➤ Drive: camshaft or gear-driven, application-dependent
➤ Plunger type: radial or axial, matched to housing
➤ Rail pressure capability: up to 1,800 bar, engine-dependent
➤ Suction control valve: integrated, solenoid type
➤ Delivery valves: integrated, one per plunger
➤ Fuel inlet: low-pressure feed from filter housing
➤ Return outlet: to tank via return line
➤ Housing material: aluminum alloy
➤ Plunger/barrel: hardened steel, lapped pair
➤ Test fluid: ISO 4113 calibration oil for bench verification

The 22010-8445 is not a universal pump. It is matched to specific engine families and rail layouts. Before ordering, verify:

Engine code and displacement

Original pump number stamped on the housing

Suction control valve connector type

Number of delivery outlets

Drive coupling or gear configuration

Mounting bolt pattern

A pump that looks identical can differ in plunger size, cam profile, or control valve calibration. Cross-referencing by OEM number is safer than matching by photo. Distributors should request the engine serial and the old pump's nameplate data to confirm fitment.

Common rail supply pumps rarely fail suddenly. They degrade. Indicators that the 22010-8445 is due for replacement include:

➤ Rail pressure drops below target under load
➤ Longer cranking before start
➤ Pressure control deviation codes
➤ Metallic debris in the fuel filter
➤ Increased return flow to tank
➤ Whining or knocking from the pump area

Debris is the most serious signal. A worn plunger pair sheds particles that travel to the injectors. Replacing the pump without flushing the rail and lines can transfer contamination to new components. A proper service procedure includes tank cleaning, filter replacement, line flushing, and injector inspection.

Does the 22010-8445 fit every Denso common rail engine?
No. It is matched to specific engine codes and pump configurations. Always cross-check the original pump number and engine serial before ordering.

Can I install this pump without replacing the fuel filter?
Not recommended. A restricted or contaminated filter can starve the pump and push debris into the new unit. Replace the filter and inspect the tank as part of the job.

What causes a new 22010-8445 to lose rail pressure?
Common causes include air ingress, a faulty suction control valve connector, a leaking high-pressure line, or contamination from the rail. Bench-test the pump and inspect the circuit before blaming the unit.

Is this pump supplied with a suction control valve?
Yes, the integrated suction control valve is part of the assembly. Confirm the connector type matches your engine harness before installation.

How do I know if my old pump is rebuildable?
Rebuildability depends on housing condition, plunger bore wear, and cam wear. A rebuilder can assess this after disassembly. If the housing is scored, replacement with a new 22010-8445 is the safer path.

Does the pump require ECU adaptation after installation?
Some engines require a pump learn or pressure adaptation procedure. Check the OEM service information for your specific engine.
