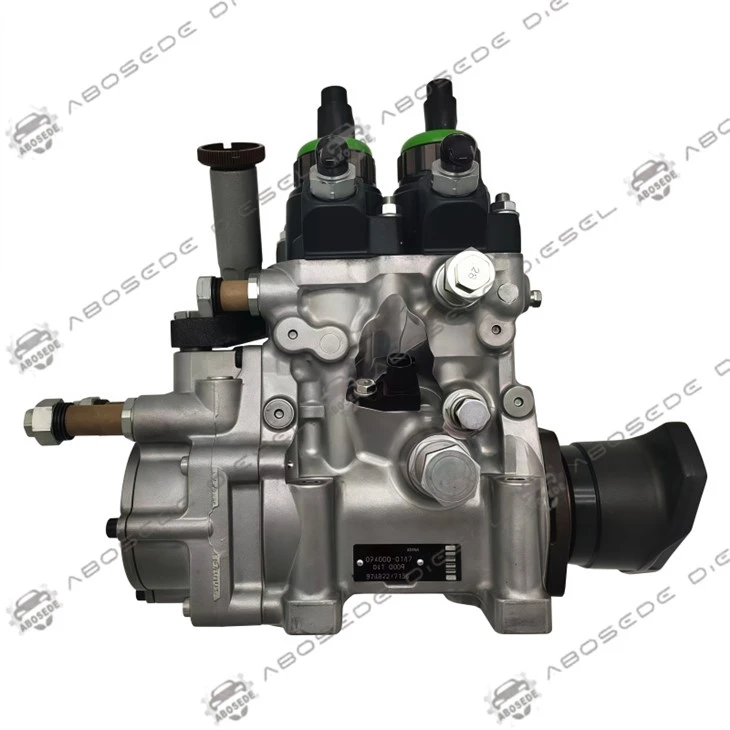

094000-0161 | Denso HP0 Common Rail Injection Pump For Isuzu 6HK1

The 094000-0161 is a Denso HP0 common rail fuel injection pump engineered as an OEM-equivalent replacement for the Isuzu 6HK1 7.8L diesel engine platform. This high-pressure fuel pump is the critical heart of the common rail fuel system, responsible for generating and sustaining the extreme rail pressures required for precise combustion in modern medium-duty and heavy-duty diesel applications. As a direct cross-reference for part numbers including 094000-0160, 8943927130, and 8943927135, this unit delivers the durability and flow performance needed to restore engine power, fuel efficiency, and emissions compliance in commercial fleet vehicles .

This Denso HP0 pump operates as a radial piston high-pressure pump, designed to convert low-pressure supply fuel into high-pressure output exceeding 1,600 bar. The unit features a robust housing built for continuous-duty cycles and integrates seamlessly with the engine's ECU for precise fuel metering. The table below consolidates the critical specifications and interchangeable part numbers:

Parameter	Detail
Product Type	Diesel Common Rail High-Pressure Injection Pump
Brand / Model	Denso HP0
OEM / Interchange Part Numbers	094000-0161, 094000-0160, 094000-0162, 094000-0163, 094000-0164, 094000-0165, 094000-0166, 094000-0167, 8943927130, 8943927131, 8943927132, 8943927133, 8943927134, 8943927135, 8943927136, 94392713, 9709400-016
Primary Application	Isuzu 6HK1 7.8L Diesel Engine
Vehicle Fitment	Isuzu FTR, FRR, GMC/Chevrolet Medium-Duty Trucks (c. 2001–2005)
Condition	New / Remanufactured to OEM Specs
Warranty	Industry-leading 24-month coverage

Designed specifically for the Isuzu 6HK1 platform, the 094000-0161 pump is the preferred replacement for a wide range of medium-duty trucks and buses. It is a direct bolt-on fit for Isuzu FTR and FRR models, primarily covering model years 2001 through 2005 . This pump is also cross-compatible with certain GMC and Chevrolet commercial chassis equipped with the 7.8L Duramax diesel variant. For repair shops and parts distributors, this single part number covers a broad spectrum of vehicle applications, simplifying inventory management for the 6HK1 fuel system. Whether servicing a municipal delivery truck or a commercial bus fleet, this pump ensures that the common rail injection system returns to factory-specified rail pressure and injection timing.

Proper installation of the Denso HP0 pump is critical to avoid premature failure and ensure optimal performance. Before installation, always verify the condition of the drive gear and alignment pins; any damage can cause catastrophic failure. It is imperative to replace all high-pressure fuel lines and O-ring seals during the pump swap to prevent micro-leaks, as these lines are typically single-use crush fittings. Cleanliness is paramount-any debris introduced into the inlet port can score the plungers, leading to immediate loss of rail pressure. Always prime the fuel system by manually filling the pump with clean diesel or using a suitable purge tool before cranking. This prevents dry-start damage to the internal bearings and plungers. Finally, the installation must be followed by an electronic adaptation reset using a diagnostic tool to calibrate the fuel volume compensator (SCV) to the new pump tolerances.

Investing in a high-quality replacement injection pump like the 094000-0161 is essential for the long-term viability of the common rail fuel system. Common rail systems are susceptible to failure from fuel contamination and water ingress, which wear down the tight-tolerance plunger and barrel assemblies. A failing pump will degrade rail pressure, causing poor atomization, increased particulate matter (soot), and higher fuel consumption. The cost of replacing an entire fuel pump is significantly lower than the expense of rebuilding injectors or replacing the entire fuel rail due to metal contamination from pump failure. Using a remanufactured or OEM-spec unit provides a cost-effective solution that maintains the integrity of the diesel injection system without the dealership price tag .

Q1: What is the primary failure mode for the Denso HP0 pump?
A: The most common cause of failure is poor fuel quality and water contamination, which leads to internal corrosion and seizure of the plungers. Regular fuel filter changes and water separator draining are the best preventive measures .

Q2: Does 094000-0161 replace 094000-0163?
A: Yes, this part number is fully cross-compatible. It replaces a range of part numbers including 094000-0163, 094000-0160, and 8943927135, making it a universal fit for the specified Isuzu applications .

Q3: Is this pump a direct bolt-on or do I need modifications?
A: It is a direct bolt-on OE replacement. No modifications are needed, provided the pump is the exact fit for the Isuzu 6HK1 7.8L engine. However, we recommend verifying the specific model year to ensure compatibility with the fuel line connections.

Q4: When is a full set replacement needed versus just the pump?
A: If the pump has suffered a catastrophic failure (e.g., metal shavings in the return line), the entire fuel system-including injectors and the rail-must be flushed or replaced. Otherwise, replacing just the pump is sufficient .

Q5: Why does rail pressure drop after installation?
A: Usually due to air in the system or a faulty SCV (Suction Control Valve). Ensure proper bleeding and perform the electronic injector code/adaptation reset to resolve this.

Q6: What warranty is provided?
A: This unit is backed by a comprehensive 24-month warranty against defects in material and workmanship .
