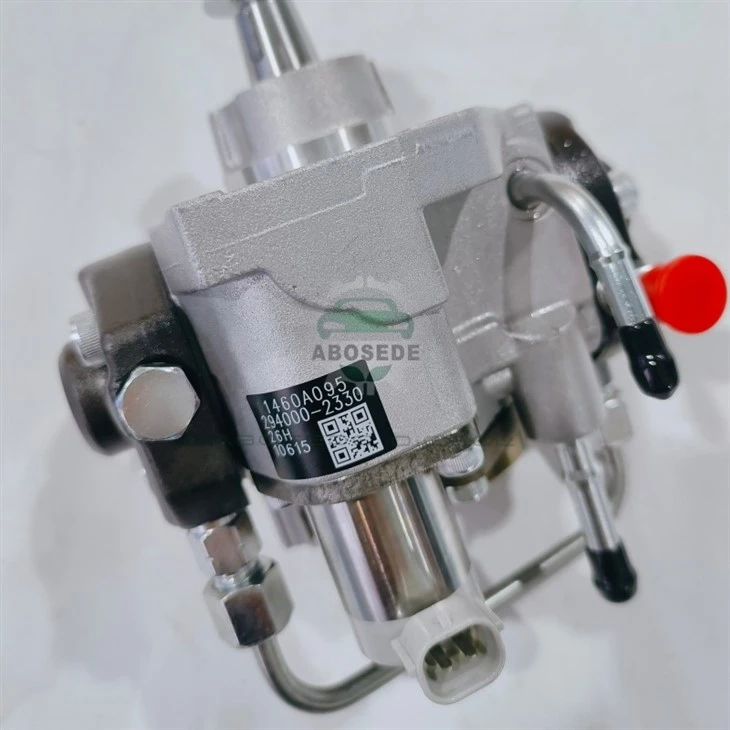

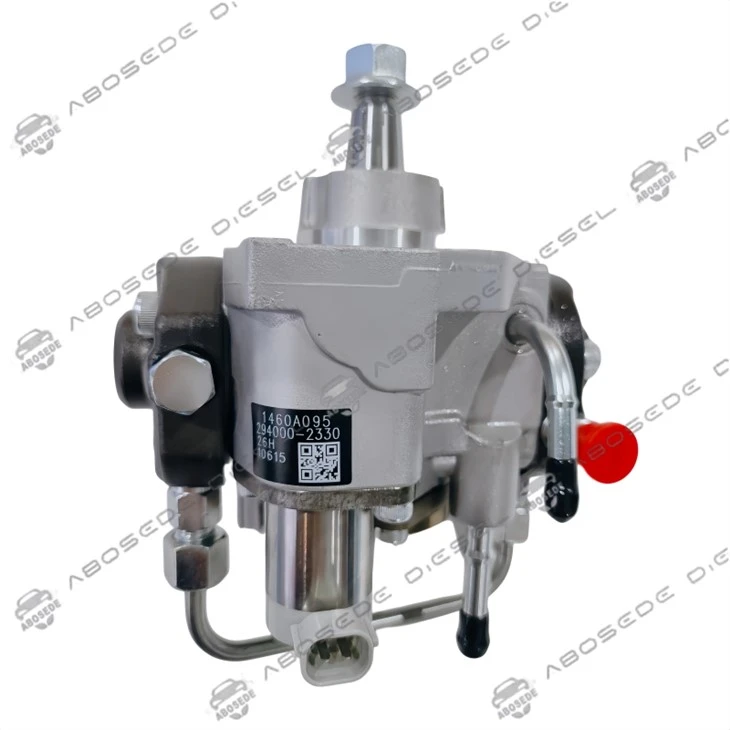

1460A095 / 294000-2330 Denso HP3 Common Rail Pump

This Denso HP3 radial-piston high-pressure fuel pump, carrying the Mitsubishi OEM reference 1460A095 and Denso industry number 294000-2330, is the pressure-generation core for the Mitsubishi 4N15 2.4L DI-D turbo diesel fitted to Triton, L200, and Pajero Sport platforms from 2015 onward. For workshops and diesel parts distributors handling these vehicles, the unit represents a high-turnover repair solution: when the original pump's Suction Control Valve sticks or internal plunger wear erodes rail pressure, the resulting limp mode, hard starting, and P0093 fault code leave the customer with few alternatives beyond replacement or remanufacturing. Understanding the pump's engineering limits, vehicle coverage, and installation discipline is what separates a comeback repair from a durable one.

The 1460A095 is built on Denso's HP3 architecture, using three radially arranged plungers driven by the camshaft to generate rail pressures in the 1,800–2,000 bar range, depending on calibration and application year. Unlike older axial-piston designs, the radial layout distributes load more evenly and reduces pressure pulsation at the rail, which matters for the 4N15's Euro 5/6 combustion strategy and its sensitivity to injection timing scatter. The integrated Suction Control Valve meters fuel entering the pumping chamber electronically, and its response rate directly influences idle stability and throttle linearity. A high-strength aluminum housing keeps weight down while managing heat rejection in the engine bay, and the low-pressure vane-type feed pump is packaged inside the same body, eliminating external leak paths common on split-pump arrangements.

The most common cause of premature 294000-2330 failure in the field is not a manufacturing defect but contamination introduced during installation or a neglected low-pressure circuit. Before the pump is seated, the mating surface on the engine block must be cleaned of carbon, rust, and residual gasket material; trapped debris migrates directly into the SCV and plunger clearances, producing the same P0089 or P0093 symptoms the new pump was meant to cure. The high-pressure lines and rail must be flushed or replaced according to the OEM procedure, because any particulate held in the old lines will reach the new pump's precision elements within the first minutes of running. The SCV connector requires a clean, dry mating surface and full engagement-partial contact causes intermittent current flow that the ECU interprets as a valve fault. Finally, the fuel filter must be replaced at the same time, and the low-pressure supply pressure verified before cranking; a restricted filter or weak in-tank lift pump starves the HP3 of lubricating diesel and accelerates internal wear from the first start.

For an independent diesel shop, the 1460A095 replacement decision hinges on a simple calculation: the labour to remove and refit the pump is substantial, and a comeback erases the margin on the job. A genuine or quality remanufactured HP3 unit with a validated SCV and pressure-tested plunger assembly protects that margin. The 4N15's P0093 code is notorious for being misdiagnosed as an injector leak when the real culprit is a pump that can no longer hold commanded rail pressure under load. Shops that stock the 294000-2330 alongside the corresponding injector seal kit and rail pressure sensor position themselves to resolve the fault in one visit rather than two. Distributors, meanwhile, benefit from carrying the 1460A095 as a fast-moving SKU for the Triton and Pajero Sport aftermarket, where vehicle age and mileage are now reaching the point where original pumps are failing with regularity.

Q1: A customer's 4N15 sets P0093 but no visible diesel leak-should I replace the pump immediately?
A: Not yet. Perform a live rail-pressure comparison against the target under load. If actual pressure lags by more than 15–20 MPa during acceleration with a fresh filter, the pump or SCV is the likely cause. A sticking SCV can sometimes be cleaned and retested, but recurring P0093 after cleaning points to internal wear.

Q2: Can I fit a 294000-2340 in place of a 294000-2330 if the connectors match?
A: No. The -2340 is calibrated for a different emissions tier and injection strategy. Connector compatibility does not guarantee correct rail-pressure mapping. Always verify by VIN and engine's Euro classification before cross-referencing.

Q3: What is the most overlooked installation step that causes early pump failure?
A: Failure to replace the high-pressure lines or adequately flush the rail. Old lines retain debris that reaches the new SCV and plunger within minutes of running, producing a repeat failure that is often wrongly blamed on the replacement unit.

Q4: How can a wholesaler reduce warranty returns on this part?
A: Ship the pump with a printed installation checklist covering filter replacement, low-pressure supply verification, and SCV connector inspection. Most returns stem from contaminated fuel systems, not pump defects, and a checklist shifts accountability back to the installer.

Q5: Is remanufacturing a viable alternative to new for low-mileage 4N15s?
A: Yes, if the remanufacturer replaces the SCV and validates plunger clearances on a test bench. A reman with a new SCV and verified delivery volume is a sound economic choice for vehicles under 150,000 km; beyond that, new or OE-reman is safer.

Q6: What low-pressure feed pressure should I verify before signing off the repair?
A: Confirm the in-tank lift pump delivers steady low-pressure supply per the Mitsubishi service data-typically around 5 bar at the pump inlet. A weak lift pump starves the HP3 of both fuel volume and lubrication, shortening the replacement's service life.
