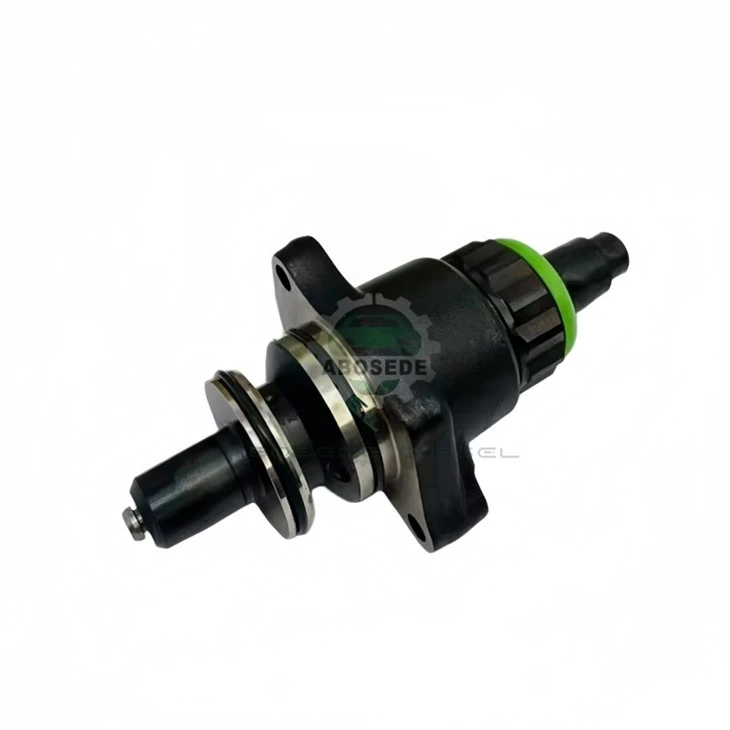

HP0 Plunger Assembly 094150-0312 – Direct-Fit Element For Denso HP0 Pump Heads

This green-coded plunger assembly, factory-indexed under 094150-0312, functions as the volumetric displacement core within Denso's HP0-series rotary pumps. Engineered exclusively for pump bodies 0101, 0166, 0305, 0310, 0360, 0400, 0490, and 0500, this component governs fuel metering precision under rail pressures that routinely exceed 1,800 bar. Workshops servicing Isuzu, Hino, and Mitsubishi Fuso powerplants recognise this element as the primary wear point responsible for gradual rail pressure decay. Rather than addressing symptoms through electronic compensations, replacing this plunger restores hydraulic efficiency directly at the source-the pumping chamber itself.

Every 094150-0312 unit leaves the production line with plunger-to-barrel clearances held within 2.5 to 3.8 micrometres, a range that minimises parasitic fuel slippage past the pumping lands. The barrel bore receives a multi-stage honing process that generates a cross-hatch pattern optimised for oil retention during the initial run-in period, while the plunger's working surfaces undergo a proprietary nitrocarburising treatment that elevates surface hardness beyond 60 HRC without sacrificing core toughness. This metallurgical approach resists the micro-welding phenomena commonly observed when contaminated fuel introduces abrasive silica particles into the high-pressure circuit. The green anodised finish on the plunger head is not merely cosmetic; it provides a visual check for technicians during bench assembly, confirming that this variant carries the correct helix angle and spill port timing for the listed pump series.

This plunger set directly supersedes worn elements within pump assemblies originally fitted to 4-cylinder and 6-cylinder diesel engines from the early 2000s through to current production models that still utilise the HP0 platform. Workshop records indicate that pump numbers 094000-0101 and 094000-0166 appear predominantly in medium-duty truck applications, while numbers 0305, 0310, and 0360 are more frequently encountered in bus and coach fleets operating on extended service intervals. The remaining pump references-0400, 0490, and 0500-are common in agricultural and stationary power units where duty cycles involve sustained high-load operation. Rather than stocking multiple plunger variants for each pump number, this single assembly covers the full range, simplifying parts inventory for service centres that handle mixed fleets. However, always confirm that the existing control sleeve and delivery valve holder show no signs of fretting corrosion before proceeding with installation.

Installation begins with a thorough inspection of the pump housing bore, where any scoring deeper than 0.01mm warrants housing replacement regardless of the new plunger's condition. Prior to inserting the barrel, lubricate both the bore and the plunger's exterior with calibrated test fluid-never use assembly grease, as its viscosity interferes with the initial priming stroke. Rotate the plunger within the barrel to verify smooth reciprocation without any point of resistance, then align the anti-rotation pin with the corresponding slot in the pump housing. The flange orientation carries particular significance: positioning the part number stamp away from the rack side ensures that the spill port opens at the correct crankshaft angle during the delivery stroke. Once seated, perform a preliminary rack stroke measurement using a dial gauge. A reading outside 0.15mm tolerance from the previous element's travel indicates that the shim pack beneath the barrel requires adjustment. Tighten the delivery valve holder to 49 N·m in a single progressive motion-stepped torquing tends to induce barrel distortion that manifests as intermittent sticking during hot operation.

Delaying plunger replacement until the pump exhibits audible hunting or visible smoke at idle forces the electronic governor to apply excessive current to the suction control valve, a compensatory behaviour that generates additional heat within the pump housing and accelerates degradation of the internal O-rings and bearing surfaces. Replacing the 094150-0312 at the first indication of rail pressure deviation-typically a 5% drop in observed rail pressure versus commanded pressure at full rack-preserves the integrity of downstream injectors, which remain the most expensive single component in the entire fuel system. Independent laboratory tests have demonstrated that a fresh plunger restores volumetric efficiency to 97% of a new pump's output, compared to 72% for a unit that has exceeded 200,000 kilometres of operation. When factored against the labour cost of pump removal and disassembly, the component's price represents less than 15% of a complete pump head exchange, making this intervention one of the highest-return maintenance actions available to the commercial workshop.

Q1: Can I install this plunger if my pump body number is not listed but visually appears identical?
No. The listed pump numbers-0101, 0166, 0305, 0310, 0360, 0400, 0490, and 0500-correspond to specific plunger lead angles and spill port diameters. Using this element in an unlisted pump body alters injection timing by 2–3 crankshaft degrees, which is sufficient to trigger diagnostic trouble codes (P0087, P0088) or cause combustion roughness.

Q2: How can I distinguish a genuine 094150-0312 from an inferior copy during receiving inspection?
Authentic units feature a laser-etched alphanumeric batch code on the barrel flange, visible only under oblique lighting. Counterfeit versions typically omit this marking or present it as a painted stencil. Additionally, measure the plunger diameter at three points along its stroke; genuine units maintain consistency within 0.001mm, while copies often exhibit taper.

Q3: What is the typical labour time for replacing this plunger in a workshop setting?
For a technician familiar with HP0 disassembly procedures, bench time averages 2.5 to 3.0 hours inclusive of pump removal from the engine, teardown, cleaning, reassembly, and test stand calibration. First-time installers should budget an additional hour for careful shim selection and rack travel verification.

Q4: Does replacing only the plunger without the delivery valve affect overall pump performance?
The delivery valve functions independently of the plunger element; however, if the vehicle history includes previous contamination events, inspect the valve's spring for sag or the seat for pitting. Replacing the plunger alone addresses metering accuracy but will not resolve pressure-holding issues during dwell periods if the valve leaks.

Q5: Are there any special break-in procedures required after installing this plunger?
No specific break-in protocol exists for the plunger itself. However, prime the pump thoroughly using an external hand primer before the first start to prevent dry-scoring. Run the engine at elevated idle (1,200 RPM) for three minutes while bleeding air from the high-pressure lines, then perform a full-load acceleration test to confirm rail pressure tracking.

Q6: What immediate performance changes should the driver expect after replacement?
Restored throttle response, elimination of low-speed stumble, and a noticeable reduction in diesel knock during cold start are the most commonly reported improvements. Fuel consumption typically improves by 4–6% under highway cruising conditions, as the injection system no longer requires timing advancement to compensate for plunger slippage.
