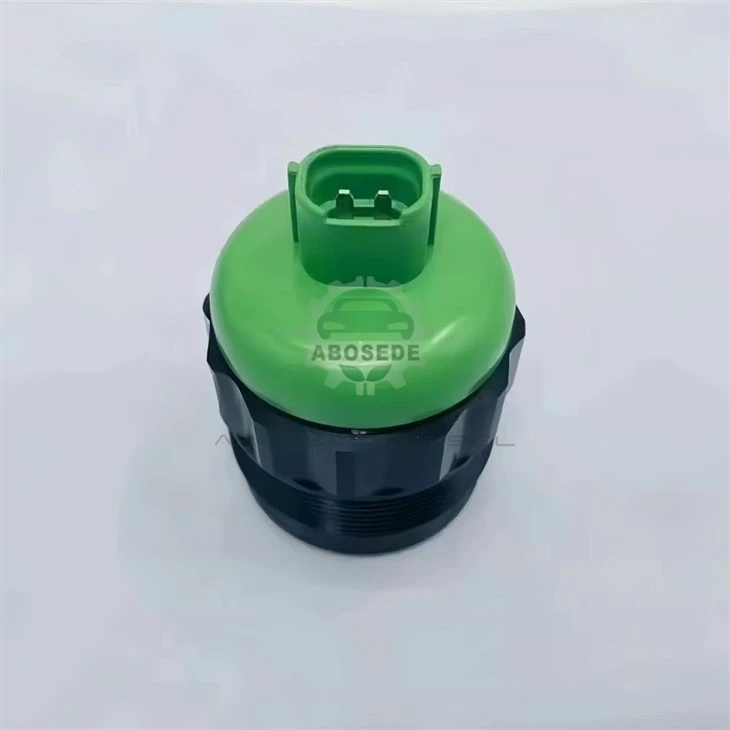

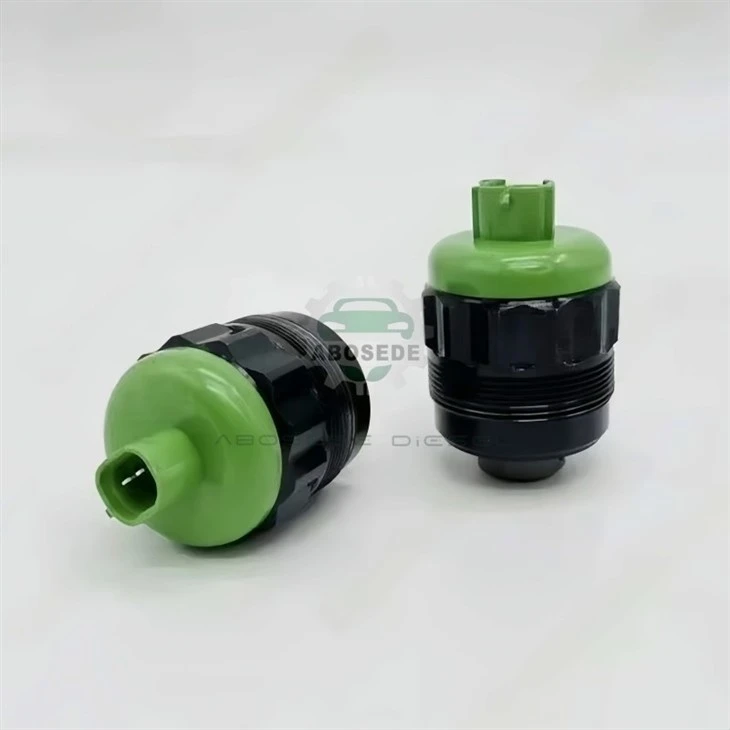

095300-0040 Plunger & Barrel Assembly – Single PCV, Green Finish

That truck has been parked in the corner bay for three days now. The driver is calling every four hours. The fleet manager is starting to ask about loaner units. And the diagnostic trouble code still points to rail pressure deviation, even after you swapped the PCV and cleaned the suction control filter. This is the moment when a shop either commits to opening the pump head or loses the customer to the dealer down the road. The 095300-0040 plunger and barrel set is what you need inside that Denso HP0 housing to get the unit back on the road-not next week, but before the end of your shift. Configured with a single PCV layout and finished with the recognisable green anti-friction layer, this plunger replaces the exact worn element that causes hot-start misery and progressive power loss, without forcing your shop to absorb the cost of a complete pump exchange.

Nothing damages a diesel shop's reputation faster than a truck that returns within 48 hours with the same complaint. In the HP0 pump, the plunger-to-barrel clearance is the primary variable that governs volumetric efficiency. As that clearance grows from wear-fuel-bound abrasives are the usual culprit-the pumping element loses its ability to seal during the compression stroke. The ECU responds by demanding longer injection pulses, which masks the problem temporarily while raising exhaust temperatures and hurting fuel economy. The 095300-0040 addresses this regression at its mechanical root. The green surface layer is not decorative; it reduces the initial micro-welding tendency that occurs when a new plunger beds into a used barrel bore, a detail that directly influences whether your rebuild holds calibration after 500 miles of loaded driving. The single PCV porting matches the hydraulic circuit of the specific HP0 head, meaning the control valve receives the correct pressure feedback for stable metering.

Parts room capital is finite, and tying it up in slow-moving plunger variants is a luxury most independent shops cannot afford. This assembly cross-references to pump numbers 0101, 0166, 0305, 0310, 0360, 0400, 0490, and 0500-eight distinct pump populations that roll through heavy-duty facilities with predictable frequency. For the service manager, this means one shelf position handles the majority of HP0 plunger failures encountered in routine overhaul work. No second-guessing when the parts clerk pulls the box; no Saturday morning panic when the listed supersession does not match the pump tag. The single PCV configuration is the critical differentiator here-pumps with dual-valve arrangements require a different plunger crown geometry, and mixing them invites hydraulic lock or zero delivery. Keeping this SKU in stock positions your shop to offer same-day pump rehabilitation, a service differentiator that turns one-off customers into repeat fleet accounts.

A plunger replacement that fails prematurely rarely reflects on the part itself-it exposes gaps in workshop procedure. The 095300-0040 arrives as a matched pair; the plunger and its specific barrel are lapped together and must never be separated. Before installation, the pump housing bore demands meticulous cleaning to eliminate residual lapping paste and ferrous sediment from the previous plunger's wear pattern. The most frequent post-rebuild failure originates from barrel distortion caused by uneven bolt torquing. Tightening the head retaining fasteners to the specified value in a staggered sequence prevents ovalisation, which would otherwise create an internal leak path that mimics a worn plunger within the first operational week. Additionally, the sealing elastomers surrounding the single PCV port should be renewed simultaneously; aged O-rings permit air ingestion on the suction stroke, producing erratic idle behaviour that drives technicians into unnecessary diagnostic loops involving sensors and wiring harnesses.

Every additional operating hour with an excessively worn plunger generates fine metallic particles that enter the return fuel circuit. Those particles do not stay contained-they recirculate toward the injector control valves, gradually eroding the servo pistons and altering pilot injection accuracy. The workshop that waits for a full pump seizure before acting forfeits the opportunity to perform a clean plunger swap; instead, they face the labour-intensive task of flushing the entire fuel system and replacing injectors. From a business standpoint, the 095300-0040 represents an intervention point that preserves both the customer's power unit and the shop's profit margin on the job. The green coating and single PCV geometry maintain the pump's original delivery characteristics, enabling the ECU to continue operating within its mapped fuel tables without requiring recalibration-a detail that keeps total job time predictable and minimises the risk of post-repair drivability complaints.

Q1: For a shop that handles three to four HP0 pump jobs per month, what is the recommended stocking level for this plunger set?
A: Maintain a minimum of four units on hand-two for immediate jobs and two as buffer against supply chain fluctuations. The 095300-0040 sees consistent turnover in facilities servicing Japanese medium-duty fleets, and backorders during peak harvest or holiday shipping seasons can delay repairs beyond acceptable customer tolerance.

Q2: How does the green-coated plunger behave in pumps that have previously run contaminated fuel with high water content?
A: The green surface treatment offers enhanced resistance against micro-pitting initiation compared to uncoated variants. However, water-ingested pumps often exhibit bore scoring that extends beyond the plunger contact area; inspect the barrel interior thoroughly before committing to installation, as housing damage will compromise the new unit regardless of coating quality.

Q3: Can we batch-order these plungers for a scheduled overhaul programme across multiple fleet vehicles?
A: Bulk ordering is accommodated with factory-sealed anti-corrosion packaging suitable for 24-month storage. For fleet programmes with consistent turnover, we recommend staggering purchase orders to maintain batch traceability, allowing your shop to isolate any manufacturing variance should it appear across multiple installations.

Q4: What is the most reliable on-vehicle validation method after plunger installation, short of a test bench run?
A: Perform a full prime cycle to purge air, then monitor commanded versus actual rail pressure during a loaded road test. A deviation exceeding 50 bar under full throttle indicates either residual air, incorrect PCV torque, or barrel distortion from bolt overtightening. Stable pressure tracking within 30 bar confirms a successful installation.

Q5: At what point does housing wear render this plunger set unsuitable, regardless of the plunger's new condition?
A: If the pump housing bore exhibits visible scoring or the roller tappet shows flat-spotting or pitting, the structural integrity of the pumping chamber is compromised. Installing the 095300-0040 in such a housing will result in rapid secondary wear and a comeback within 2000 kilometres. In these cases, recommend a complete exchange pump and retain the plunger for a healthier core.

Q6: Does replacing this plunger alone address injector imbalance codes, or is injector servicing also required?
A: The plunger restores rail pressure generation but does not correct individual injector flow variation. If injector imbalance codes were present before the pump work, they will persist after plunger replacement. Advise the customer to run a contribution test post-repair to determine whether injector servicing completes the fuel system restoration.
