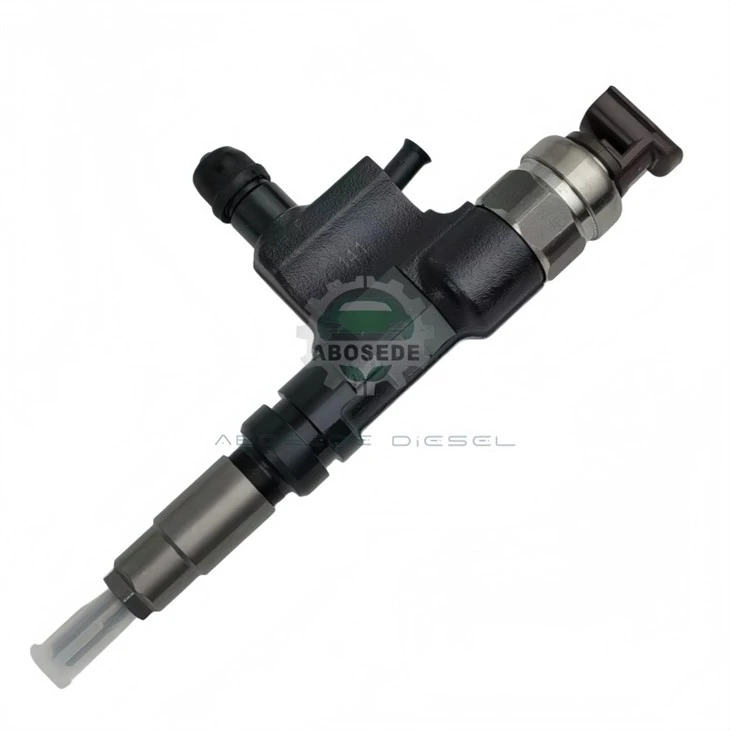

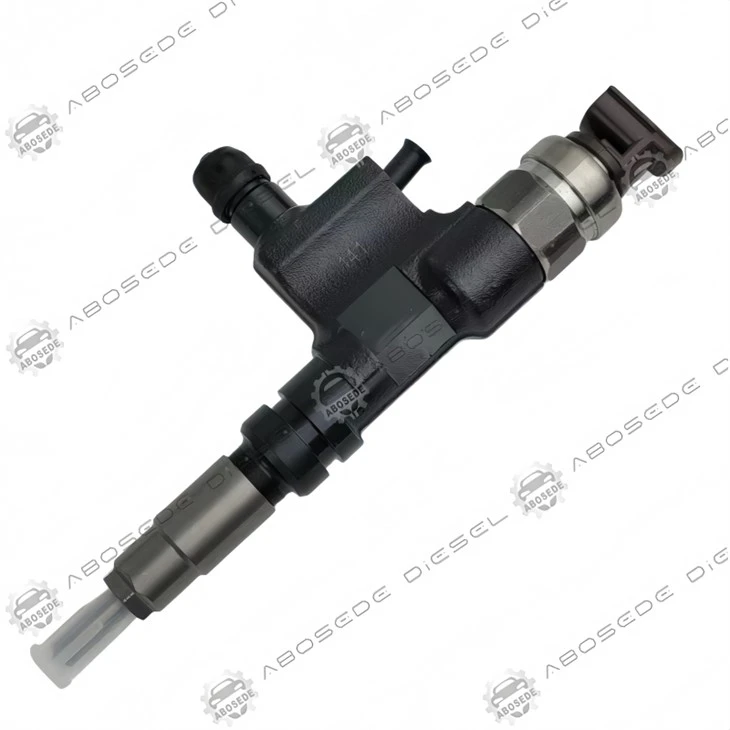

095000-5320: Precision Fuel Metering Actuator For Heavy-Duty Common Rail Architectures

In the domain of high-pressure diesel injection, the difference between nominal performance and peak efficiency often narrows down to the injector's internal hydraulic balance. The 095000-5320 emerges as a dedicated fuel metering actuator that redefines the relationship between solenoid dwell time and actual injected volume across the entire engine operating map. Unlike conventional injectors that prioritize peak flow, this unit focuses on linearity-ensuring that every millisecond of electrical pulse translates into a predictable and repeatable fuel quantity, regardless of rail pressure fluctuations or fuel temperature drift. This makes it an indispensable component for fleet operators who demand consistent torque delivery and transparent diagnostic feedback.

The 095000-5320 operates with a nominal rail pressure ceiling of 1,600 bar, deliberately tuned for medium-duty commercial engines where durability outweighs extreme pressure spikes. Its nozzle employs a 6-hole configuration, with each orifice laser-drilled to 0.132 mm, producing a spray cone angle of 156°-optimized for shallow-bowl piston designs commonly found in Asian and European 5-liter to 7-liter displacement engines. The injector's flow coefficient (Cd) is rated at 0.78, ensuring a balance between flow velocity and atomization quality. Static flow measurement at 100 bar back pressure yields 395 cc/min, with a linearity error of less than ±1.2% across the 0.4–2.8 ms energizing time window. This precision is achieved through a ground armature stroke of 0.22 mm, which reduces the magnetic flux leakage and stabilizes the opening delay to a consistent 0.18 ms at 12 V supply.

Electrically, the 095000-5320 presents a solenoid resistance of 0.95 Ω at 20°C, with an inductance of 1.8 mH, making it compatible with peak-and-hold driver topologies that deliver a 15 A peak current followed by a 6 A hold current. The injector's internal flyback diode protection is integrated into the connector body, reducing electromagnetic interference (EMI) that can affect adjacent sensors. It communicates seamlessly with ECU strategies that employ adaptive learning algorithms-specifically, it supports the "injection quantity learning" routine via rail pressure drop evaluation, allowing the ECU to compensate for injector-to-injector variance without requiring manual coding. This feature is particularly valuable for aftermarket tuners who remap ECUs for improved low-end grunt.

One of the standout engineering achievements in the 095000-5320 is its low dynamic leakage, measured at a mere 12 ml/min at maximum rail pressure. This is accomplished by a precision-ground needle-guide clearance of 4.5 microns, which maintains viscosity-independent sealing across a temperature range of –25°C to 120°C. The injector body incorporates a thermal compensator that automatically adjusts the needle lift by 2 microns per 10°C rise, counteracting the fuel's viscosity drop and preserving the injected mass within ±2% of the target value. This thermal self-regulation eliminates the need for external temperature correction maps, simplifying the calibration effort for OEM integration engineers.

While not tied to a single vehicle model, the 095000-5320 is broadly applicable to engines using the Denso HP3 pump series with a 2.5 mm plunger diameter. It is frequently specified for powertrains in Isuzu 6HK1, UD Trucks, and certain Mitsubishi Fuso variants operating in Euro V and Tier 4i emission territories. The injector's installation envelope matches the standard JIS D 4203 port configuration, with a projection depth of 4.8 mm into the cylinder head. Notably, it incorporates a redesigned inlet metering screen that traps particles down to 10 microns, reducing the risk of seat erosion caused by contaminated fuel-a common failure mode in regions with inconsistent fuel filtration standards.

Can the 095000-5320 be used as a direct swap for the 095000-5321 if the 5321 is back-ordered?
While both share the same connector and mounting footprint, the 5320 has a lower flow rate (395 vs 420 cc/min) and a 6-hole nozzle versus 7-hole. Swapping requires ECU recalibration of the injected mass map; otherwise, the engine will run lean, leading to higher EGT and reduced power.

What fuel filtration grade is mandatory for the 095000-5320 to guarantee full service life?
We recommend a primary filter with 30 μm absolute and a secondary filter of 5 μm efficiency (≥99%). The built-in inlet screen is only a backup; inadequate pre-filtration will cause the needle guide to seize due to lapping particles within 50,000 km.

How does this injector handle water-contaminated diesel, and what immediate action is advised?
The CrN coating offers some corrosion resistance, but water content above 0.2% can emulsify the lubricity additives and accelerate seat wear. If water-in-fuel warning appears, drain the water separator immediately and perform a return-flow test-if return exceeds 25 ml/min, the injector should be bench-tested.

Is the 095000-5320 compatible with CNG-diesel dual-fuel conversions?
Yes, but only as the diesel pilot injector. Its rapid closing time ensures precise pilot quantity for igniting the CNG charge. However, the rail pressure must be reduced to 1,200 bar to prevent over-penetration of the diesel spray in the larger CNG combustion volume.

What is the significance of the 156° spray angle for piston bowl designs?
This angle targets bowls with a re-entrant lip and a 58 mm diameter. It ensures that fuel droplets impinge on the bowl wall at an optimal 45° incidence, promoting wall-guided mixing. A mismatch with narrower bowls will cause wall wetting and increased soot.

How often should the injector's solenoid resistance be checked for drift?
Resistance should be measured every 200,000 km. A drift beyond ±0.15 Ω indicates coil degradation due to thermal aging, which alters the opening delay and can cause misfires at high RPM.
