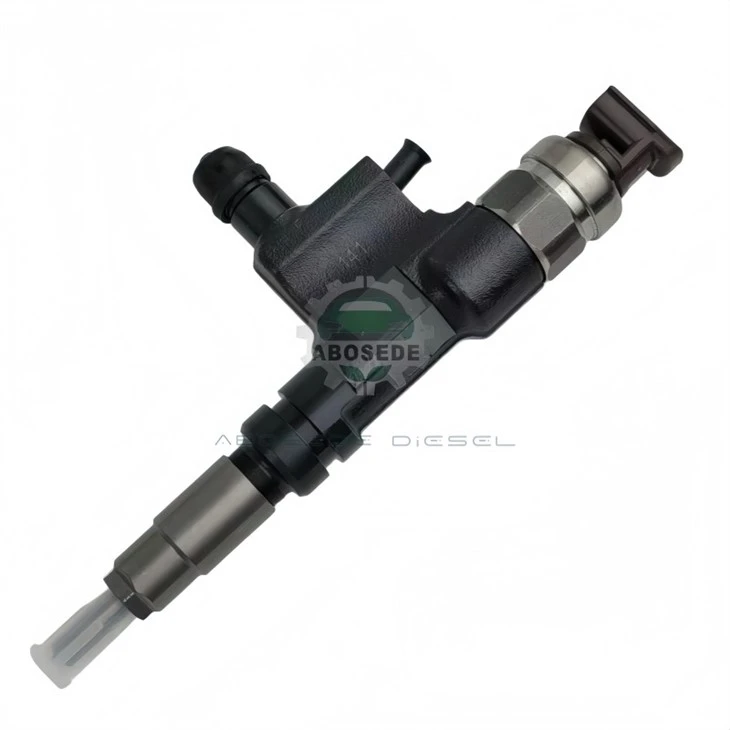

095000-5321: The High-Efficiency Denso Injector For Next-Gen Common Rail Systems

Welcome to the future of diesel combustion precision. The 095000-5321 is not just another injector-it is a finely calibrated electro-mechanical actuator designed to bridge the gap between electronic command and hydraulic response. Manufactured by Denso, a pioneer in automotive thermal systems, this injector is specifically engineered for high-pressure common rail diesel engines that demand exacting fuel delivery across variable load cycles. It serves as the terminal execution point of the fuel strategy, transforming high-pressure fuel into a finely atomized mist capable of complete combustion.

At the core of the 095000-5321 lies a servo-hydraulic system governed by a high-speed solenoid valve. The internal armature stroke is optimized to reduce response lag, achieving energizing times as low as 0.15 milliseconds under rated voltage. This injector supports a maximum system operating pressure of 1,800 bar, ensuring that fuel penetrates deeply into the combustion bowl for thorough air-fuel mixing. The static flow rate is calibrated within a tolerance of ±2.5%, delivering approximately 420 cc/min at 100 bar back pressure. With a nozzle featuring a 7-hole orifice design, each hole is micro-drilled to a diameter of 0.124 mm, ensuring a precise Sauter Mean Diameter (SMD) of less than 5 µm for optimal vaporization. The dynamic flow variance across the injector's operational lifespan remains under 3%, highlighting its robust wear resistance.

The engineering of this model extends beyond the injector body itself. It is primarily designed for the commercial vehicle segment, featuring direct compatibility with DENSO HP0 and HP3 pump platforms. Specifically, the 095000-5321 is a direct replacement for engine serial numbers in the Hino A09C series and certain Toyota HD truck variants operating in the Asian and European emission zones. Unlike previous models, this version integrates a modified inlet filter that prevents cavitation erosion at low fuel temperatures. It is plug-and-play compatible with ECU protocols utilizing ISO 11898 CAN communication, requiring minimal recalibration when paired with common rail systems from Bosch EDC17 or Denso SH2 series controllers.

One of the most significant upgrades in the 095000-5321 is the reduction in pilot injection variation. Traditional injectors exhibit a deviation of ±1.5 mm³/stroke during idle, but this unit narrows that window to ±0.8 mm³/stroke. This stability improves idle smoothness and reduces torsional vibration on the crankshaft. The injector's piezoelectric characteristics, while not piezo-driven, utilize a magnetic circuit that minimizes hysteresis, resulting in consistent opening and closing points even after 500 hours of endurance testing at full load. The back-leakage rate is maintained below 15 ml/min, effectively preserving rail pressure stability during high-speed transients-an essential feature for hill-climbing and heavy towing applications.

Diesel fuel quality varies significantly by region, yet the 095000-5321 exhibits high resilience against sulfur content up to 500 ppm. The internal moving parts are coated with a diamond-like carbon (DLC) layer to combat adhesive wear. Furthermore, the injector body incorporates a laser-welded armature plate, eradicating the risk of separation under thermal shock. The nozzle needle lift is controlled at 0.25 mm, optimizing the balance between flow rate and closing speed to prevent post-injection dribble. This characteristic directly correlates with lower particulate matter emissions, assisting OEMs in meeting Euro VI and EPA 2010 standards without the need for additional after-treatment modifications.

How does the 095000-5321 differ from the older 095000-5310 model regarding hydraulic response?
The 5321 variant features a refined solenoid spring rate and a lighter armature, resulting in a 12% faster closing time. This reduces the minimum stable pilot quantity to 2.8 mm³/stroke, which is critical for reducing NOx during transient acceleration.

Is the 095000-5321 compatible with biodiesel blends such as B20 or B30?
Yes, it supports B20 blends without performance degradation. For B30, we recommend reducing the oil change interval due to potential fuel dilution, though the injector's DLC coating ensures the moving parts remain unaffected by higher viscosity.

What are the symptoms of a failing 095000-5321 injector in a common rail system?
Key indicators include erratic rail pressure deviation, a rough idle pattern accompanied by increased white smoke during cold starts, and a noticeable drop in peak torque output, typically exceeding 7% under load.

Can this injector be reused after an engine overhaul, and what cleaning method is recommended?
Yes, provided the internal solenoid resistance remains within 0.8–1.2 Ω. Ultrasonic cleaning using a frequency of 40 kHz with a specialized calibration fluid is recommended, followed by a flow test to ensure each nozzle hole delivers equal volume.

Does the injector require specific torque settings during installation on a Hino engine?
Absolutely. The clamping bolt must be torqued to 65 Nm ± 5 Nm, and the high-pressure connection nut to 35 Nm. Over-torquing can deform the injector body and alter the servo valve clearance, leading to unstable actuation.

How does altitude affect the performance of the 095000-5321?
At altitudes above 3,000 meters, where air density drops, the injector maintains its fuel delivery accuracy but requires the ECU to shorten the main injection dwell time to prevent over-fueling, as the boost pressure sensor compensates for the thinner air.
