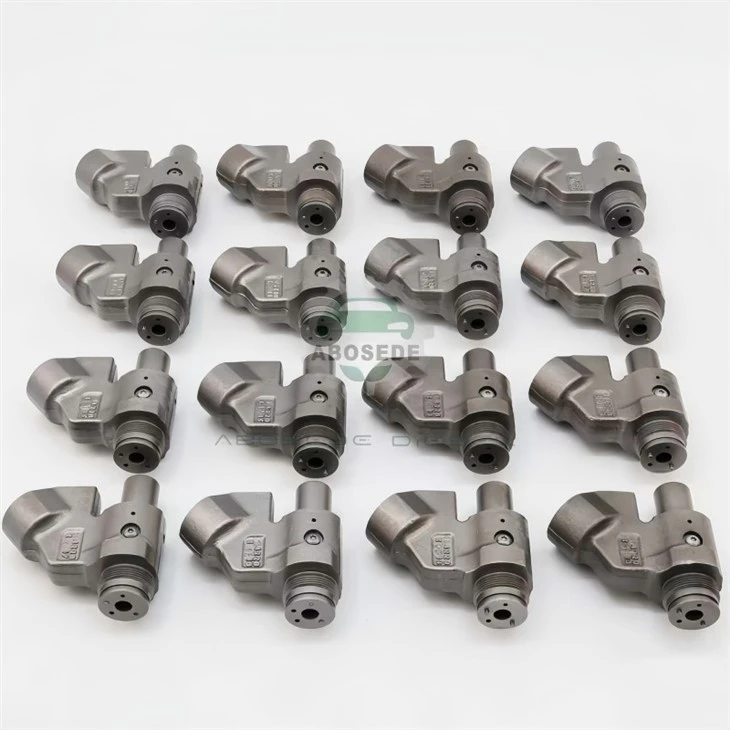

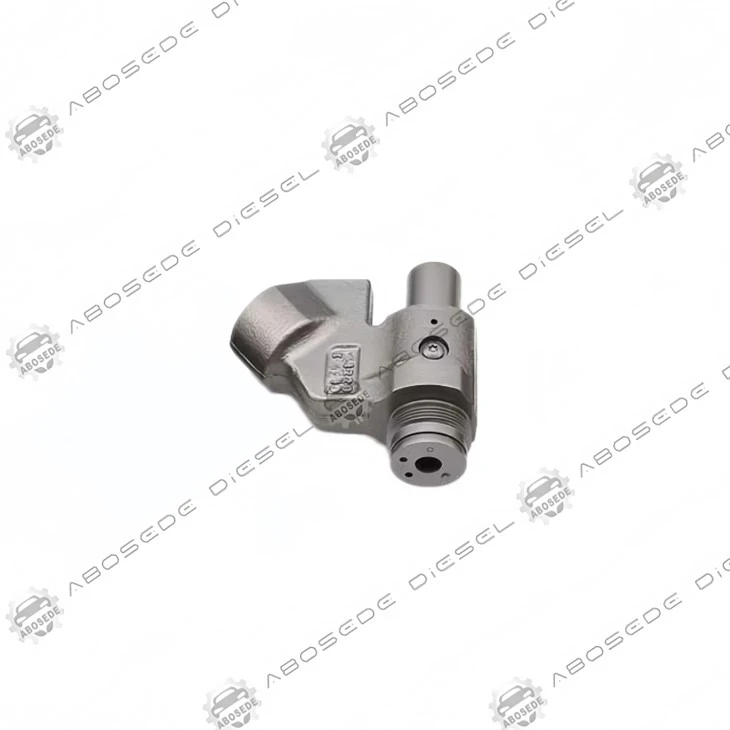

M11 Injector Body – Hydraulic Integrity And Structural Stability For High-Pressure Injection



In a mechanical unit injector like the Cummins M11 CELECT™, the injector body is often perceived as a passive housing-but in reality, it is the structural backbone that determines the injector's hydraulic integrity and dimensional stability. The injector body must withstand internal fuel pressures exceeding 1,600 bar, cyclic thermal loading from combustion gases, and the mechanical stress of a clamping force exceeding 40 kN-all while maintaining the precise alignment of the plunger, push rod, and nozzle. Any distortion of the injector body, even as small as 0.01 mm, can alter the plunger-to-bore clearance, increase internal leakage, and shift the injection timing. This M11 injector body is manufactured to zero-distortion specifications, using a stress-relieved forging and a precision-bored plunger guide, ensuring that the hydraulic components operate within their designed clearances for the entire service life.



The injector body is forged from SAE 4320 nickel-chromium-molybdenum steel, a material chosen for its combination of high strength (yield strength 950 MPa) and excellent machinability. After forging, the body undergoes a double heat treatment: first, a normalising cycle at 900 °C to refine the grain structure, followed by a hardening and tempering process (850 °C, oil quench, 600 °C temper) that achieves a uniform hardness of 28–32 HRC throughout the body. This hardness provides resistance to surface indentation from the retaining nut and the plunger spring seat, while maintaining sufficient toughness to absorb the impact loads from the plunger's reciprocating motion.

A critical feature is the stress-relief groove machined into the lower section of the body, just above the nozzle seat. This groove interrupts the stress path from the clamping force, preventing the development of a stress concentration at the nozzle seat-a common failure point in injector bodies that can lead to micro-cracking and eventual fracture. Finite element analysis (FEA) shows that this groove reduces the peak stress at the nozzle seat by 35 %.



The injector body contains a complex network of fuel passages that route high-pressure fuel from the inlet port to the nozzle, and return fuel from the spill port to the drain. The M11 injector body features a straight-through inlet passage (6.0 mm diameter) that minimises the pressure drop between the pump and the nozzle, and a tangential spill port that directs the spill flow away from the plunger guide, preventing cavitation erosion of the guide bore.

The plunger guide bore-the cylindrical hole in which the plunger reciprocates-is diamond-honed to a diameter of 12.5 mm with a roundness of 0.002 mm and a surface roughness of Ra 0.1 μm. This finish ensures that the plunger's radial clearance (0.012–0.018 mm) is maintained, limiting internal leakage to less than 4 ml/min at 1,600 bar. The guide bore also features a helical oil groove that distributes lubrication oil evenly, reducing friction and wear on the plunger's surface.



This injector body is a direct structural replacement for the following M11 injector part numbers, which share the identical body geometry, thread sizes, and mounting features:

Injector P/N	Injector P/N	Injector P/N	Injector P/N
3037772	3411754	4902921	3411756
3081319	3411755	4903084	–
3087557	3411758	4903319	–
3095040	3411845	4903472	–
3411752	4026222	4928171	–
3411753	4061851	4928517	–

Important: While the body is mechanically identical, the plunger and barrel assembly and the nozzle are specific to each injector version. When replacing the body, you must transfer the internal components from the old injector (or use new matched components) and ensure that the injector is re-calibrated on a test bench. The body alone does not determine the injector's flow characteristics.



Plunger guide bore – Honed to a diameter of 12.5 mm with a straightness of 0.002 mm over the entire length, ensuring the plunger moves without binding.

Push rod bore – Bored to 14.0 mm with a finish of Ra 0.4 μm, providing a smooth guide for the push rod.

Nozzle seat – Machined to a 60° cone angle with a surface finish of Ra 0.2 μm, ensuring a leak-free seal with the nozzle.

Mounting flange – The two M8×1.25 threaded holes are located to a position tolerance of ±0.05 mm, guaranteeing correct alignment with the cylinder head.

Fuel return port – Tapped to M14×1.5, with a seat designed for a copper crush washer.



Q1: Can I use the injector body from a CELECT injector on an HPI injector, or vice versa?
The body geometry is identical, but the HPI injector uses a different plunger and a higher opening pressure. While the body can physically fit, the internal clearances and the hydraulic circuit are optimised for the specific plunger type. Using a CELECT body with HPI internals may result in incorrect injection timing or leakage. Always match the body to the injector type.

Q2: How can I tell if the injector body is worn beyond service limits?
The best method is to measure the plunger guide bore diameter using an air gauge. If the bore is more than 0.005 mm larger than the nominal dimension, the clearance is excessive, and the body is unserviceable. Also, inspect the nozzle seat; if there is a visible indentation or pitting, the body must be replaced.

Q3: Can I ream out a scored plunger guide bore and install an oversized plunger?
Technically yes, but this is not recommended. Oversized plungers are not commonly available for the M11, and reaming the bore would remove the hardened surface layer, reducing the bore's wear resistance. It is more economical and reliable to replace the injector body with a new one.

Q4: What is the torque for the injector body mounting bolts?
The M8×1.25 bolts that secure the injector body to the cylinder head should be torqued to 25 N·m for cast iron heads and 18 N·m for aluminium heads. Use a thread lubricant to ensure accurate torque readings.

Q5: Is there a recommended procedure for cleaning the injector body's fuel passages?
Soak the body in a commercial diesel injector cleaner (e.g., Bosch or DENSO recommended) for 1 hour, then use a set of cleaning wires (0.5 mm to 3.0 mm) to gently push through the passages. Follow with compressed air. Do not use abrasive tools, as they can damage the fine surface finish of the guide bore and the seat.

Q6: What is the expected service life of an injector body in a high-hour engine?
With proper fuel filtration (10-micron absolute) and regular oil changes, the injector body can last the life of the engine-often exceeding 20,000 hours. However, if the engine has experienced water ingress or fuel contamination, the body may need replacement earlier. Regular inspection at every major overhaul is recommended.
