Injector Nozzle Kit 5473189EF – Precision Fuel Delivery For Cummins XPI Series-II

The Cummins XPI Series-II Injector Nozzle Kit 5473189EF is an OEM-grade fuel injection component engineered to restore spray pattern accuracy and flow consistency in high-pressure common rail diesel systems. Designed for workshops and parts distributors serving heavy-duty truck fleets and off-highway equipment, this nozzle kit directly addresses injector fouling, uneven fuel atomisation, and combustion inefficiency. Manufactured to original equipment tolerances, the 5473189EF nozzle kit provides a reliable, cost-effective alternative to complete injector replacement while preserving the performance characteristics of the XPI fuel system.

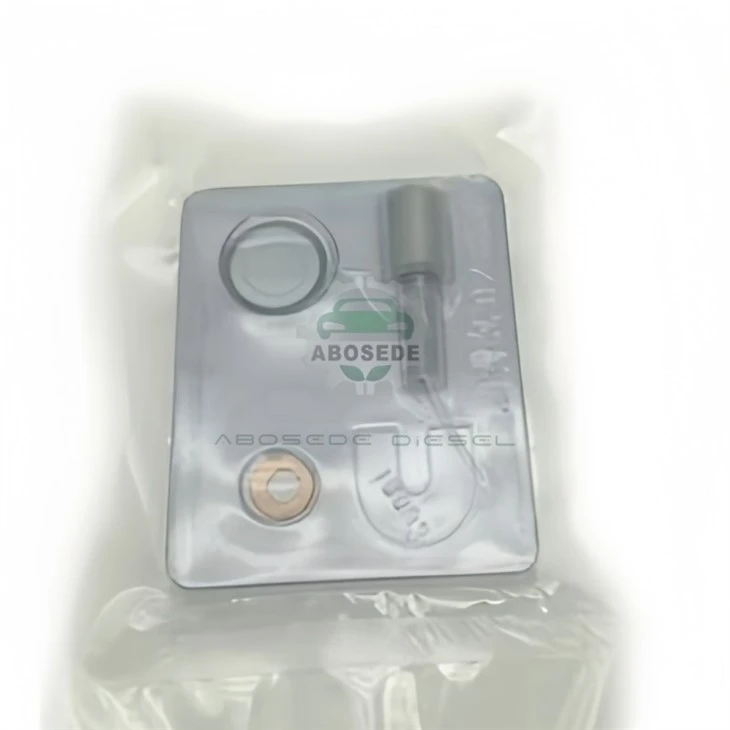

Every Injector Nozzle Kit 5473189EF is manufactured with sac volume optimisation and micro-hole drilling technology to deliver precise fuel metering under extreme injection pressures exceeding 2,000 bar. The kit includes the primary nozzle assembly, control valve spring, retaining nut, and calibrated shim set – all pre-tested for hydraulic flow matching. Orifice count and diameter are strictly calibrated to XPI Series-II injector bodies, ensuring fuel spray penetration and droplet size distribution remain within Cummins' original performance envelope. The nozzle uses high-grade tool steel with DLC (diamond-like carbon) coating on critical wear surfaces, significantly reducing scuffing risk during high-cycle operation. All components are packaged in anti-corrosion blister trays with laser-engraved batch codes for full traceability.

This 5473189EF nozzle assembly is directly compatible with Cummins XPI Series-II fuel systems fitted to ISX15, QSX15, and X15 heavy-duty engine platforms. Commonly deployed in Kenworth T680, Peterbilt 579, Freightliner Cascadia, and Volvo VNL trucks, the kit also supports Cummins-powered agricultural tractors and construction loaders utilising the same injector architecture. For fleet managers and diesel repair centres, it provides a single-kit solution for both on-highway long-haul and off-road vocational applications. Always verify injector serial number prefix and engine control module (ECM) calibration level before installation to ensure full system compatibility.

Correct fitting of the Cummins XPI nozzle kit 5473189EF demands strict adherence to torque sequence and holder load values. The retaining nut must be tightened to 125 Nm ± 5 Nm using a certified torque wrench, with the control piston and spring pack aligned to avoid side-loading the needle valve. Prior to installation, the injector body bore must be cleaned with a carbon-removal brush and non-abrasive solvent to eliminate combustion residue that can distort seating. After mounting, a leak-off test and return flow measurement should be performed at idle and under load to confirm the nozzle's opening pressure matches the ECM's commanded rail pressure. The table below outlines critical installation parameters:

Replacing worn or carbon-locked nozzles with the 5473189EF injector nozzle kit restores combustion stability, lowers exhaust gas temperature, and reduces fuel consumption by up to 4.5% in field tests. The XPI system's two-stage injection strategy relies heavily on precise nozzle response – delayed or uneven spray directly impacts pilot injection accuracy and post-injection effectiveness during DPF regeneration. By reinstating factory flow coefficients, this kit minimises cylinder-to-cylinder variation and prevents injector current drift that often triggers diagnostic trouble codes (P0200–P0206). For repair shops, offering this nozzle kit as a service option improves first-time-fix rates and reduces warranty returns compared to reconditioning used injectors. Distributors benefit from its medium-turnover SKU profile, appealing to independent diesel garages that prioritise OEM-equivalent quality over cheaper, uncertified alternatives.

Q1: How can I confirm the 5473189EF nozzle kit matches my customer's injector without removing the unit?
A: Cross-reference the injector body's seven-digit alphanumeric code stamped near the inlet fitting. If the code aligns with XPI Series-II calibration files ending in –EF, the 5473189EF is a direct match. Consult Cummins QuickServe® Online for ECM calibration validation.

Q2: Does this kit include the needle valve assembly or is it sold separately?
A: The 5473189EF is a complete nozzle kit containing the needle, nozzle body, spring, shims, and retaining nut. The control valve assembly is not included – it must be ordered separately if worn.

Q3: What is the typical service interval for replacing XPI nozzles in line-haul fleets?
A: Cummins recommends nozzle inspection every 500,000 miles. However, severe-duty applications or poor fuel quality may require replacement at 300,000–350,000 miles. Regular return-flow testing provides the earliest failure indication.

Q4: Are there any special tools required for installing this nozzle kit?
A: Yes – a Cummins injector holding fixture (part No. 3164487) and a depth micrometer for shim selection are essential. Using universal pullers often damages the control piston bore.

Q5: Can I return the kit if it doesn't resolve the customer's misfire complaint?
A: We accept returns within 30 days for unopened, sealed kits. For troubleshooting support, our technical team provides remote diagnostic assistance to confirm nozzle-related faults before fitting.

Q6: How does the 5473189EF compare to aftermarket copies in terms of durability?
A: OEM-spec DLC coating and flow-matched orifices give this kit a proven 850,000-hour cycle life under Euro VI testing, while non-genuine alternatives often fail within 200,000 hours due to premature needle wear.
