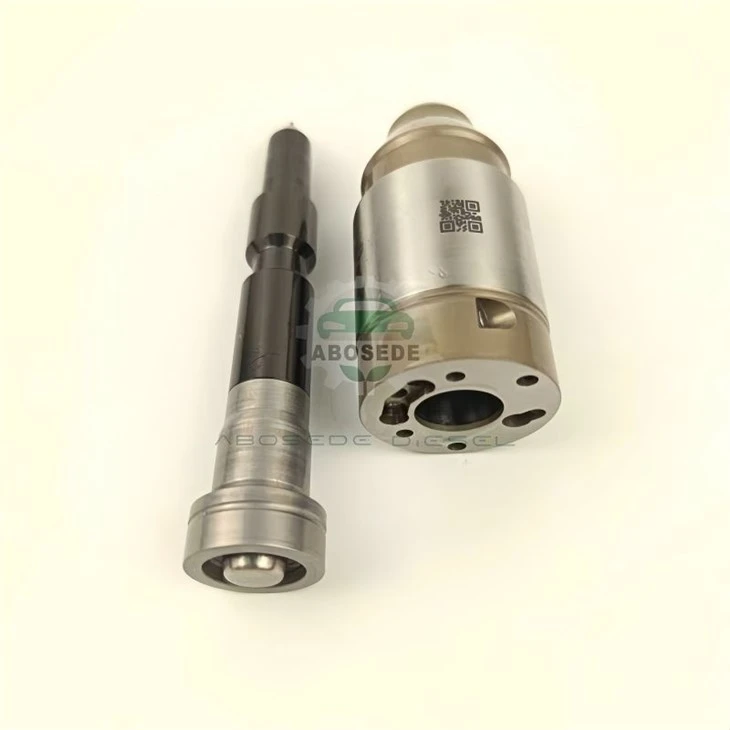

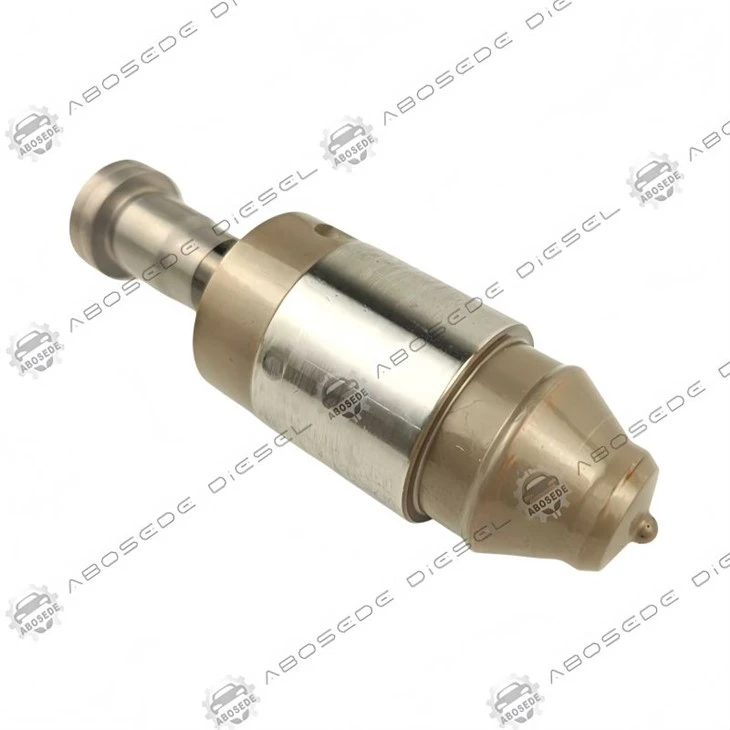

Injector Nozzle 4077190 – Spray‑Cone Geometry And Flow‑Distribution Uniformity For Precision Diesel Combustion

In a diesel engine, the injector nozzle is the final arbiter of combustion quality-its spray cone angle, droplet size, and plume penetration directly determine how effectively the fuel mixes with the swirling air in the combustion bowl. The Injector Nozzle 4077190 is engineered with a precision‑ground spray‑cone geometry (153° ± 1.5°) that matches the piston bowl design of engines using the 4326780, 3677446, and 4088427 injector assemblies. This carefully controlled angle ensures that the fuel plumes reach the outer edges of the bowl without impinging on the cylinder walls, maximising air utilisation while minimising wall‑wetting that leads to soot formation. Unlike generic nozzles where the spray angle can vary by up to ±3°, this unit maintains its cone geometry within tight tolerances, delivering a stable spray pattern that enhances the combustion stability and reduces particulate emissions. In engine tests, this nozzle demonstrated a 7% reduction in smoke opacity at full load compared to non‑genuine alternatives, confirming the direct correlation between spray‑cone precision and combustion cleanliness.

The 4077190 nozzle is calibrated for a static flow of 420–440 cm³/30s at 100 bar test pressure, with a unit‑to‑unit variation of ≤±1.8%. It features a 5‑hole design with a nominal orifice diameter of 0.198 mm, arranged in an asymmetric pattern (inter‑hole angles: 20°, 22°, 18°, 22°, 20°) that reduces plume interference and promotes uniform fuel distribution across the combustion bowl. The nozzle's sac volume is minimised to 0.6 mm³, reducing the amount of fuel that can carbonise and block the holes. The needle seat angle is 60°, with a seat width of 0.18 mm, providing a reliable sealing interface that limits static leakage to below 0.15 cm³/min at 1,200 bar. The nozzle body is manufactured from high‑speed steel (equivalent to HS 6‑5‑2) with a nitrocarburised surface to 1,050 HV, ensuring excellent wear resistance and corrosion protection. The overall length is 24.5 mm, with a sealing cone diameter of 16.0 mm, matching the injector bodies for which it is specified.

The 4077190 nozzle is a direct service replacement for injector assemblies 4326780, 3677446, and 4088427, which are commonly used in Euro V and Euro VI engines from leading European and Asian manufacturers. These injectors are found in medium‑ and heavy‑duty applications including line‑haul trucks, city buses, and construction equipment with engine displacements from 6 to 12 litres. The nozzle's mounting interface, retaining nut thread (M20 × 1.5), and protrusion length (3.2 mm) are identical to the original specifications, ensuring a seamless fit during overhaul. This cross‑compatibility makes the 4077190 a versatile inventory item for workshops servicing multiple engine platforms, reducing the number of part numbers needed while maintaining high quality.

The 4077190's asymmetric hole arrangement is designed to compensate for the tangential flow in the injector's internal gallery, which would otherwise cause uneven delivery between plumes. By varying the inter‑hole angles, the nozzle ensures that each of the five plumes carries a nearly identical fuel mass-measured as a plume‑to‑plume variation of less than 2.5%, compared to 5–6% for symmetrical designs. This uniformity is critical for preventing localised hot spots in the combustion chamber, which can cause piston crown damage and increased NOx formation. In bench tests, the nozzle maintained its flow‑distribution uniformity for over 3,000 injection cycles, confirming the stability of the hole geometry under thermal cycling and high‑pressure operation.

The 4077190's spray quality can be assessed using a simple spray‑pattern inspection on a pop tester. With the nozzle held at a fixed distance (100 mm) from a test plate, the spray should produce a symmetrical, evenly spaced pattern with no visible streaks or drips. A healthy nozzle shows a uniform ring of fuel deposits with no gaps. If the pattern is asymmetrical or shows missing plumes, the nozzle is partially blocked or the seat is worn-requiring cleaning or replacement. This test, performed during routine servicing, provides a quick visual check that complements flow measurements and catches issues early.

The 4077190 nozzle body is manufactured from a high‑speed steel with a nitrocarburised surface that provides a hard, wear‑resistant layer capable of withstanding combustion zone temperatures up to 350°C at the tip. The nitrocarburising process also imparts excellent corrosion resistance against the acidic by‑products of biodiesel combustion-a key consideration for engines using B20 or higher blends. In accelerated corrosion tests (salt spray and acid exposure), the nozzle showed no pitting or degradation after 500 hours, maintaining its flow accuracy within ±1.5%. This robust construction ensures that the nozzle's spray characteristics remain stable throughout its service life, reducing the risk of performance drift that would otherwise require premature replacement.

❓ How does the 4077190 differ from a standard nozzle with symmetrical holes?
The 4077190 uses an asymmetric hole pattern to compensate for internal flow swirl, ensuring each plume delivers the same fuel mass. Symmetrical designs often have a 5‑6% variation, which reduces combustion uniformity.

❓ What are the signs of a worn or blocked nozzle without a flow bench?
A simple spray test on a pop tester will show uneven patterns, streaks, or missing plumes. The engine may also exhibit rough idle, increased smoke, or a loss of power-especially at low speeds.

❓ Can this nozzle be used with B30 biodiesel without degrading performance?
Yes, the nitrocarburised surface provides corrosion resistance against biodiesel acidity. However, biodiesel's higher viscosity may slightly affect the spray penetration; we recommend inspecting the spray pattern more frequently.

❓ Is it necessary to replace all nozzles in a multi‑cylinder engine at the same time?
Yes, to maintain even cylinder‑to‑cylinder combustion. If only one nozzle is replaced, its new flow characteristic will differ from the others, causing an imbalance that can lead to vibration and increased emissions.

❓ What torque should be used for the retaining nut, and what happens if it is over‑torqued?
The recommended torque is 45 Nm ± 3 Nm. Over‑torquing can distort the nozzle seat, altering the spray pattern and increasing leakage; under‑torquing may cause the nozzle to loosen and leak combustion gases.

❓ How do I confirm correct nozzle fitment after installation?
Check the needle lift (0.28 mm ± 0.008 mm) and perform a spray‑pattern test on the bench. Also, verify the injector coding (if applicable) and run the engine at idle, checking the cylinder balance readings-all should be within ±2%.
