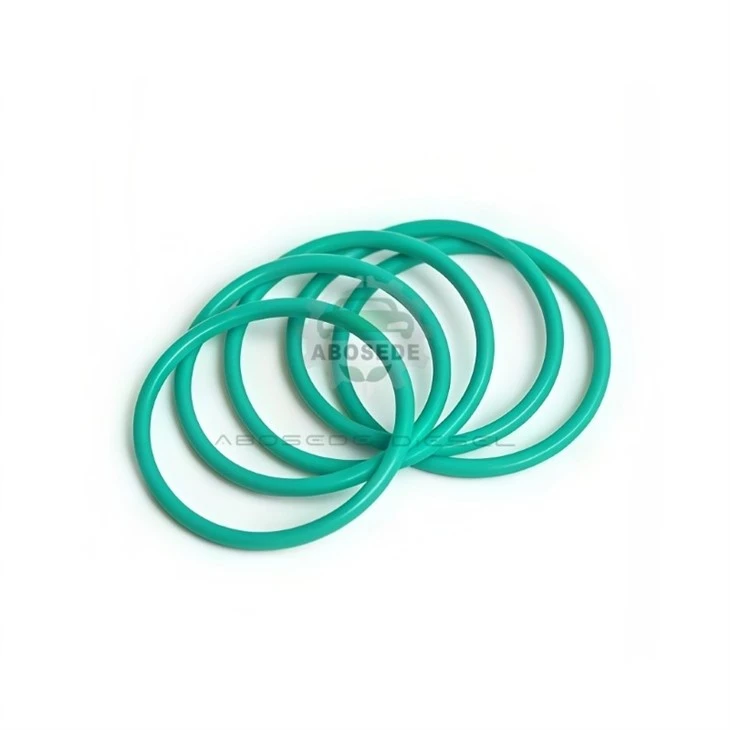

Cummins M11 Injector Seal Kit – Precision O-Ring Set For PT Fuel Systems

The Cummins M11 injector seal kit is a specialized service solution engineered to restore fuel containment integrity in the Pressure-Time (PT) fuel injection system. Designed for professional diesel workshops, this sealing kit eliminates parasitic fuel leakage at the injector-to-head interface, directly improving combustion efficiency. Manufactured from Viton (FKM) fluoroelastomer and PTFE-coated backup rings, these seals are dimensionally matched to the Cummins M11 and M11-Plus heavy-duty engines, ensuring reliable performance across extreme thermal cycling, high-sulphur diesel, and biodiesel blends up to B20.

This seal kit includes multiple high-tolerance elastomeric components that strictly mirror OEM dimensional standards. The primary elements are the injector-to-head O-ring, return fuel fitting seal, and internal plunger shaft seals, all rated to withstand rail pressure spikes approaching 1,500 bar. Material selection utilizes Viton (FKM) for superior resistance to fuel esters and high-temperature degradation, maintaining elasticity beyond 120°C operational limits. This kit directly fits the following injector OE references: 4307516, 4384360, 4903319, 4903472, 4902921, 4061851, 4026222, 4307776, 3411754, 3411756, 3652542, 3652541, 3411752, 3087557, 3084589, 3095040, 3411753, 3411767, and 3411755. Cross-reference numbers include 3035026, 3070136, and 3070137 depending on the specific sealing position within the injector bore.

This sealing kit is purpose-built for the Cummins M11 engine family, a 10.8-liter inline-six found extensively in Class 8 trucks, transit buses, and construction equipment like excavators and wheel loaders. It ensures proper fitment across all M11 variants, including ISM and QSM11 models used in heavy-duty commercial vehicles and industrial power units. Whether servicing Peterbilts, Kenworths, or Freightliners with mechanical PT injectors, or rebuilding generator sets, this kit guarantees fuel containment integrity without aftermarket modifications. The seals must interface precisely with the injector sleeve in the cylinder head; worn seals often cause combustion gas ingress or fuel dilution of engine oil on high-mileage units.

Correct installation is critical to avoid premature failure and combustion gas blow-by. Prior to fitting, clean the injector bore and sleeve casting seat thoroughly with a carbide casting seat cutter to ensure a smooth sealing surface. Lubricate the O-rings with clean diesel or supplied assembly grease, never engine oil which can cause swelling. Torque the injector hold-down bolts precisely to 45 lb.-ft (61 N·m); incorrect torque leads to insufficient compression or injector body distortion. Additionally, the roll-in tool is required when reinstalling the copper injector sleeve to expand the upper end correctly, preventing coolant leakage into the combustion chamber.

The Cummins M11 uses a mechanical PT (Pressure-Time) fuel system, where sealing requirements are as critical as in common rail systems. PT systems regulate fuel pressure by engine speed and pump output, with the injector acting as a metering valve. Degraded O-rings cause a loss of trim pressure, directly affecting injection duration and timing, manifesting as hard starting, reduced horsepower, and excessive black smoke from incomplete combustion. Replacing the seal set during a standard injector overhaul restores fuel economy and throttle response cost-effectively, potentially saving an entire injector assembly. For repair facilities, stocking these seals ensures readiness for fuel knock and wet stacking complaints in high-hour M11 engines.

Q1: How do I differentiate between the 3070136 and 3070137 seal applications?
A: The 3070136 is the primary O-ring sealing the injector body to the cylinder head. The 3070137 serves as the backup ring or return fitting seal under the rocker lever cover. Always verify the specific location via the repair kit diagram.

Q2: Are these Viton seals compatible with biodiesel blends exceeding B20?
A: Yes, these seals are manufactured from high-grade Viton (FKM) with excellent resistance to biodiesel esters. For fleets regularly using blends above B20, we recommend shortening the inspection interval due to potential adhesion effects over extended hot-soak periods.

Q3: Do we need special tools for sleeve replacement with this seal kit?
A: Yes. You will require a copper sleeve roll-in tool and a carbide casting seat cutter to seat the new sleeve correctly and clean the casting seat, ensuring a perfect O-ring mating surface and preventing coolant leaks.

Q4: Can this kit be used for both truck and industrial M11 engines?
A: Absolutely. The sealing dimensions for the PT injector system are standardized across the M11 platform, covering truck chassis, industrial generators, and construction machinery with ISM and QSM11 models.

Q5: What are the primary signs of a failed injector seal on the M11?
A: Look for external fuel leaks around the injector base, a significant fuel pressure drop, or a chuffing sound from combustion gas escaping past the seal. Also check for fuel dilution in engine oil, indicated by a rising oil level or diesel smell on the dipstick.
