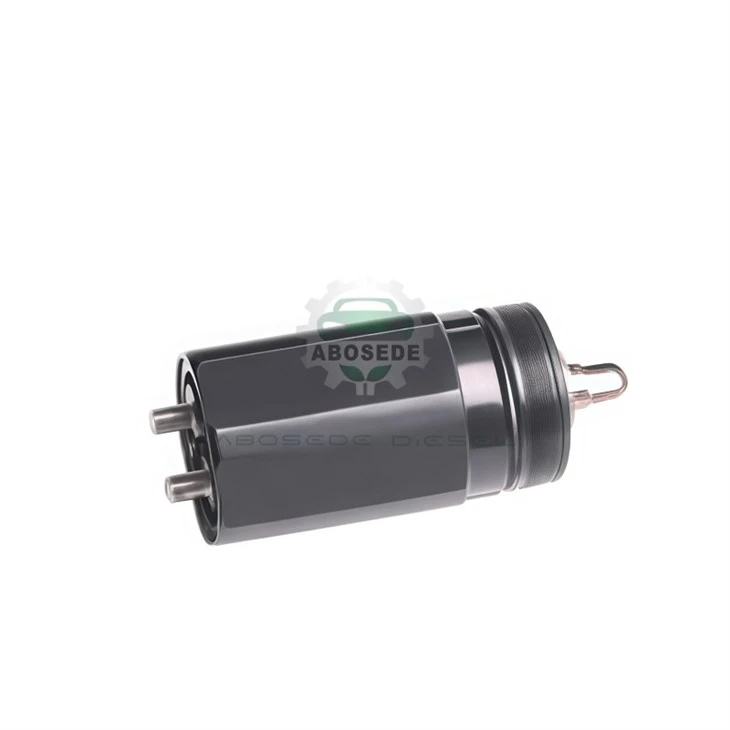

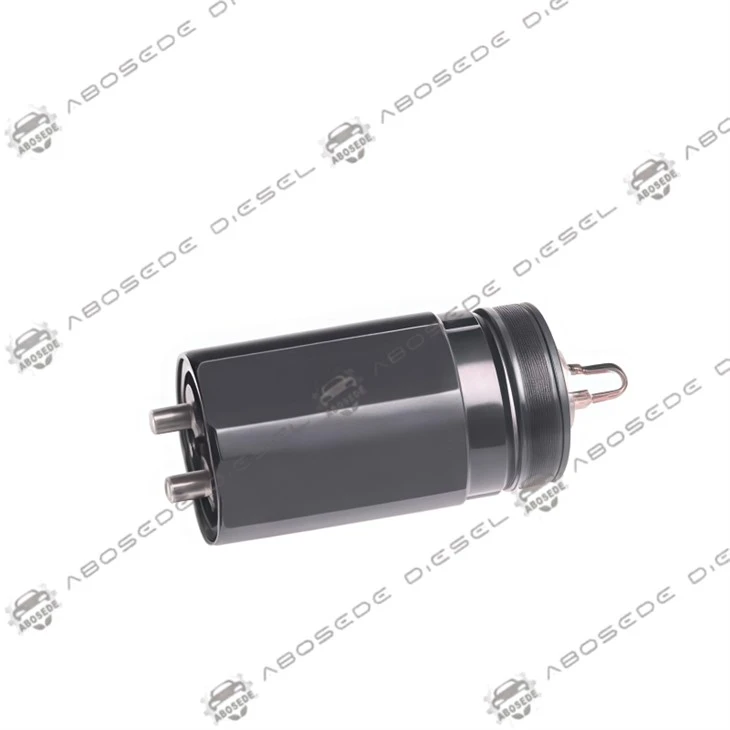

Cummins M11 Solenoid Actuator Assembly – Direct Injector Control For Common Rail Systems

The Cummins M11 Solenoid Actuator Assembly is a high-precision electromagnetic component engineered for the Cummins M11 and compatible ISM/QSM series diesel engines. It serves as the critical control interface within the fuel injection system, converting electronic control module (ECM) pulse-width signals into precise mechanical actions that govern fuel metering and injection timing across all cylinders. This assembly is designed to match OEM specifications, ensuring correct magnetic flux density and armature stroke for accurate fuel delivery. It functions as a direct replacement for a broad range of original injector part numbers, including 4307516, 4384360, 4903319, 4903472, 4902921, 4061851, 4026222, 4307776, 3411754, 3411756, 3652542, 3652541, 3411752, 3087557, 3084589, 3095040, 3411753, 3411767, and 3411755. For workshops dealing with heavy-duty trucks or industrial equipment, maintaining the integrity of this solenoid actuator is essential for restoring proper combustion and consistent engine output.

The operational performance of this solenoid actuator is defined by its electromagnetic and physical parameters. It operates on a standard 12V DC electrical system, utilizing a low-inductance winding that typically achieves a pull-in current of 12.5A within 0.28 ms to ensure rapid response to ECM commands . The assembly is engineered with a holding current of approximately 6.0 A and a coil resistance of 0.75 Ω ±3% at 20°C. The mechanical stroke of the precision-ground armature is calibrated to 0.28 mm, with a return spring pre-load set to 26 N to guarantee clean release after each injection event . These specifications are critical for ensuring that the hydraulic force (≈ 28 N back force) is managed correctly. The FKM O-ring seals are designed to withstand continuous fuel soak and temperatures up to 150°C, ensuring the internal hydraulic circuit remains sealed and the actuator responds predictably throughout its service life.

This solenoid assembly is specifically designed for the Cummins M11 engine family, which is widely deployed in Class 8 heavy-duty trucks, construction machinery, marine propulsion systems, and stationary generator sets . Its replacement value is extensive, as it is the critical actuator for a comprehensive list of injector models. For parts lookup and cross-referencing, the following table lists the confirmed compatible injector part numbers, enabling parts managers to quickly verify application for specific vehicle or equipment setups .

Replacing the solenoid actuator on Celect™ and common rail injectors requires precise attention to detail. The assembly includes an anti-rotation pin on the locating flange to align the electrical connector at the correct 30° angle relative to the injector body, preventing interference with the valve cover gasket during reinstallation . When installing, it is critical to ensure the two-pin Deutsch-style terminals are securely connected to the engine injector harness to establish a vibration-proof electrical connection capable of withstanding up to 20 g acceleration . Technicians must exercise care to avoid damaging the armature guide or the bronze sleeve, as the radial clearance is minimal (0.015–0.025 mm) . Failure to observe these mechanical tolerances can lead to sticking or improper seating, which often results in post-injection soot formation or "dribble."

In a diesel common rail system, the ECU's current-feedback logic relies on the solenoid actuator's predictable response. Variations in pull-in time, even a 0.1 ms delay, can alter fuel delivery and cause a torque deviation of approximately 0.7% at full load . For repair shops, replacing a degraded actuator restores the current-to-force transfer function, ensuring the injector's pilot and main injection windows remain accurate. Utilizing a solenoid that meets the specified inductance value (0.85 mH at 1 kHz) ensures proper inductive kickback (flyback voltage) is controlled, protecting the driver transistor from damage . By addressing this wear item, maintenance teams can directly resolve issues like rough idle, increased emissions, and reduced fuel economy without the higher expense of replacing the entire injector assembly.

Q1: How can I confirm this solenoid actuator is compatible with my specific injectors?
A: Verify the OEM number on your injector body. This actuator fits a wide range including 4307516, 4384360, 4903319, 4902921, 4061851, 3411754, 3411752, 3087557, 3411753, 3411767, and others listed above. If your injector is from the Cummins M11, N14, or QSM11 series, this is a direct replacement.

Q2: What performance improvements should we expect after replacement?
A: Expect restored fuel metering precision and combustion timing. Symptoms like rough running, power loss, black smoke, and reduced fuel economy are typically resolved once the new actuator restores correct electromagnetic response.

Q3: What are the key failure symptoms of a solenoid actuator?
A: Common signs include misfire or rough idle, noticeable power loss, increased fuel consumption, and excessive black exhaust smoke. These stem from degraded windings or worn armature mechanics affecting stroke accuracy.

Q4: Is this aftermarket solenoid suitable for fleet heavy-duty use?
A: Yes. Built to OEM-equivalent specs for inductance and magnetic force, it withstands extreme fuel pressures and rapid cycling, offering a durable, cost-effective repair alternative for commercial fleet operations.

Q5: What are the bench test specs for this actuator?
A: Designed for 12V DC nominal systems. At 20°C, coil resistance should read approximately 0.75 Ω. Note that resistance rises with temperature, which the ECM compensates for dynamically.
