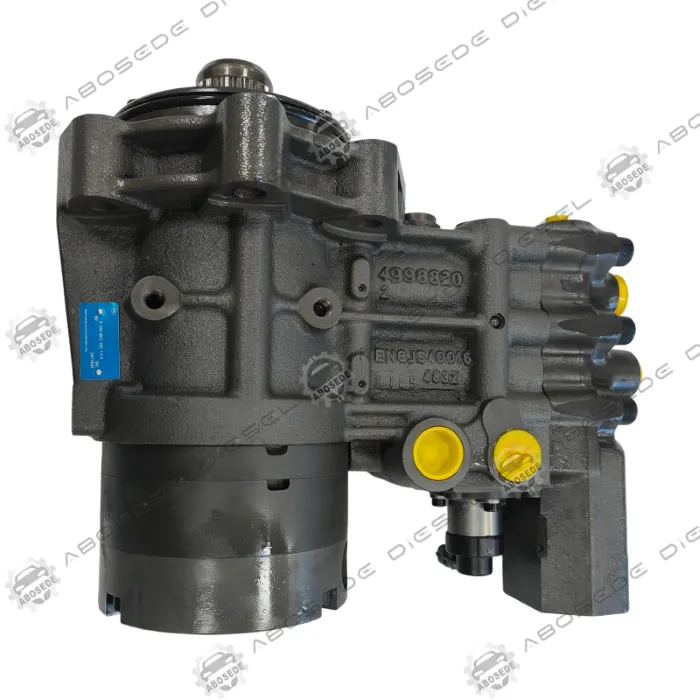

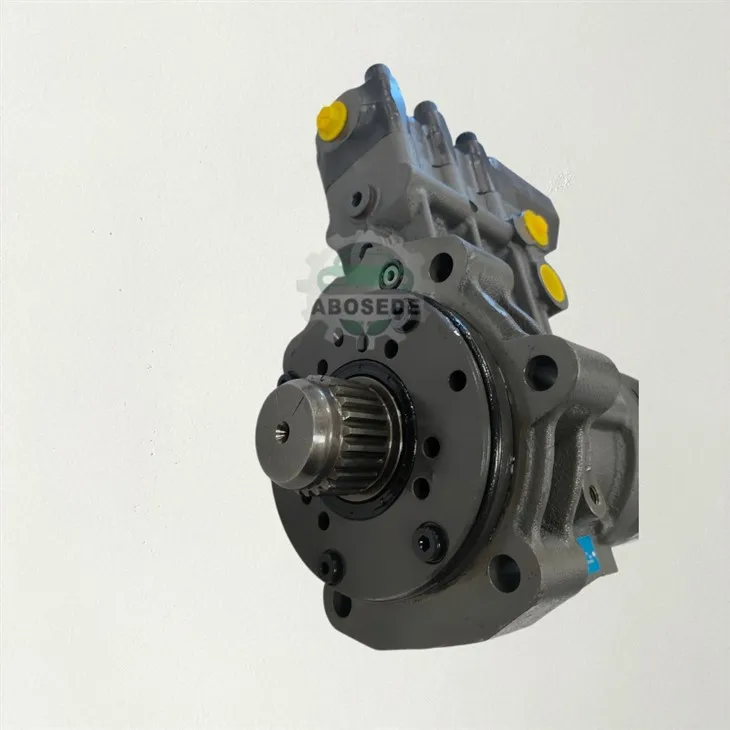

OEM Grade CP9.2 Injection Pump 4998820 | For Cummins QSK19 HPCR Engines

In mega-horsepower applications, fuel is not just a combustible medium-it is a critical hydraulic fluid working under extreme mechanical loads. The Cummins 4998820 fuel injection pump, designed around the specialized CP9.2 high-pressure common rail (HPCR) architecture, represents the pinnacle of heavy-duty fluid management. Engineered to supply the demanding Cummins QSK19 platform, this pump eliminates the destructive pressure spikes and hydraulic resonance often found in lesser fuel delivery systems.

When heavy industrial machinery hits peak load, rail pressure drops can cause severe power loss and rough idling. The design of the internal pumping elements in the 4998820 addresses this directly. By using a precisely balanced radial plunger mechanism, this pump minimizes parasitic torque losses while ensuring consistent volumetric efficiency. Even when handling low-lubricity Ultra-Low Sulfur Diesel (ULSD) or variable-quality industrial fuel blends, its advanced internal surfaces protect against early wear and metal flaking.



Technical Specifications & Dynamic Operational Metrics



Understanding the exact physical limits of the CP9.2 system is vital for precise engine diagnostics and custom tuning projects.

Engineering Parameter	Precise Specification Value
Primary OEM Part Number	4998820
Interchangeable Supersessions	5471751, 4951894, 4928100, 4924585, 2888712
System Architecture	Heavy-Duty Radial Two-Plunger Platform
Application Match	Cummins QSK19 Series (Tier 3 / Stage IIIA / Tier 4i)
Max Continuous Pressure	1,600 to 1,800 Bar (Regulated via ECM Control Loop)
Inlet Regulation Type	Proportional Electronic Control (Fuel Metering Valve)
Structural Housing Material	High-Tensile Forged Steel / Anti-Cavitation Casting





The Cummins 4998820 pump is built for environments where downtime is calculated in thousands of dollars per minute. Its rugged construction excels in several demanding fields:

Deep-Pit Mining and Earthmoving: Powering heavy-duty mining haul trucks and large crawler dozers that face constant load changes and thick ambient dust.

High-Output Marine Operations: Serving as the fuel heart for commercial tugboats, inland pushers, and main auxiliary gensets that need reliable power for days at a time.

Remote Power Generation: Driving prime and standby power systems in extreme hot or cold climates, where fuel systems must handle thermal expansion without binding.

Oil and Gas Well Servicing: Providing dependable fuel pressure to frac pumps and high-pressure blenders running continuously at maximum RPM.





The core advantage of the CP9.2 platform lies in its smart, on-demand fuel delivery logic, which represents a major step forward from old-fashioned, fixed-displacement fuel pumps.

Rather than compressing all incoming fuel and returning the unneeded portion to the tank-which overheats the fuel and shortens component life-the 4998820 uses an integrated Fuel Metering Valve. The engine control unit (ECU) constantly checks high-speed data from the rail pressure sensor and adjusts the pulse width modulation (PWM) signal to this valve. This limits the fuel volume before it enters the high-pressure pumping chamber. This precise control reduces internal heat buildup, keeps fuel temperatures stable, and helps protect the close-tolerance components inside your high-pressure injectors.





To get the longest service life out of high-pressure common rail components, mechanics and fleet managers should follow these key system protection steps:

Multi-Stage Water Separation: High-pressure systems have zero tolerance for water. Free and emulsified water causes immediate cavitation erosion on plunger edges and ruins the vital surface coatings. Use a premium 2-micron fuel water separator and inspect it daily.

Fuel Lubricity Compliance: Modern ULSD fuels often lack natural lubricity. Ensure your fuel supply stays within the globally accepted ISO 12156 HFRR wear scar limit of less than 460 microns to keep the internal cam and rollers running smoothly.

Cleanliness During Installation: When replacing a pump, clean the entire engine bay around the fuel lines. A single speck of hard dirt can score a plunger or stick a metering valve, causing instant pressure issues.





Q1: Why does a failing CP9.2 pump 4998820 cause hard starting when the engine is hot?

A: As the pump wears internally, the clearances between the plungers and the barrel widen. When the fuel gets hot, its viscosity drops. At low cranking speeds, the hot, thin fuel leaks past these worn clearances instead of being compressed to the minimum required rail pressure, leading to long crank times.

Q2: Can a faulty Fuel Metering Valve cause active surging at idle speeds?

A: Yes. If the internal slide of the metering valve becomes sticky or worn due to contaminated fuel, it cannot react smoothly to the ECU's rapid signals. This causes the fuel volume entering the high-pressure chamber to overshoot or undershoot, resulting in unstable rail pressure and engine RPM hunting or surging.

Q3: What makes the 4998820 pump more reliable than older generations of this part number?

A: This specific updated part number features revised internal fluid paths designed to reduce localized cavitation hotspots. Additionally, it uses advanced diamond-like carbon (DLC) coatings on the plungers, which significantly reduces friction and prevents scuffing during unexpected dry-run conditions or low-fuel-lubricity scenarios.

Q4: How do I safely test if the high-pressure pump is generating sufficient pressure during a no-start condition?

A: Never crack a high-pressure line open to check for fuel flow; common rail pressures can cause fatal skin penetration injuries. Instead, connect a certified diagnostic scan tool and monitor the live electronic rail pressure parameter during cranking. The system typically needs to see a minimum of 150 to 250 Bar to allow the ECU to trigger the injectors.

Q5: Is it safe to run high concentrations of biodiesel blends through this pump?

A: Biodiesel blends up to B20 are acceptable if they meet strict ASTM D6751 standards. However, biodiesel is naturally hygroscopic (it absorbs moisture from the air) and can oxidize during long storage periods. This oxidation can create sticky deposits that gum up the sensitive metering components inside the CP9.2 architecture.
