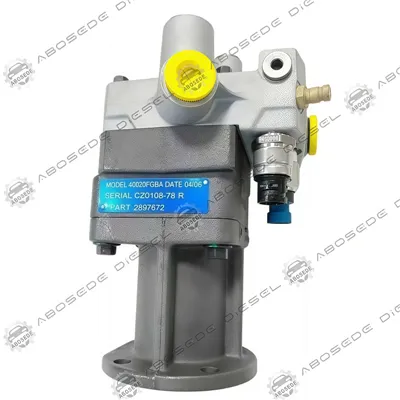

Cummins 3417296 Q23/Q60 Hydraulic Pump – Precision Fuel Delivery For Modern Diesel Engines

When a heavy-duty common rail (CR) system experiences intermittent pressure drops, diagnostic trouble codes (DTCs), or accelerated injector erosion, technician instinct often points to the high-pressure fuel rail or the electronic control module (ECM). However, elite fleet mechanics know that common rail stability is won or lost at the lower-pressure hydraulic boundary.

The Cummins 3417296 Hydraulic Pump serves as the precise operational foundation for Q23 and Q60 engine platforms. It bridges the gap between pure mechanical fuel transfer and ultra-high-pressure common rail requirements, ensuring the fuel system receives a pulse-free, highly stabilized fluid flow. By eliminating upstream cavitation (microscopic vapor bubbles), this pump prevents the premature failure of downstream high-pressure components, making it a critical asset for high-uptime operations.



🛠️ The Specifier's Blueprint: Deep-Dive Component Technical Metrics



For procurement managers and engineering teams matching components to rigorous system architectures, the physical and operational boundaries of the Cummins 3417296 are precisely engineered:

Parameter Profile	Engineering Specification / Compliance Target
Primary OEM Part Number	Cummins® 3417296
Engine Platform Compatibility	Cummins Q23 & Q60 Heavy-Duty Series
Common Rail Interface Dynamic	Low-to-Mid Pressure Hydraulic Feed / Priming System
Max Continuous Operating Pressure	Up to 12.5 Bar (Platform Configuration Dependent)
Housing Metallurgy	High-Density Anti-Cavitation Nodular Cast Iron
Internal Sealing Chemistry	Fluoropolymer Elastomers (FKM / Viton) for Ultra-Low Sulfur Diesel (ULSD) & Biodiesel Blends
Drive Interface Type	Heavy-Duty Splined / Gear-Driven Shaft Interface





Anti-Aeration Internal Geometry

Standard generic gear pumps often induce internal micro-turbulence, which introduces air pockets into the diesel feed line. The 3417296 utilizes a proprietary internal rotor profiling strategy that maintains laminar flow even under low-viscosity, high-temperature operations.

High-Pressure Common Rail Safeguarding

Modern injection pressures can exceed 2,500 Bar. If the intake supply fluctuates by even 0.5 Bar, the high-pressure pump suffers from fuel starvation, resulting in severe metal-on-metal friction. This hydraulic pump ensures a steady, constant positive-displacement supply, acting as a vital buffer that preserves the expensive common rail injection core.





The Q23 and Q60 power plants are rarely stationary; they operate under grueling cyclic loads where component failure is not an option. The Cummins 3417296 is explicitly designed to handle these environments:

Deep Mining & Extraction Equipment: Powering high-tonnage excavators and haul trucks where dust ingress and high vibration destroy lower-grade aftermarket parts.

Offshore Marine Power & Auxiliary Gensets: Maintaining consistent priming and pressure heads in marine environments, resistant to corrosive salty air and variable fuel qualities.

High-Output Construction & Earthmoving Assemblies: Optimizing fuel delivery during sudden torque transitions typical of heavy earthmoving machinery.





To maximize the service life of this hydraulic asset and protect the wider injection network, field technicians should adhere to the following maintenance framework:

⚠️ The Golden Rule of Common Rail Service: Cleanliness cannot be overstated. A single particle larger than 2 microns can score a valve seat. Always cap open ports immediately upon disassembly.

Dynamic Pressure Testing: Do not rely solely on static pressure metrics. Measure the supply pressure under maximum engine load. A drop exceeding 15% indicates either supply line restriction or internal pump bypass wear.

Torque-to-Yield Inspection: When replacing the 3417296, always verify gear backlash and torque mounting fasteners strictly to OEM specifications. Improper alignment induces radial forces that can wear out the internal bearings prematurely.

Sealing Integrity Check: During routine 250-hour service intervals, closely inspect the mounting flange for oil-to-fuel weeping. The dual-seal design prevents cross-contamination between engine oil and fuel systems; a failure here can dilute engine oil and compromise bearing lubrication.





1. How does the 3417296 pump impact overall common rail injector life?

By eliminating cavitation and ensuring a perfectly steady supply pressure to the high-pressure pump block. If the high-pressure pump starves, it sheds microscopic metallic debris. This debris travels downstream into the fuel rail, instantly ruining the tightly cleared common rail injectors.

2. Can this pump safely run on ultra-low sulfur diesel (ULSD) and modern biofuels?

Yes. The internal sealing compounds and metallurgic coatings of the genuine 3417296 are engineered to counteract the lower lubricity of modern ULSD and withstand the chemical aggressiveness of biodiesel blends up to B20 without hardening or degradation.

3. What are the primary indicators that a Q23/Q60 hydraulic pump needs replacement?

Key indicators include extended engine cranking times (poor priming pressure), unexplainable power loss under peak torque load, active diagnostic codes linked to fuel rail pressure instability, and localized fuel weeping at the pump flange interface.

4. Is it advisable to install an aftermarket copy of the 3417296 in a high-uptime application?

Aftermarket alternatives often utilize lower-grade internal tolerances and inferior seal compositions. In high-pressure common rail operations, an irregular delivery pulse from a sub-par pump can disrupt the ECM's rail pressure regulation loop, causing performance hunting and increased fuel consumption.

5. Does this unit require manual pre-priming after an extended system shutdown?

The positive displacement architecture provides excellent self-priming capabilities. However, during an initial dry installation, it is highly recommended to pre-lubricate the pump chambers with clean calibration fluid or diesel to prevent a dry-start condition.
