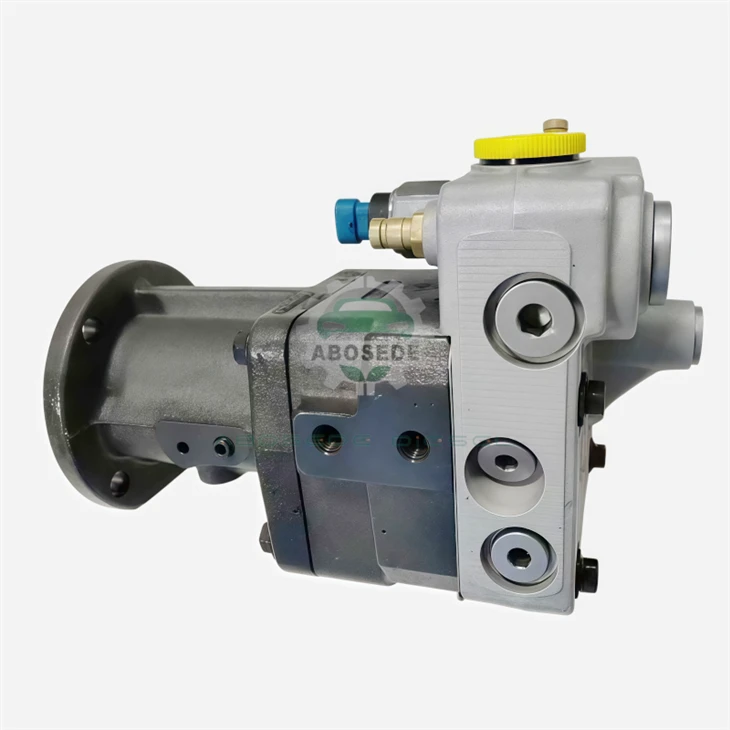

Cummins® 4001693 High-Pressure Common Rail Feed Pump | Q23 & Q60 Heavy Duty Series

In heavy-duty diesel engineering, the enemy of fuel efficiency and component longevity isn't just contamination-it is pressure pulsation. When high-pressure common rail systems operate under variable heavy loads, micro-fluctuations in fuel delivery translate directly into erratic injector spray patterns, incomplete combustion, and increased emissions.

The Cummins 4001693 high-pressure fuel and hydraulic actuation pump represents the master engineering solution for Q23 and Q60 engine architectures. Rather than acting as a simple passive transfer component, this unit is engineered around a continuous stabilization matrix. It delivers a hyper-regulated, pulse-free stream of diesel directly to the high-pressure rail, allowing the engine's electronic control unit (ECU) to maintain precise rail metering down to the millibar. For operations running high-utilization commercial fleets, this precision directly translates to reduced thermal stress on the cylinders and an optimized fuel-burn profile.



📊 Technical Blueprint: Critical Specification Profile

For procurement engineers and industrial maintenance planners running parts-matching validations, the structural and performance tolerances of the 4001693 are detailed below:

Structural Parameter	Commercial & Technical Specification Standard
Primary OEM Part Number	Cummins® 4001693
Compatible Engine Sub-Systems	Cummins Q23 & Q60 High-Output Powerplants
Common Rail Role	Primary High-Pressure Feed / Hydraulic Actuation Unit
Max System Integrity Rating	Designed to support architectures up to 2,500+ Bar
Core Metallurgy	Reinforced Micro-Alloyed Forged Steel & Cast Iron Housing
Seal Compatibility Profile	Advanced Fluorocarbon (FKM) Optimized for ULSD & Bio-Diesel (B20)
Drive Architecture	Integrated High-Torque Gear Driven Shaft Configuration





Precision Volumetric Efficiency

Unlike standard commercial pumps that suffer from internal fluid bypass as operating temperatures rise, the 4001693 utilizes ultra-tight internal plunger tolerances. This design preserves high volumetric efficiency across the entire RPM band of the Q23 and Q60 platforms, preventing pressure drop-offs during peak torque demands.

Advanced Vapor-Lock & Cavitation Protection

Under extreme thermal loads, low-viscosity Ultra-Low Sulfur Diesel (ULSD) can easily vaporize, causing localized cavitation. The integrated internal fluid pathways of this pump are micro-contoured to eliminate high-velocity shear zones, ensuring that vapor bubbles cannot form and pit the high-pressure common rail pumping chambers.





The Q23 and Q60 engines form the operational backbone of several critical global industries. The Cummins 4001693 is built to survive in environments where a single hour of unplanned downtime costs thousands of dollars:

Megawatt-Class Power Generation: Providing flawless fuel delivery in backup generator sets for data centers and hospitals where load transitions occur instantly.

Heavy Rail and Locomotive Traction: Surviving the immense, prolonged thermal cycles and high vibration profiles inherent to rail shipping networks.

Industrial Marine Propulsion: Ensuring continuous priming efficiency and structural corrosion resistance in continuous-duty marine auxiliary setups.





To preserve the fine-machined surfaces within the pump assembly and safeguard the downstream common rail injector network, maintenance supervisors should implement the following procedures:

⚠️ The Golden Rule of Common Rail Service: Cleanliness cannot be overstated. A single particle larger than 2 microns can score a valve seat. Always cap open ports immediately upon disassembly.

Dynamic High-Load Pressure Mapping: Never rely solely on idle diagnostic data. Track fuel pressure delivery while the engine undergoes peak transient load shifts. Any drop exceeding 10% from the target curve implies internal stroke bypass or early spring fatigue.

Strict Backlash Gear Matching: When dropping the 4001693 into the gear train housing, always measure gear backlash using a dial indicator. Incorrect mesh alignment creates structural harmonic vibrations that translate to premature front shaft seal failure.

Fuel Quality & Lubricity Auditing: Because high-pressure common rail elements rely entirely on the fuel itself for lubrication, regular checks on fuel water separators are vital. Water in the fuel stream will cause instant flashing, ruining the precision plungers within hours.





1. How does the 4001693 manage fuel delivery changes when the engine experiences a sudden load spike?

The pump features a highly responsive, integrated inlet metering design that syncs with the engine ECU. When a load spike occurs, the pump instantaneously increases its displacement output to match the desired high-pressure common rail target, mitigating lag.

2. Is this unit backwards compatible with older fuel systems running high-sulfur diesel?

While explicitly optimized for modern, low-lubricity ULSD and eco-friendly bio-blends, the upgraded metallurgy and surface-hardened components within the 4001693 make it highly durable and completely compatible with legacy high-sulfur fuel reserves.

3. What are the common symptoms of a failing high-pressure common rail feed pump?

Typical field warning signs include hard starting or extended cranking cycles, unprovoked engine derates under load, excessive black smoke due to poor rail pressure maintenance, and specific ECU trouble codes indicating erratic rail pressure adaptation metrics.

4. Can we rebuild internal components of the 4001693 in a standard field workshop?

It is highly discouraged. Because the internal clearance tolerances are measured in microns, any successful overhaul requires a clean-room environment and specialized test benches to recalibrate flow characteristics. Field teams should replace the assembly as a whole.

5. What role do the internal FKM seals play regarding modern fuel additives?

Modern refinery additives and high-concentration winter anti-gel chemicals can cause generic rubber seals to swell, crack, or dissolve over time. The 4001693 incorporates advanced fluorocarbon (FKM) compounds that are chemically inert to these harsh cleaning and anti-waxing formulations.
