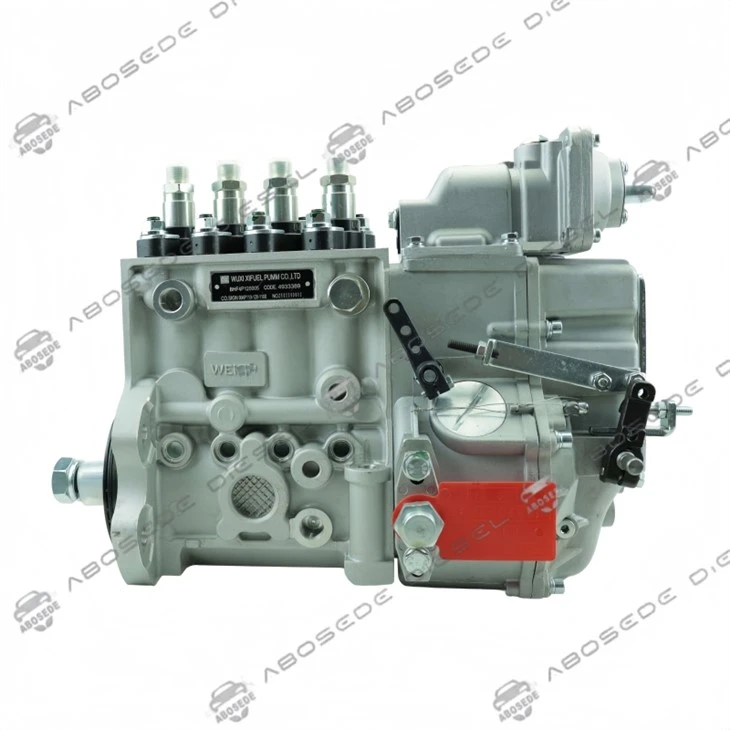

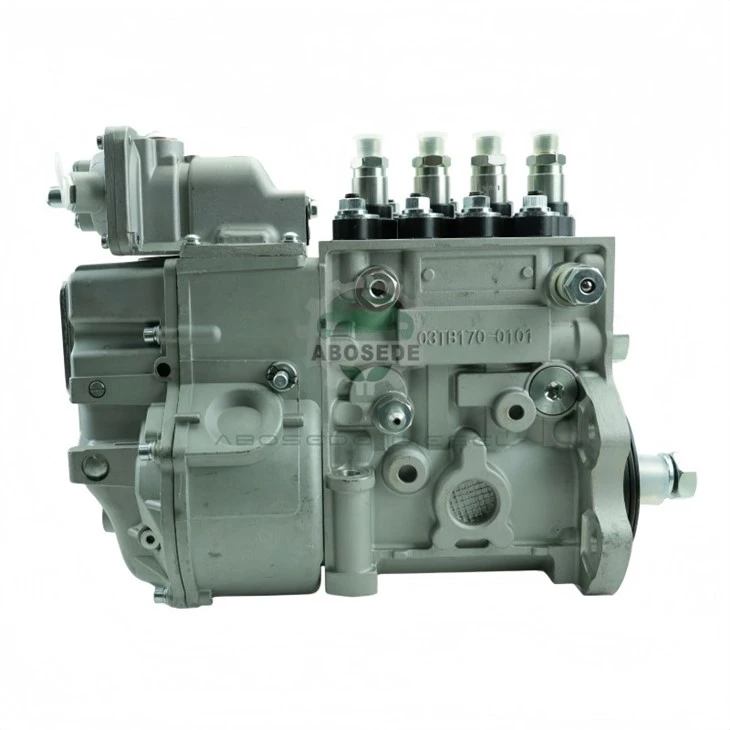

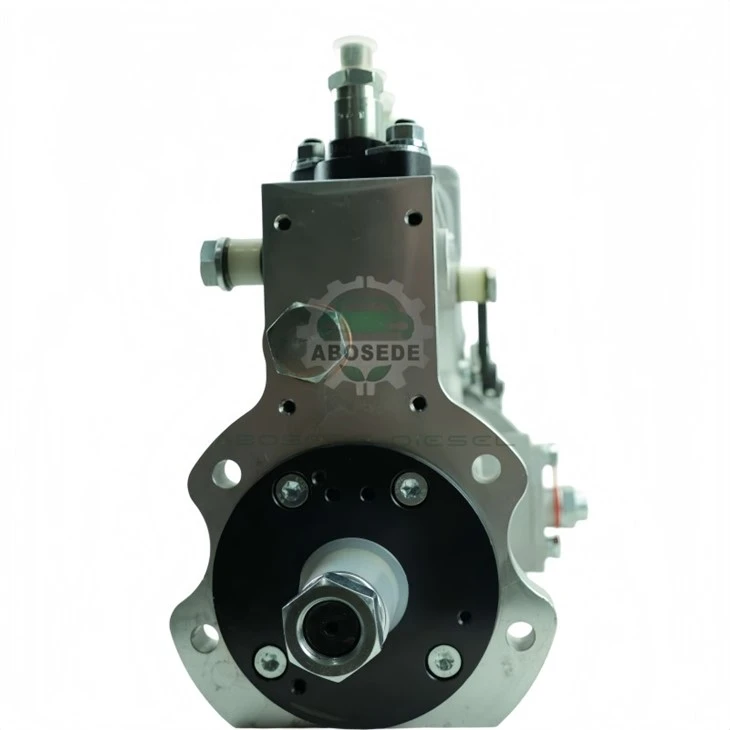

4P119/4933389 Cummins 4BT Fuel Injection Pump Assembly

This 4P119/4933389 rotary fuel injection pump is a direct-fit replacement for Cummins 4BT and select 4B-series industrial diesel engines, delivering factory-specified fuel delivery pressure and timing control for rebuilders and fleet maintenance operations. Manufactured to interchange with OEM reference C4933389, this unit governs both fuel quantity and injection advance across the engine's load range. For workshops handling 4BT teardowns or stocking fast-moving diesel pump inventory, this number covers a broad slice of the Cummins B-series population without requiring adapter hardware or ECU reflashing on mechanical applications.

The 4933389 pump operates as a mechanical rotary distribution unit with an integrated mechanical governor and automatic timing advance mechanism, calibrated for the 4BT and 4BTT3.9-G2 displacement family. Physical weight sits near 10 kg, retaining the cast-iron housing rigidity expected in industrial duty cycles. Interchange references include C4933389 and cross-compatibility with certain 6BT5.9-G2 and 6CTA8.3-G2 applications where the pump flange and drive configuration match. Fuel inlet and return ports accept OEM hard lines without bending or adapter fittings, a detail that matters for shops aiming to complete a pump swap within a single bay session.

The 4P119 pump's primary service territory spans Cummins 4BT power units installed in industrial and commercial equipment rather than light-duty pickup applications. Typical host machines include skid-steer loaders, mini excavators, airport ground support tugs, stationary generator sets rated for prime or standby duty, and agricultural irrigation power units where the 4BT engine's mechanical fuel system remains favored for its tolerance of variable fuel quality and absence of electronic sensors. Generator packagers using the 4BTT3.9-G2 designation frequently specify this pump number when building standby gensets for telecom and healthcare facilities, where fuel delivery consistency under sustained 1800 RPM operation directly affects voltage stability. Repair shops serving municipal fleets should verify the drive gear and coupling arrangement before ordering, as early and late 4BT configurations differ in the injection pump hub interface.

Successful 4933389 installation hinges on three non-negotiables: absolute cleanliness, verified timing marks, and complete air evacuation before first crank. Begin by placing the engine at cylinder one top dead center and photographing the pump drive gear alignment before loosening any fastener-mechanical 4BT pumps do not forgive a one-tooth error, and the resulting no-start condition often gets misdiagnosed as a faulty pump out of the box. Cap every open fuel line immediately after disconnection; a single grain of abrasive dust entering the delivery valve holder will score the rotor and destroy the pump within minutes. Mount the new unit with fresh O-rings and torque the flange bolts in a cross pattern to OEM specification, then connect the high-pressure lines without reusing deformed pipes. Prime with the hand primer until resistance builds, then crank with the injection lines cracked at the injector nuts until bubble-free fuel appears before tightening and starting. A pump that fails to deliver immediately almost always indicates trapped air or a skipped timing mark rather than a defective unit.

For the independent diesel shop, the 4933389 represents a strategic diagnostic pivot point rather than a blind replacement part. The 4BT platform's mechanical pump is frequently blamed for symptoms actually caused by upstream fuel restriction, air ingress through a degraded filter head O-ring, or worn injectors with poor spray patterns. Before condemning the pump, technicians should verify transfer pressure at the inlet, inspect the overflow return line for bubbles or blockage, and confirm that the fuel shutoff solenoid receives full voltage during cranking. When the pump is genuinely at fault-exhibiting external leakage from the throttle shaft seal, erratic governor hunting at idle, or a delivery curve that cannot be corrected through the external adjustment screw-the 4933389 offers a cost-effective alternative to a full remanufacture of the original core. Distributors serving the 4BT aftermarket should stock this number alongside matching injector nozzles and filter kits to capture the complete repair ticket.

Q1: Will this pump require recalibration after installation on a 4BT generator engine?
A: The 4933389 arrives with a factory-set delivery curve matched to the 4BT platform. Field adjustment is only necessary if the engine exhibits unstable idle or smoke beyond normal limits after timing verification and air bleeding are complete.

Q2: Can I use this pump on a 6BT application listed in the cross-reference?
A: Cross-reference listings for 6BT5.9-G2 exist, but drive hub, flange orientation, and governor spring rates differ between some 4-cylinder and 6-cylinder variants. Confirm the original pump number stamped on the engine data plate before substituting.

Q3: What is the most common cause of premature failure on replacement 4933389 units?
A: Contaminated fuel entering through the inlet fitting during installation. The rotor and delivery valves operate on micron-level clearances, and shops that skip flushing the fuel lines after a pump failure often see the replacement fail within the first hundred operating hours.

Q4: Does the pump include a new fuel shutoff solenoid?
A: The solenoid is not included unless explicitly stated by the seller. Reuse the existing solenoid only if it bench-tests within resistance specification; a weak solenoid can mimic pump failure by failing to retract fully during cranking.

Q5: How should a distributor verify core condition before accepting a warranty claim?
A: Document the fuel inlet screen condition and photograph the drive gear wear pattern. Units returned with evidence of water ingestion, abrasive debris in the delivery valve area, or tampered governor covers fall outside standard warranty coverage.
