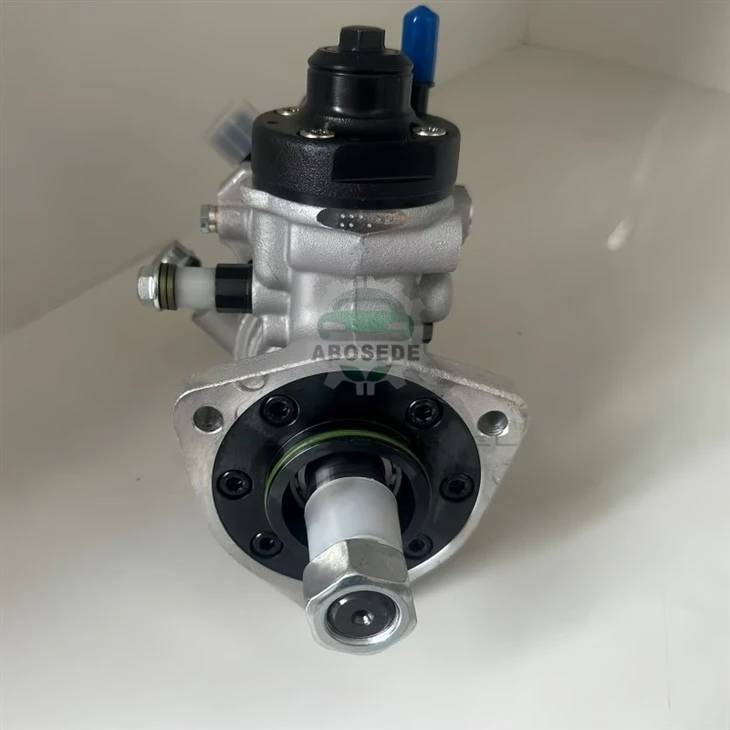

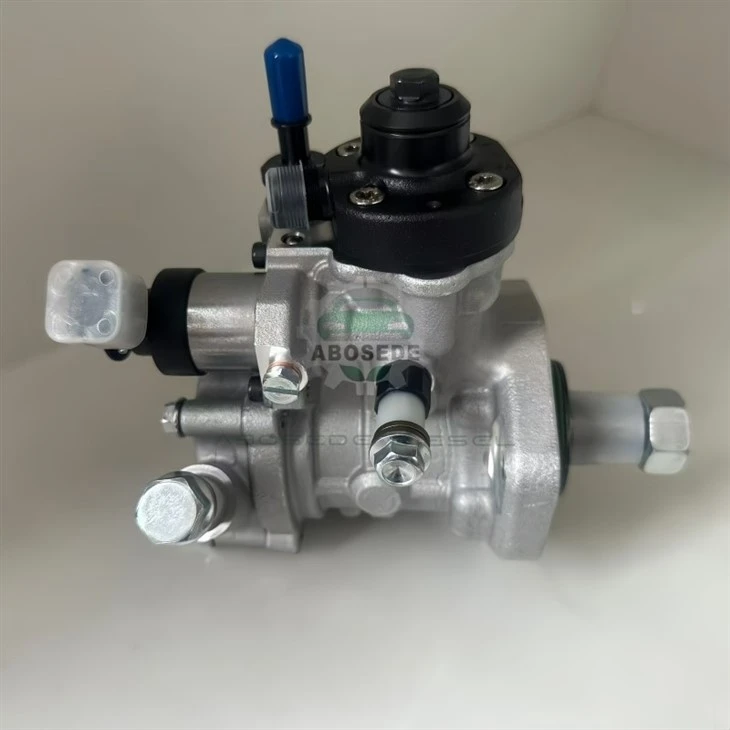

0445025442 Diesel Fuel Injection Pump – Cummins ISF 3.8 / QSF 3.8

This 0445025442 high-pressure diesel injection pump is a direct-fit replacement for Cummins ISF 3.8 and QSF 3.8 engine platforms, cross-referenced to 5662823 and 23B130105A. Built with a cast iron housing and calibrated high-pressure components, it restores common rail fuel delivery on light commercial trucks and industrial equipment where rail pressure instability has triggered hard starts, derate events, or excessive return flow. Each unit is assembled for workshop installation, not as a rebuildable core.

This 0445025442 is specified for Cummins ISF 3.8 and QSF 3.8 power units found in Aumark and Ollin light trucks, as well as stationary and agricultural applications using the same block family. Shops servicing fleet vehicles with the ISF platform will recognize the demand pattern: the pump sees continuous duty cycles, frequent cold starts, and fuel quality that varies by region. When the original unit begins to show rail pressure deviation under load, extended cranking after hot shutdown, or P0087 low-pressure codes, this replacement restores the hydraulic foundation the common rail system depends on. It is not a universal fitment; counter staff should confirm the engine tag before dispatch.

The most common installation error with this pump is treating it like a low-pressure lift pump. It is not. Before mounting, verify that the fuel filter and water separator have been renewed, and that the suction side is free of air ingress; any aeration reaching the pump inlet will damage the high-pressure elements before the vehicle leaves the bay. Mounting flange bolts should be tightened progressively and crosswise to the OEM torque figure, never in a single pass. High-pressure pipe unions must be started by hand and torqued to specification-over-tightening cracks the union seat, under-tightening produces a weep that mimics pump failure. After installation, prime the system and bleed air at the return line before cranking. A pump that starts dry will score its plunger surfaces within seconds.

A failed common rail pump does not fail in isolation. When the 0445025442 loses pressure integrity, the downstream consequences cascade: injectors receive inconsistent hydraulic signals, rail pressure oscillates under load, and the ECM may command derate or refuse restart. For the repair shop, the decision matrix is straightforward. Replacing only the pump on a high-mileage ISF unit without flushing the high-pressure lines and evaluating injector return flow often produces a repeat visit. Conversely, installing a calibrated replacement pump on a system that has already been diagnosed for return flow and rail pressure tracking gives the shop a defensible repair with a predictable outcome. The pump is the pressure source; the injectors are the metering gate. Both must be assessed together.

Q1: Can I install this pump without replacing the high-pressure lines?
A: Not recommended. Lines that have seen a failing pump may carry debris or have work-hardened seats. Reusing them risks a leak or a repeat contamination event.

Q2: Does this pump require programming or coding after installation?
A: No. The 0445025442 is a hydraulic component. The ECM relearns rail pressure adaptation through normal driving cycles after the system is bled and confirmed leak-free.

Q3: What return flow value tells me the old pump is finished?
A: Return volume exceeding the OEM specification at operating temperature, combined with rail pressure that cannot track commanded value under load, confirms the pump is the pressure loss source rather than the pressure regulator.

Q4: Is this pump compatible with bio-diesel blends?
A: It is built for standard diesel service. Higher blend ratios require closer attention to fuel filter intervals and water separation, as common rail pumps are sensitive to lubricity and moisture.

Q5: What is the most common warranty claim on this part?
A: Installation contamination. Shops that skip tank cleaning or line flushing after a prior pump failure account for the majority of premature returns.
