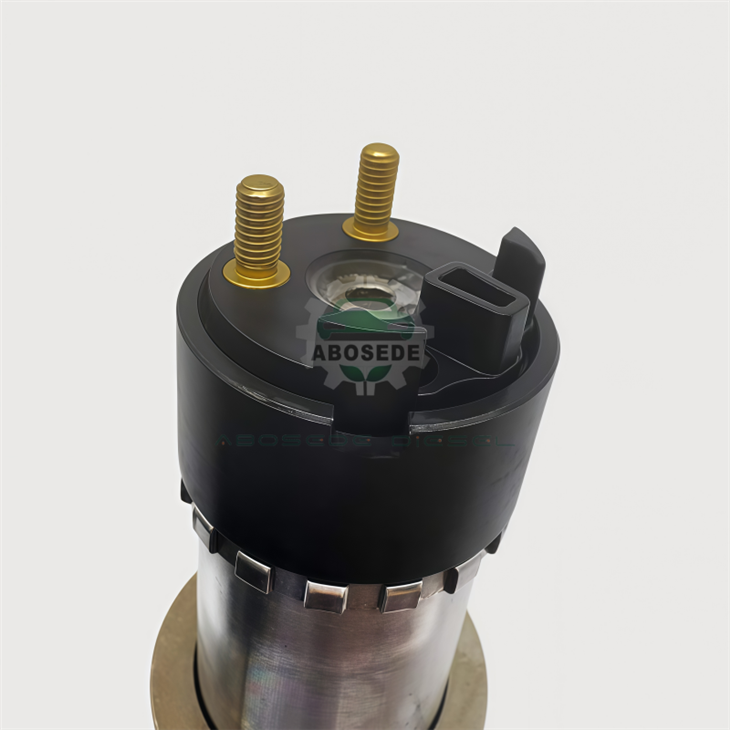

Cummins X15 Fuel Injector 5579421 | Heavy-Duty XPI Common Rail System Component

Modern fleet profitability relies completely on predictable combustion thermodynamics. In EPA17-compliant heavy-duty platforms, minimizing exhaust gas recirculation (EGR) soot loading requires ultra-precise, multiple-injection strategies per power stroke. The Cummins Fuel Injector 5579421 addresses this challenge directly, moving beyond a simple wear-and-tear replacement part to act as a precision calibration tool for high-pressure, common-rail architectures.

Engineered specifically to survive extreme under-hood thermal cycling, this injector mitigates structural degradation, internal deposit formation, and micro-leakage-the frequent causes of progressive fuel dilution in engine oil and unexpected DPF regeneration cycles. For fleet maintenance managers, industrial engine rebuilders, and procurement officers across North America and Europe, investing in this component protects heavy-duty drivetrains from catastrophic performance drops while maximizing transient response under peak load conditions.



📐 Structural Integrity & Fluid Dynamics of the 5579421 Architecture



At the core of the 5579421 design is its advanced response speed. The internal command valve features a specialized, low-friction hydrodynamic coating that resists fuel-borne debris and chemical attacks from ultra-low sulfur diesel (ULSD) and winter-blend fuels.

The injector utilizes a symmetric control piston design to eliminate side-loading forces within the injector body. This ensures that the needle lifts perfectly straight every time, maintaining precise fluid dynamics even across billions of operating cycles. Additionally, the micro-aperture nozzle tips are treated with specialized strengthening techniques to prevent hole erosion, protecting the spray angle and droplet sizing throughout the injector's service life.







To ensure exact compatibility for commercial workshops and heavy machinery operators, this component adheres to precise high-pressure common rail (HPCR) specifications:

Technical Attribute	Certified Specification Target
Primary System Compatibility	Cummins XPI Common Rail System
Peak Operating Pressure Performance	$\ge 2400 \text{ Bar} \pmod{34,800 \text{ PSI}}$
Actuation Configuration	High-Speed Solenoid Electronic Celect Control
Associated Core Engineering Part Numbers	5579421, 5579421PX, 5579421RX, 4327147
Emission Adaptation Standard	EPA17, Euro VI High-Efficiency Compliance
Inclusion Hardware Assets	Installed Viton O-Rings, High-Pressure Inlet Seal





The 5579421 fuel injector is a model-specific component engineered for large-displacement, high-output industrial and commercial engine series. It provides precise fitment and calibration for:

Commercial Freight & Transport: Cummins ISX15, X15, and ISX12 Single Cam platforms (Years 2017–2022).

Off-Highway & Industrial Power: Cummins QSX15 and high-displacement QSK60 power modules used in mining equipment, oilfield gensets, and heavy excavators.

System Engine Control Variations: Tailored specifically for engines with CM2350 and CM2450 Electronic Control Modules (ECMs) utilizing high-pressure modular rail networks.





High-Pressure Feed Tube Management: Never reuse old injector supply tubes. A microscopic metal shard generated during disassembly can easily clog the new nozzle apertures. Always install a fresh high-pressure connector tube alongside the injector.

Bore Cleanliness Check: Use an appropriate cleaning brush to remove all carbon deposits from the cylinder head injector sleeve before installation. Uneven seating leads to poor heat dissipation, causing premature O-ring failure and combustion gas blow-by.

Torque Specification Adherence: Tighten the injector hold-down clamp exactly to the torque settings specified by the manufacturer. Over-tightening deforms the internal valve assembly, causing sluggish needle response or internal sticking.

ECM Trim Code Input (Barcodes): To optimize performance, manually program the unique flow compensation code (IMA/C2I code) printed on the injector head into the Cummins Insite diagnostic software. This ensures proper cylinder balance and smooth idling right from the first start.



Q1: How does the 5579421 injector improve fuel economy compared to older versions?

A: The component is designed for advanced XPI common rail systems, supporting higher rail pressures up to $2400 \text{ bar}$. This allows for finer fuel atomization and precise multi-injection timing adjustments within the CM2450 control system, reducing unburnt fuel waste and lowering soot emissions.

Q2: What are the main symptoms of an injector failure on a Cummins X15 engine?

A: Common warning signs include rough idling, frequent DPF regenerations caused by excessive soot production, cylinder misfire codes, sudden drops in fuel economy, and fuel dilution in the engine oil.

Q3: Can I install this injector on an EPA10 or EPA13 Cummins engine model?

A: No. This part is engineered specifically for the modified fuel delivery lines, nozzle geometries, and electronics of EPA17-compliant platforms. Using it on older engines will cause calibration errors and potential fuel system damage.

Q4: Why must the high-pressure injector connector tube be replaced at the same time?

A: The sealing tip of the connector tube deforms slightly during its initial installation to create a high-pressure seal. Reusing a deformed tube can lead to micro-leaks under high pressures, dropping rail pressure and risking damage to the cylinder head.

Q5: How does this injector handle alternative or low-lubricity diesel fuels?

A: Its internal control components feature advanced coatings designed to withstand the reduced lubrication of highly processed ULSD and winter fuel blends, protecting the injector from premature scuffing and internal wear.
