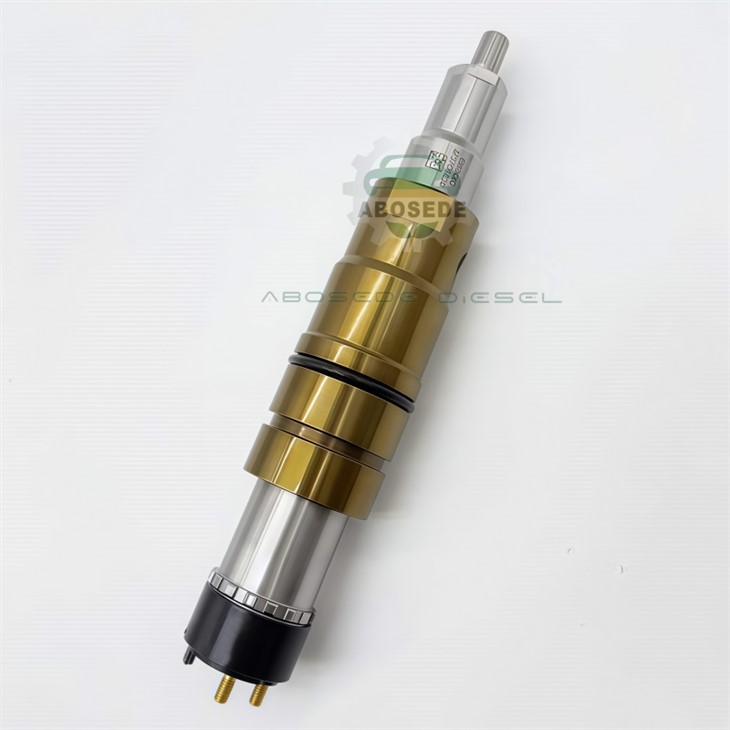

Cummins X15 High-Pressure Fuel Injector 4327147 | Heavy-Duty XPI Common Rail System Replacements

When heavy-duty fleets and commercial transport operations face unexpected downtime, the underlying culprit is frequently an uncalibrated fuel system unable to withstand severe thermal loads. The Cummins 4327147 fuel injector represents a definitive engineering solution designed for fleet managers, rebuilding shops, and engine operators looking to eliminate fuel delivery inconsistencies. Built specifically to handle the extreme operating conditions of EPA17 emission-compliant Cummins X15, ISX15, and high-horsepower QSK60 platforms, this injector goes beyond standard component swapping. It integrates seamless hydraulic balancing with rapid-response actuation to guarantee your heavy-duty machinery delivers predictable, high-efficiency output across thousands of runtime hours.



🔍 Technical Calibration & Data Profile



To ensure absolute compatibility during parts sourcing and rebuilding, the following precise metrics define the operational profile of the Cummins 4327147 injection assembly:

Metric Parameter	Engineering Value / Specification

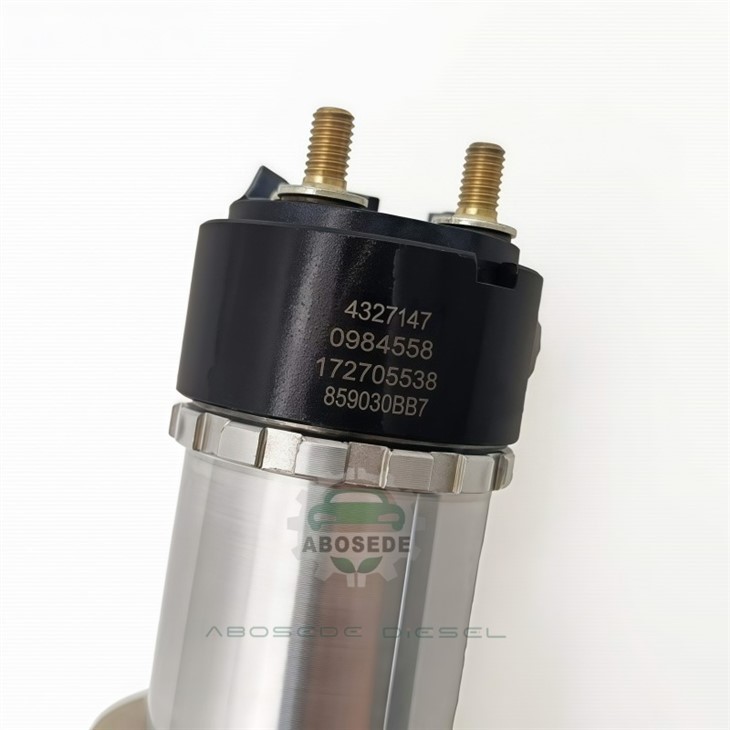

Primary OEM Part Number	4327147
Interchangeable Cross-References	5579421, 5579421PX, 5579421RX, 4327147RX, 4384365, 6513589
Fuel System Type	XPI (Xtreme Pressure Injection) / High-Pressure Common Rail (HPCR)
Engine Series Compatibility	Cummins X15, ISX15, ISX12, QSX15, QSK60 Series
Emission Standards Match	EPA17, Euro VI Compliance Profiles
ECM Management Configuration	CM2350 / CM2450 Control Parameters







The operational efficiency of the Cummins 4327147 lies within its specialized internal architecture, engineered to process ultra-low sulfur diesel (ULSD) under severe pressure differentials.

Micro-Precision Multi-Hole Nozzle: Features laser-drilled spray orifices optimized to achieve fine fuel atomization. This geometry generates an identical spray plume across all cylinders, reducing localized heat stress on the piston crowns.

Hardened Control Valve Coating: The internal command valve features a diamond-like carbon (DLC) protective layer. This drastically minimizes mechanical friction, resisting the premature wear caused by microscopic fuel contaminants or poor fuel lubricity.

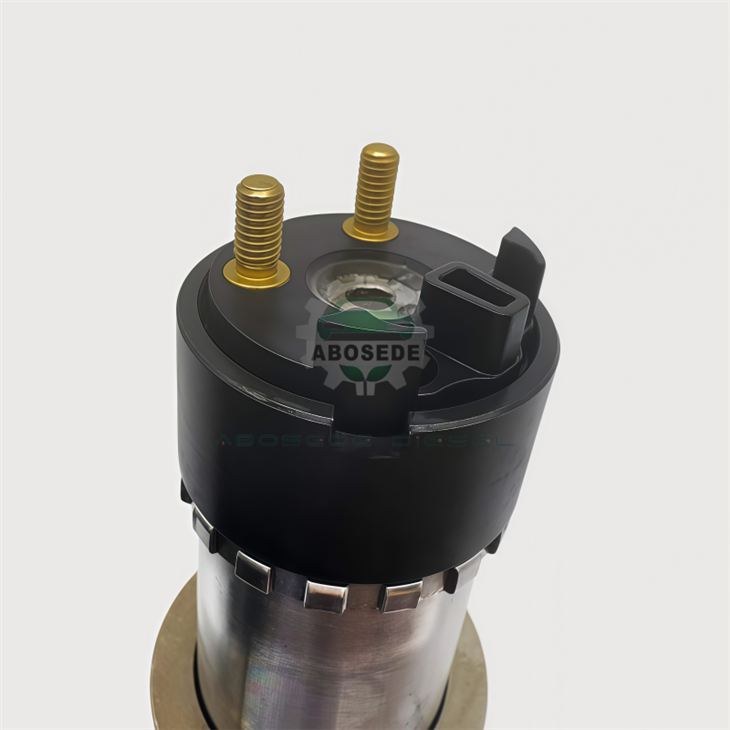

High-Acuity Actuator Solenoid: A rapid-response electrical connector assembly translates ECM signals instantaneously. It manages multiple micro-injection phases-pre-injection, main injection, and post-injection-with microsecond accuracy.





The 4327147 fuel injector is engineered to fit specific large-displacement diesel setups across several critical heavy-duty sectors:

Long-Haul Commercial Trucking: Fits Cummins X15, ISX15, and ISX12 single-overhead-cam (SOHC) engines (Production years 2017–2024).

Heavy Machinery Operations: Supports Cummins QSX15 and QSK60 power systems used in open-pit mining trucks, high-capacity excavators, and industrial water pumping stations.

Power Generation Systems: Used in standby and prime-power industrial gensets that run on Cummins heavy diesel architectures requiring precise speed control.





Modern diesel architectures rely heavily on decoupled pressure generation, a core feature of the Cummins Xtreme Pressure Injection (XPI) platform. Unlike older mechanical or unit-injector systems where injection pressure depended strictly on engine RPM, the Cummins 4327147 operates within a constant high-pressure circuit managed via a shared fuel rail.

This design allows the injector to maintain peak operating pressure even at low-idle speeds. By separating pressure production from timing controls, the XPI system ensures consistent torque output and minimized particulate generation, protecting downstream diesel particulate filters (DPF) and selective catalytic reduction (SCR) aftertreatment modules from premature soot loading.



Q1: What major operational symptoms point to a failing fuel injector in an X15 or ISX15 engine?

A: The most common signs include a sudden decrease in fuel economy, white exhaust smoke during cold starts (indicating unburnt fuel), a rough idle with distinct cylinder contribution fault codes (e.g., SPN 651), and more frequent DPF regeneration cycles caused by poor fuel atomization.

Q2: Is the Cummins 4327147 injector cross-compatible across both CM2350 and CM2450 ECM systems?

A: Yes. This part number is fully certified to work with both CM2350 and CM2450 engine management modules, provided the correct ECM calibration and injector trim codes are updated during installation.

Q3: Why does high-pressure common rail (HPCR) technology require tighter fuel filtration standards than older systems?

A: Modern XPI systems operate at pressures that exceed 2,000 bar. At these extreme velocities, any fine particulate matter acts like abrasive grit, eroding control valve seats and altering critical spray patterns.

Q4: Can I replace just one faulty injector, or is it better to replace the entire set?

A: For high-mileage fleet operations, replacing the full set of 6 injectors is highly recommended. Because all units experience identical wear cycles and thermal exposure, replacing only one component often creates a cylinder balance mismatch, with remaining older units frequently failing shortly thereafter.

Q5: What role do the fuel supply lines play when installing a replacement 4327147 assembly?

A: High-pressure fuel lines feature crush-sealing ends that deform upon initial torquing to create a high-pressure seal. Reusing old fuel delivery lines often leads to micro-leaks or introduces dislodged metal flakes into the new injector.
