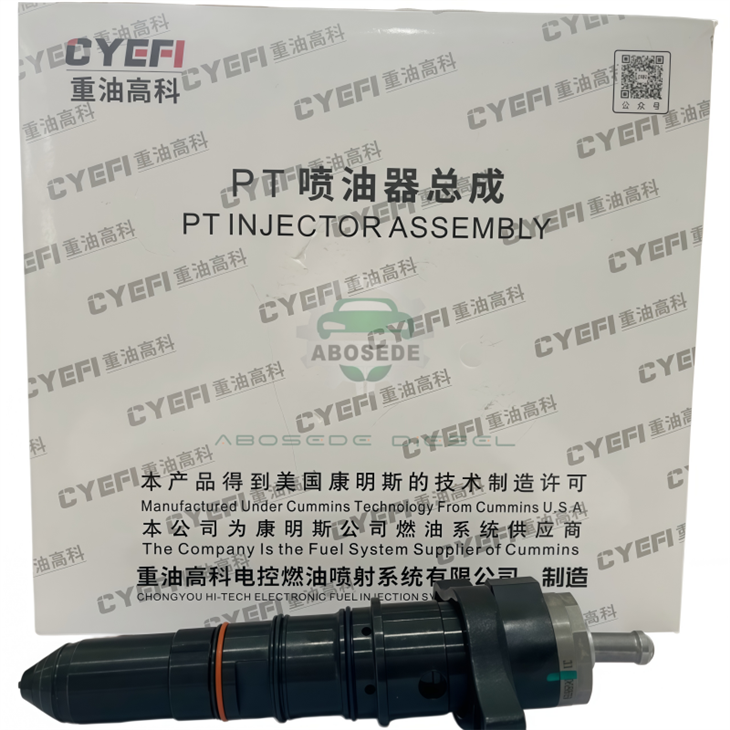

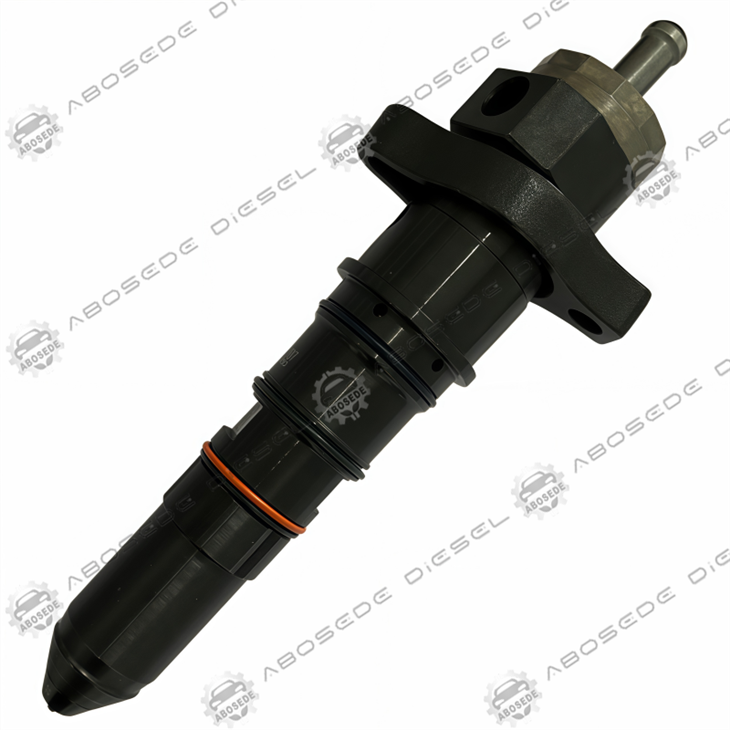

4914328 PT Injector | Precision Fuel Metering For High-Performance Diesel Engines

In the demanding world of heavy-duty diesel mechanics, the difference between a running engine and a stalled one often comes down to the precision of fuel delivery. Unlike modern high-pressure common rail (HPCR) systems that rely on electronic solenoids to time injection, the 4914328 PT Injector operates on the unique "Pressure-Time" principle. This component is not merely a nozzle; it is a mechanical pump in itself, responsible for metering, timing, and atomizing fuel with extreme accuracy. For fleet managers and engine rebuilders specializing in Cummins-powered machinery, this injector represents the gold standard of durability and hydraulic efficiency, designed to withstand the rigors of continuous industrial operation where electronic fragility is not an option.



⚙️ Technical Data & Specifications



Feature	Specification
Part Number	4914328
System Type	PT (Pressure-Time) Fuel System
Application	Heavy-Duty Diesel Engines (e.g., Cummins N-Series, K-Series)
Material	High-Strength Alloy Steel / Hardened Seat
Function	Mechanical Fuel Metering & Injection
Condition	New / Remanufactured (OEM Standard)
Operating Principle	Hydraulic Pressure vs. Time Duration





To understand the value of the 4914328, one must look at its internal architecture, which differs vastly from common rail injectors. In a PT system, the injector acts as a final-stage pump. It contains a plunger and a barrel assembly that creates the final injection pressure-often reaching upwards of 105 MPa (approx. 15,000 psi)-independent of the supply pump's pressure.

The structure includes a precision-machined body, a return spring, and a needle valve seat. The "PT" logic dictates that fuel enters the injector at a pressure determined by the main pump, but the volume is determined by how long the metering orifice is open (time) multiplied by that pressure. This mechanical simplicity eliminates the need for complex wiring harnesses within the cylinder head, making the 4914328 inherently robust against electrical failures, though it demands exacting tolerances in its metal-to-metal fitments to prevent internal leakage.





Selecting the correct injector goes beyond matching a part number; it requires understanding the engine's specific duty cycle. The 4914328 is typically engineered for engines requiring a specific spray pattern and flow rate to optimize combustion without causing "dieseling" or excessive smoke.

When integrating this into a repair strategy, consider the following selection logic:

Engine Model Match: Verify compatibility with specific Cummins N14, M11, or L10 architectures where physical dimensions match the cylinder head cup.

Flow Rate Calibration: Ensure the replacement matches the original flow characteristics to maintain cylinder balance.

Top Stop Setting: The physical height of the plunger travel (top stop) must be verified during installation to ensure proper compression release braking function (if equipped) and injection timing.





The 4914328 does not work in isolation; it is the endpoint of a sophisticated hydraulic circuit. In the PT ecosystem, roughly 80% of the fuel supplied to the injector is used for cooling and lubrication, circulating back to the tank through the return line. This constant flow of diesel keeps the injector body temperature low, preventing thermal seizure-a common failure mode in air-cooled or poorly lubricated systems.

Unlike common rail systems where pressure spikes can damage piezoelectric crystals, the PT system absorbs pressure fluctuations hydraulically. However, this places immense stress on the injector cup seal. Therefore, when installing the 4914328, it is critical to inspect the cup interface. A compromised cup will allow combustion gases to escape into the coolant or oil gallery, leading to catastrophic engine failure regardless of the injector's quality.



Q: Can I use a standard Common Rail injector tester for the 4914328?
A: No. The 4914328 relies on a mechanical camshaft to actuate the plunger and requires a specialized PT test bench that simulates the pressure-time relationship, rather than just checking electrical resistance or solenoid response.

Q: Why does my engine smoke after installing new 4914328 injectors?
A: This often points to an issue with the "top stop" height adjustment. If the injector plunger does not travel the full distance, it will not inject fuel at the precise moment, leading to incomplete combustion. Always check the timing settings during installation.

Q: How does the cooling system in this injector work?
A: The PT system is a "total loss" system regarding flow. Excess fuel flows through the injector body and back to the tank. This circulation carries away heat generated by combustion and friction, acting as both a coolant and a lubricant for the precision plunger.

Q: Is the 4914328 compatible with bio-diesel blends?
A: Generally, yes. Since the PT system is mechanically actuated and lacks sensitive electronic ceramics, it handles bio-diesel well, provided the fuel meets standard viscosity and lubricity requirements to protect the plunger/barrel interface.

Q: What causes "drooling" in a PT injector?
A: Drooling occurs when the needle valve seat is worn or contaminated with debris, preventing a tight seal. This allows fuel to drip into the cylinder after the injection event, washing down cylinder walls and diluting the engine oil.
