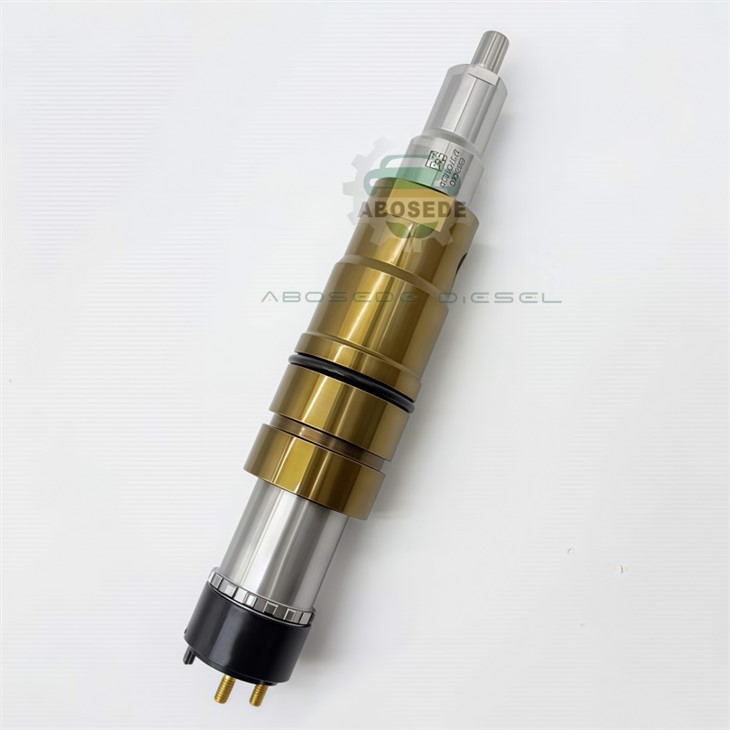

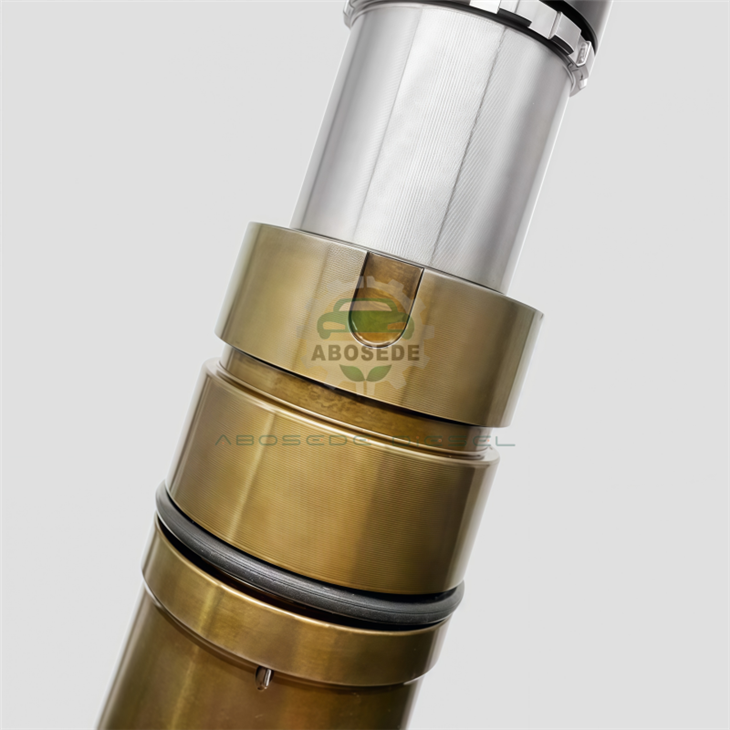

Cummins 2897320 XPI Fuel Injector For ISX15 / X15 – OEM-Spec Common Rail Injector With Multi-Event Injection Control

When evaluating injectors for heavy-duty diesel platforms, the real differentiator is not just pressure capability-but how consistently the injector performs across transient load conditions. The Cummins 2897320 fuel injector is specifically engineered for dynamic combustion stability, ensuring precise fuel metering during acceleration, torque spikes, and emission-critical phases.

Designed for the Cummins ISX15 / X15 XPI system, this injector supports advanced multi-pulse injection strategies that directly influence thermal efficiency, NOx control, and fuel economy-making it a critical component for fleets operating under EPA10/EPA13 standards.



📊 Technical Specifications & Performance Data



Parameter	Specification
Part Number	2897320
Injection System	XPI (Extra High Pressure Injection)
Max Injection Pressure	~2400–2500 bar
Control Type	Solenoid-actuated
Compatible Engines	ISX15 / X15 / QSX15
Emission Standard	EPA10 / EPA13
Fuel Type	ULSD
Cross References	4384363, 5579419PX

📌 This injector is widely used in XPI systems, supporting multi-event injection cycles for improved combustion control.





✔ Typical Applications

Long-haul trucking fleets (Freightliner, Kenworth, Peterbilt platforms)

Heavy-duty vocational trucks (dump, mixer, logging)

Industrial engines (QSX15 applications)

✔ Advanced Selection Logic

Instead of choosing by part number alone, Western buyers prioritize:

✔ CPL (Control Parts List) matching for engine-specific tuning
✔ Compatibility with ECM calibration versions (CM2250 / CM2350)
✔ Injector condition: New vs Reman vs Performance-calibrated
✔ Availability of flow test reports or validation data

💡 Key insight:

"Injector 2897320 must match not just engine model-but combustion strategy embedded in ECM software."





✔ Installation Recommendations

Always replace connector tubes when required

Program injector-specific calibration (if applicable)

Ensure contamination-free installation environment

✔ Preventive Maintenance Focus

Fuel filtration below 5 microns recommended

Monitor injector return flow for early wear detection

Conduct periodic cylinder balance tests

⚠️ Industry observation:
High-pressure injectors like 2897320 are extremely sensitive to fuel contamination and water ingress, which can lead to premature failure.





✔ Stable fuel delivery under variable load
✔ Enhanced fuel efficiency through precise metering
✔ Lower emissions via multi-stage injection
✔ Reduced engine vibration and noise

➡️ These benefits translate into lower cost per mile and longer engine service intervals.



1. What's the difference between 2897320 and earlier injector versions?

2897320 is optimized for newer emission strategies (EPA10/13), with improved multi-injection control.

2. Is remanufactured injector reliable for fleet use?

Yes-if rebuilt to OEM standards with full testing. However, consistency varies by supplier.

3. How do I verify compatibility?

Use engine serial number (ESN) and CPL-not just part number.

4. What are early signs of injector degradation?

Increased fuel consumption

Rough idle

White or black smoke

5. Can injector issues affect turbo performance?

Yes-improper injection alters combustion, impacting exhaust energy and turbo efficiency.

6. How important is flow matching between cylinders?

Critical. Imbalance can cause uneven load distribution and long-term engine wear.
