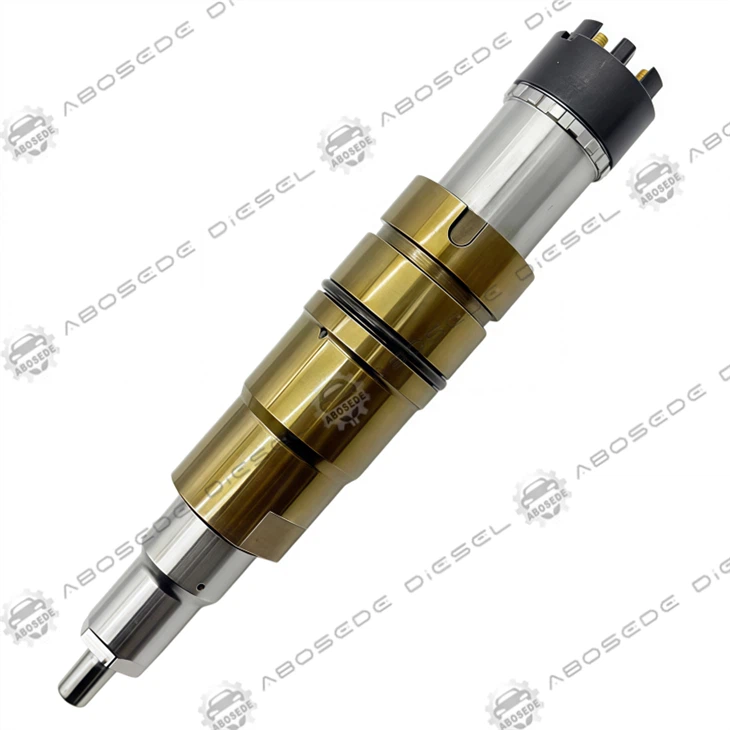

Cummins 2086663 Heavy-Duty Common Rail Injector – Ultra-Precision XPI Injection Assembly

In high-output commercial logistics and heavy industrial operations, thermal stress and variable fuel quality are the ultimate enemies of combustion efficiency. The Cummins 2086663 fuel injector represents the pinnacle of high-pressure common rail (HPCR) technology, engineered specifically to handle the brutal duty cycles of modern fleet operations. For diesel engine manufacturers, specialized repair centers, and fleet managers across North America and Europe, this fuel injector assembly is not just a replacement part-it is a calibrated system component that restores factory-spec fuel delivery, minimizes micro-stalling, and eliminates unburned fuel emissions.

By upgrading to this premium XPI-compatible platform, heavy-duty service stations can confidently guarantee their customers decreased exhaust smoke opacity and restored torque performance under load.



🔍 The Selection Logic: cross-Reference & OE Part Match Verification



To ensure perfect hydraulic pairing and electrical synchronization with the Engine Control Module (ECM), precision matching via original equipment (OE) numbers is mandatory. The 2086663 serves as a premium direct replacement within complex high-pressure common rail networks.

Use the technical cross-reference data below to verify compatibility prior to deployment:

Parameter	Specifications & Cross-References
Primary Part Number	2086663
Alternative & Core Codes	575177, 1933612, 2031835, 1933613, 2031836
System Architecture	Cummins-Scania Joint Venture XPI (Extreme High-Pressure Injection)
Engine Configuration Compatibility	14L 8-Cylinder Platforms / Inline 6 Heavy Duty Systems
Power Output Rating Supported	$650 \text{ kW} - 1150 \text{ kW}$ ($870 \text{ hp} - 1540 \text{ hp}$)
Net Unit Weight	1.50 kg (3.30 lbs)







The Cummins 2086663 functions within the proprietary Extreme High-Pressure Injection (XPI) subsystem. Unlike older mechanical unit injectors or traditional electronic unit injectors (EUIs), this common rail component is completely independent of the engine camshaft profile. The system maintains a continuous reservoir of highly pressurized diesel across a modular rail. This allows the internal piezo-electric or advanced solenoid actuator within the injector to execute multiple, precise metering events per combustion cycle-including pilot, main, and post-injection pulses.





The structural design of the 2488244 is engineered to counter the mechanical stress caused by high fuel pressures.

[Solenoid Actuator Core] ➔ [High-Precision 4326701 Valve Rod] ➔ [Micro-Orifice Nozzle P4384025]

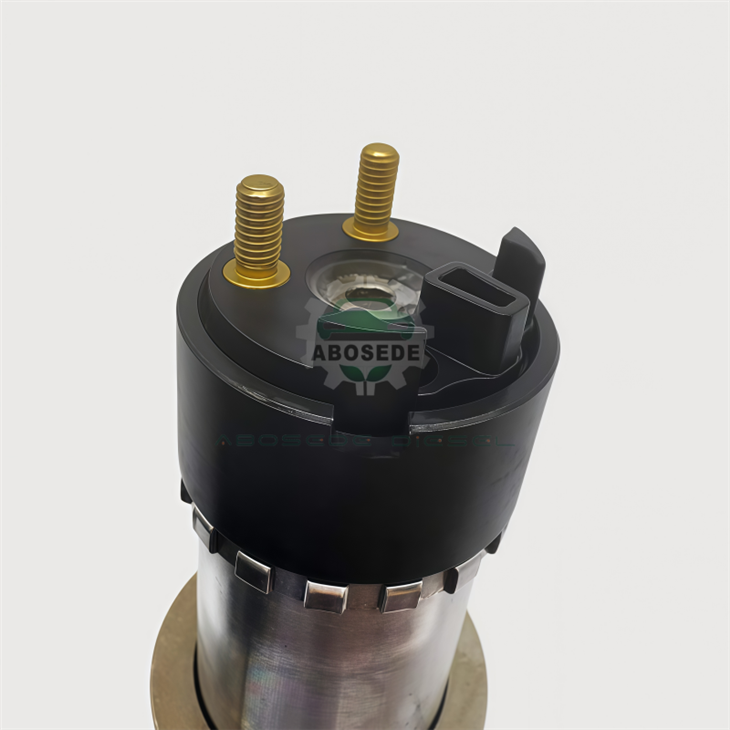

At its upper core, a fast-acting solenoid coil converts electronic control unit (ECU) signals into physical valve movement in fractions of a millisecond. This movement is transferred down the injector valve rod, which is precision-ground to tolerances measured in microns to minimize fuel leakage back into the return lines.

At the tip, the needle valve seats inside a micro-orifice nozzle array. The internal geometries are polished to prevent fluid cavitation, which can cause erosion when fuel moves at high speeds. This design maintains a consistent spray pattern throughout the injector's service life.





Achieving million-mile longevity out of high-pressure common rail systems requires strict compliance with clean-room service rules and electronic calibration procedures:

IMA Coded Injector Trim Files: Each 2086663 unit features a unique multi-digit alphanumeric calibration code stamped on the hold-down flange. This code must be uploaded into the ECM via diagnostic software during installation to compensate for micro-structural production tolerances. Skipping this step results in uneven cylinder balances and increased crankshaft vibration.

Absolute Fuel Hygiene Standards: HPCR systems are highly sensitive to particulate contaminants larger than $2 \ \mu\text{m}$. Always install 2-micron premium water separators and secondary fuel filters. Ensure fuel lines are thoroughly flushed; even a single microscopic speck of debris can cause the command valve of a new injector to score and seize open.

Torque Spec Compliance: Over-tightening the injector hold-down clamp distorts the thin-walled nozzle sleeve, leading to internal needle binding. Always use a calibrated click-torque wrench to tighten the hold-down bolt exactly to OEM specifications, and always replace the copper crush washer and O-rings at every service interval.



Q1: How does the Cummins 2086663 injector help reduce diesel particulate filter (DPF) regeneration frequency?

A: By utilizing multi-hole micro-orifices and high pressure, the injector optimizes fuel atomization. Finer fuel droplets burn completely during the main ignition window, drastically reducing raw soot output and lowering the soot-loading rate of downstream DPF systems.

Q2: Can I install this injector without programming the ECM code?

A: It is highly discouraged. Without entering the specific calibration code into the ECM, the engine control unit applies a generic fueling strategy. This can cause rough idling, increased cylinder noise, and a slight reduction in overall fuel efficiency.

Q3: What are the primary indicators that a 2086663 injector requires replacement?

A: Common failure signs include excessive black or white exhaust smoke, rough idling caused by poor power balance across cylinders, increased fuel dilution in the engine oil (from a leaking nozzle), and diagnostic trouble codes (DTCs) indicating fuel rail pressure drop-offs.

Q4: Is the 2086663 injector fully compatible with bio-diesel blends?

A: It is compatible with standard low-percentage bio-diesel blends (up to B20), provided the fuel meets ASTM D6751 standards and is equipped with high-efficiency water separators to combat the hygroscopic nature of bio-diesel.

Q5: What makes the XPI system injector different from standard common rail injectors?

A: The XPI system operates at significantly higher pressures than standard setups and uses a specialized fluid circuit design that doesn't require fuel return lines directly from the actuator circuit in the same manner, minimizing thermal feedback back to the fuel tank.
