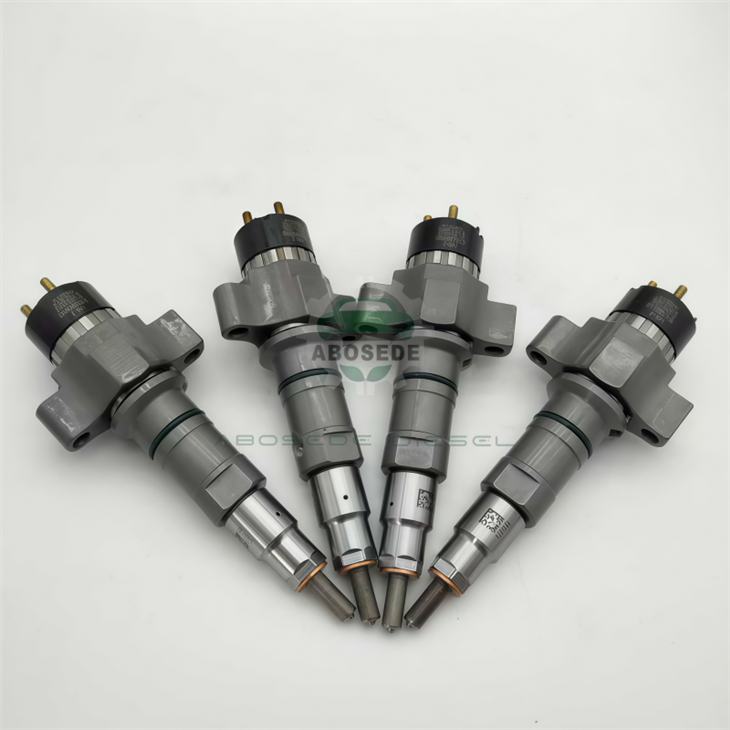

5572336 XPI Injector: Precision Engineering For Next-Gen Common Rail Systems

For diesel engine manufacturers and fleet maintenance specialists, the pursuit of peak combustion efficiency often hinges on a single, critical variable: injection pressure stability. In the realm of high-performance heavy-duty engines, the 5572336 XPI injector stands as a benchmark solution, meticulously engineered to meet the rigorous demands of modern emission standards. Unlike conventional injection units, this component is designed to thrive under extreme operating conditions, delivering the ultra-high atomization required for cleaner, more powerful engine cycles. This product detail page explores the technical superiority of the 5572336 within the context of advanced common rail architectures.



🎯 Engineered Compatibility & Application Scope



The 5572336 XPI (Xtra High Pressure Injection) injector is not merely a replacement part; it is a precision upgrade tailored for specific high-output diesel platforms. Its primary application lies within heavy-duty commercial vehicles and industrial power units that demand compliance with stringent Euro VI and EPA Tier 4 emission regulations.

This injector is specifically calibrated for engines utilizing high-pressure common rail systems where precise fuel metering is non-negotiable. It seamlessly integrates into powertrains requiring robust thermal management and superior hydraulic efficiency, making it an ideal choice for long-haul logistics fleets and heavy machinery operators who cannot afford downtime due to fuel system irregularities.





To understand the capability of the 5572336, one must look at its operational parameters. The XPI technology distinguishes itself through its ability to sustain immense hydraulic loads while maintaining microsecond-level response times.



Feature	Specification / Capability
Max Injection Pressure	Up to 2200 bar (Ultra-High Pressure)
Control Mechanism	High-Speed Solenoid Actuation
Spray Pattern	Optimized Multi-Hole Atomization
Response Time	Microsecond precision for multiple injections
Durability	Hardened steel components for high-wear resistance

These metrics ensure that the fuel is atomized into particles averaging ≤20μm, significantly enhancing the surface area for combustion and reducing particulate matter (PM) emissions.





At the core of the 5572336's design is a robust internal architecture capable of withstanding the punishing environment of a diesel combustion chamber. The injector features a highly durable solenoid valve assembly that governs the opening and closing of the needle valve with exceptional speed.

Structurally, it is built to interface flawlessly with the Electronic Control Unit (ECU). The ECU dictates the exact timing and duration of the injection pulse-controlling pre-injection, main injection, and post-injection phases. This structural synergy allows the 5572336 to execute complex injection strategies that smooth out engine noise (via pilot injection) and reduce nitrogen oxides (NOx) through precise combustion phasing.





The operational logic of the 5572336 relies on the constant availability of high-pressure fuel from the common rail manifold. When the ECU signals the solenoid, the internal control valve lifts, allowing high-pressure fuel to actuate the needle valve and spray fuel through precision-machined nozzles.

From a maintenance perspective, the longevity of this XPI injector is heavily dependent on fuel quality. To maintain its rated performance:

Filtration: Always use high-efficiency fuel filters to prevent particulate contamination, which can erode the precision couples inside the injector.

Cleaning: Periodic professional cleaning is recommended to remove carbon deposits from the nozzle tips, ensuring the spray pattern remains optimal.

Diagnostics: Regular electronic diagnostics should be performed to verify that the solenoid's electrical resistance and response times remain within factory specifications.



1. How does the XPI technology in the 5572336 differ from standard CR injectors?
The XPI (Xtra High Pressure Injection) system is designed to operate at significantly higher pressures (up to 2200 bar) compared to earlier generation common rail systems. This results in finer fuel atomization and better mixing with air, which is crucial for meeting modern emission targets without sacrificing torque.

2. Can the 5572336 injector support multiple injection events per cycle?
Yes. The 5572336 is engineered for rapid response, allowing it to perform pre-injection, main injection, and post-injection within a single engine cycle. This flexibility helps in reducing combustion noise and optimizing exhaust gas temperatures for after-treatment systems.

3. What are the signs that my 5572336 injector needs replacement or service?
Common symptoms include rough idling, increased fuel consumption, excessive black or white smoke from the exhaust, and difficulty starting the engine. A diagnostic scan revealing cylinder imbalance or high return flow rates can also indicate internal wear.

4. Is this injector compatible with biodiesel blends?
While the 5572336 is built with durable materials, prolonged use of high-percentage biodiesel blends requires strict adherence to maintenance schedules. Biodiesel can sometimes lead to deposit formation or material compatibility issues if the fuel is not stabilized, so checking manufacturer guidelines for fuel specifications is essential.

5. Why is precise ECU calibration important for this injector?
The 5572336 relies on exact voltage pulses from the ECU to time its opening and closing. Incorrect coding or calibration can lead to poor spray timing, resulting in reduced power, higher emissions, and potential engine damage due to improper combustion phasing.
