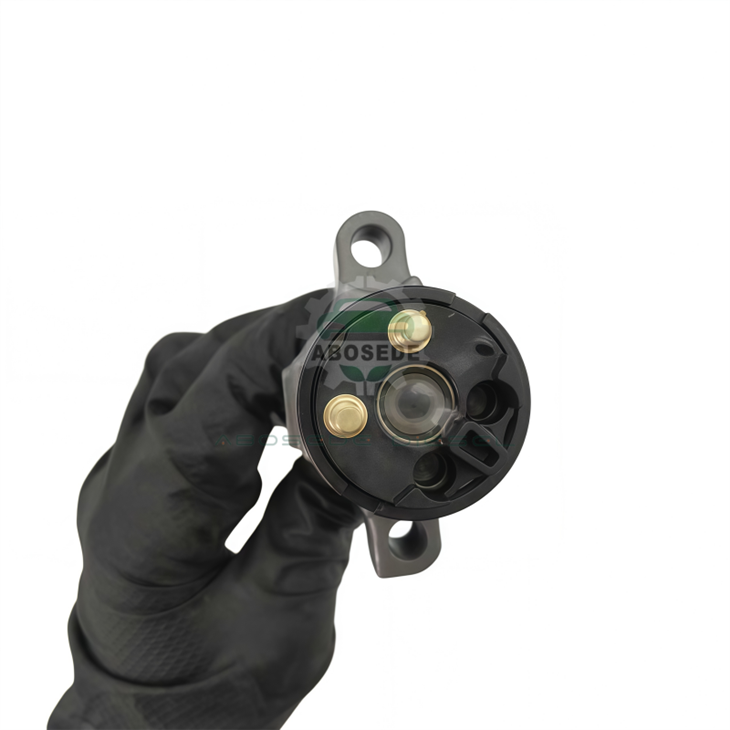

The Heart Of The XPI System: Cummins 5594305 Fuel Injector For Maximum Torque

In the intricate ecosystem of modern heavy-duty diesel engines, the fuel injection system acts as the central nervous system, dictating everything from raw horsepower to emission compliance. For procurement specialists and master technicians across Europe and North America, understanding the symbiotic relationship between the high-pressure pump and the injector is non-negotiable. The Cummins 5594305 XPI (Xtra Pressure Injection) fuel injector is not merely a replacement part; it is a precision-engineered actuator designed to harness the full potential of Cummins' most advanced fueling architecture. This component serves as the critical gateway where immense hydraulic energy is converted into kinetic power, making its selection vital for maintaining the delicate balance of performance and regulatory adherence.



📊 Technical Data & Performance Metrics



To ensure seamless integration with your engine's electronic control module (ECM) and high-pressure fuel rail, accurate specification matching is paramount. Below are the defining operational parameters of the 5594305 model:

Part Number: 5594305 (XPI Series)

System Architecture: Xtra Pressure Injection (XPI) Common Rail

Actuation Technology: High-Response Solenoid Valve

Operating Pressure Range: Optimized for ultra-high pressure systems (2000 - 2500+ bar)

Fuel Specification: Ultra-Low Sulfur Diesel (ULSD), compatible with B20 Biodiesel blends

Injection Strategy: Multi-pulse modulation (Pilot, Main, Post-injection events)

Calibration Requirement: Requires IMA (Injector Metering Adjustment) code programming





The 5594305 is engineered specifically to operate within the unique demands of the XPI fuel system. Unlike standard common rail injectors, the XPI platform is characterized by its ability to sustain extreme injection pressures without compromising cycle-to-cycle stability. The internal structure of the 5594305 features a hardened needle valve and seat assembly, ground to micron-level tolerances. This robust construction allows it to withstand the punishing hydraulic shocks generated during rapid solenoid actuation.

When the ECM triggers the solenoid, the internal valve lifts almost instantaneously, exposing the nozzle orifices to the high-pressure reservoir. This design ensures superior atomization, breaking the fuel into a microscopic mist that penetrates deep into the combustion bowl. The structural integrity of the 5594305 prevents "dribble" or secondary injections, which are primary contributors to piston crown erosion and oil dilution in high-output engines.





Selecting the correct injector requires a clear understanding of the engine's duty cycle and thermal load. The 5594305 is typically specified for high-horsepower, large-displacement engines found in severe-service applications, such as long-haul freight, heavy construction, and mining operations.

From a strategic sourcing perspective, the logic for choosing the 5594305 centers on flow consistency under load. In scenarios where an engine is constantly subjected to peak torque demands, inferior injectors may struggle to maintain the precise air-fuel ratio, leading to excessive exhaust gas temperatures (EGT). If your operational data highlights issues with thermal management or incomplete DPF regeneration cycles, upgrading to or maintaining genuine 5594305 units ensures the post-injection events required for soot oxidation are delivered with absolute precision.





The longevity of the 5594305 is intrinsically linked to the cleanliness of the fuel supply and the hygiene of the installation process. The XPI system's tight internal clearances are highly susceptible to abrasive wear.

1. Filtration Standards: Always utilize OEM-recommended fuel filters capable of high-efficiency particulate arrestment. Water separation is equally critical, as moisture can cause rapid corrosion of the precision mating parts inside the injector.
2. Rail Hygiene: During replacement, it is imperative to clean the injector bore and ensure no debris enters the high-pressure lines. Contamination introduced during service is a leading cause of premature nozzle failure.
3. Electronic Calibration: Upon installation, the specific IMA code for the 5594305 must be programmed into the ECM. Failure to do so will result in unbalanced cylinder contribution, rough idling, and reduced fuel economy.



Q1: What is the primary advantage of the XPI system used by the 5594305?
A: The XPI (Xtra Pressure Injection) system is designed to achieve higher injection pressures than standard HPCR systems. This results in finer fuel atomization, more complete combustion, and improved fuel efficiency, particularly under heavy load conditions.

Q2: Can a faulty 5594305 injector trigger a DPF blockage warning?
A: Yes. If the injector fails to execute the precise post-injection pulses required to raise exhaust temperatures, the Diesel Particulate Filter (DPF) cannot regenerate effectively, leading to soot accumulation and blockage warnings.

Q3: Why is programming the IMA code essential for this injector?
A: Each injector has slight manufacturing variances in flow rate. The IMA code tells the ECM exactly how to compensate for these differences, ensuring that every cylinder receives the exact amount of fuel needed for smooth operation.

Q4: Is the 5594305 compatible with older common rail systems?
A: No. The 5594305 is calibrated specifically for the pressure curves and electronic timing of the XPI platform. Using it in a standard HPCR system (or vice versa) will result in poor performance and potential engine damage.

Q5: What are the signs of a leaking return line on this injector?
A: A leaking return line often manifests as a strong smell of diesel fuel in the engine bay, visible wetness around the injector head, or difficulty starting the engine due to air entering the fuel system (aeration).
