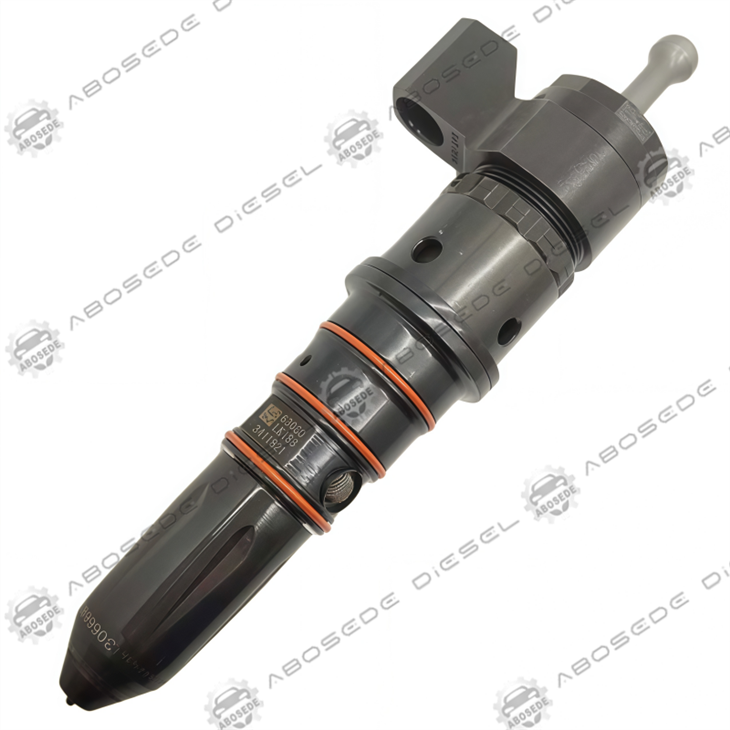

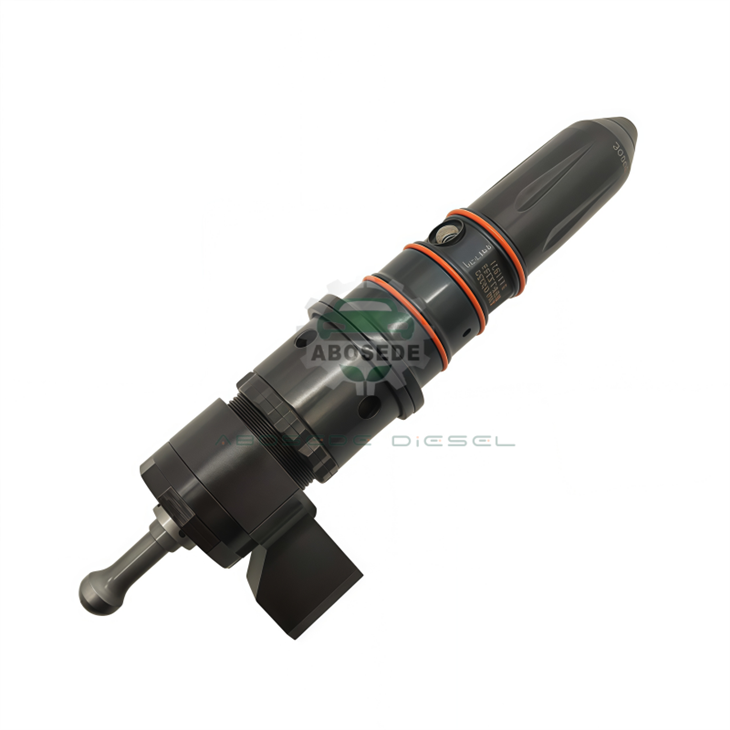

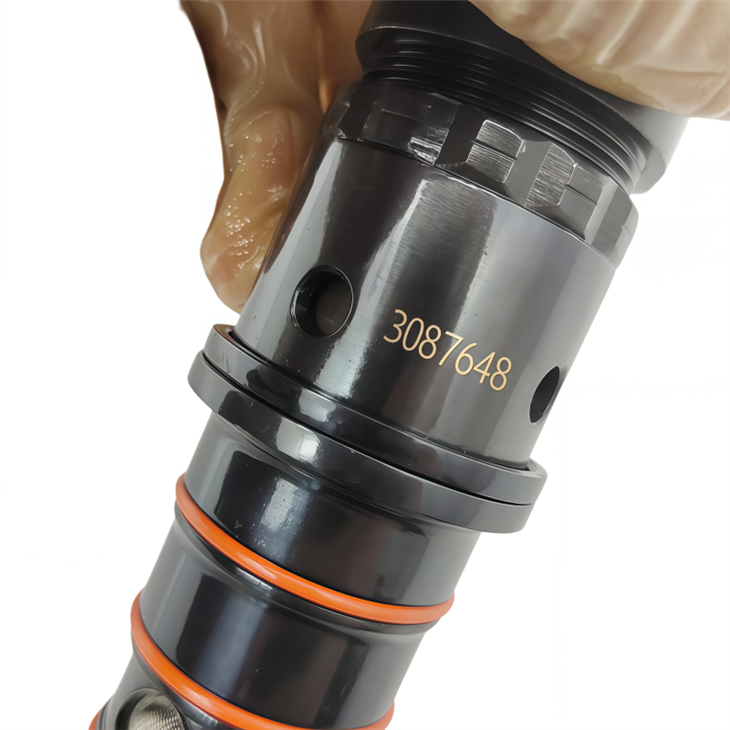

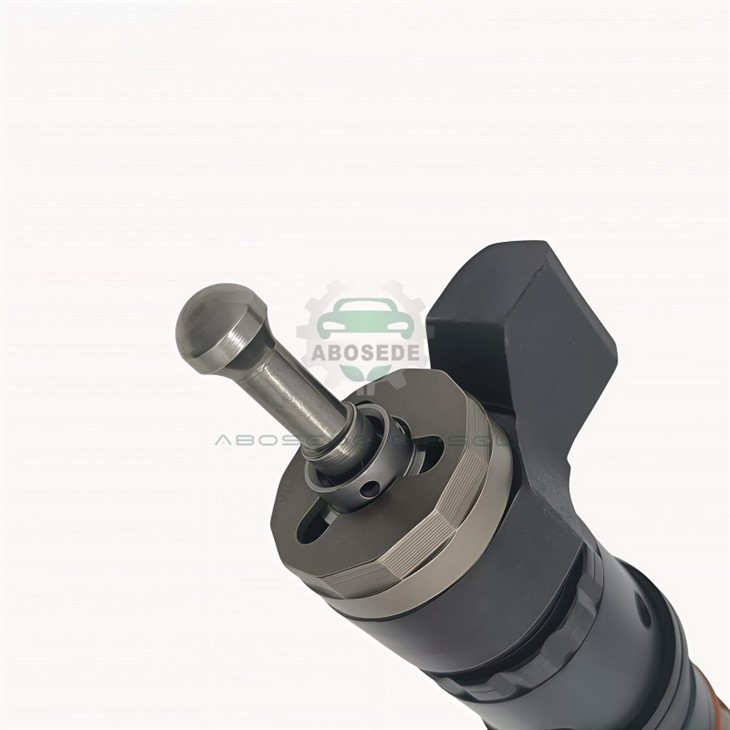

3087648 M11 Injector | Optimizing Combustion Efficiency in Cummins PT Systems

In the high-stakes environment of industrial power generation and heavy-haul transport, engine performance is defined by the efficiency of the combustion event. While modern electronics have taken over many aspects of engine management, the fundamental physics of fuel delivery remains paramount. The 3087648 injector, designed specifically for the robust Cummins M11 platform, serves as the linchpin in this process. Unlike electronic unit injectors that rely on complex solenoids, this component utilizes a purely mechanical, hydraulic design to atomize fuel with extreme precision. For operators managing fleets or maintaining stationary generators, understanding the nuance of this "Pressure-Time" (PT) component is essential for minimizing downtime and maximizing thermal efficiency.



📊 Technical Specifications & Data Sheet



Feature	Specification
Part Number	3087648
Engine Series	Cummins M11, MTA11-G Series
System Type	PT (Pressure-Time) Solid Injection
Dimensions	21.5 cm x 3.7 cm x 3.7 cm
Weight	Approx. 950g - 1.08 kg
Application	Generator Sets (Gensets), Heavy-Duty Trucks
Material	Hardened Steel Alloy





Selecting the correct injector for an M11 engine requires more than just matching the part number; it demands an understanding of the engine's specific rating and duty cycle. The 3087648 is not a generic component; it is calibrated for specific horsepower ratings and governed speeds often found in generator sets (such as the SO26194 or SO26015 applications).

When evaluating this part for procurement, consider the following logic:

Horsepower Rating: Ensure the flow rate matches the engine's kW output. An undersized injector will cause lean running and overheating, while an oversized one leads to carbon buildup and smoke.

Top Stop Dimension: The physical height of the plunger travel determines injection timing. Verify that the 3087648 matches the original equipment specifications for your specific M11 variant (e.g., G1 vs. G3 models).

Calibration Code: Always cross-reference the calibration code on the injector body against the engine data plate to ensure hydraulic compatibility.





To understand the value of the 3087648, one must look at how it interacts with the broader PT fuel system. Unlike Common Rail systems where pressure is constant and injection is triggered electronically, the PT system relies on "Pressure" (from the pump) and "Time" (the duration the metering port is open) to determine volume.

Crucially, the M11 injector plays a vital role in engine cooling. Approximately 80% of the fuel entering the injector does not get injected into the cylinder; instead, it flows through the injector body and returns to the tank via the return line. This continuous circulation acts as a coolant, carrying away heat from the cylinder head and preventing the injector tip from overheating. This hydraulic feature makes the M11 system incredibly durable in high-ambient temperature environments, provided the return lines are free of restrictions.





For maintenance teams, the 3087648 offers distinct serviceability advantages over sealed electronic units. However, precise handling is required.

Spray Pattern Analysis: A healthy injector produces a fine, conical mist. If the spray is streaky or dribbles, the needle seat is likely worn or contaminated.

Torque Settings: Installation is critical. The hold-down clamp torque must be exact. Over-torquing can distort the injector body, causing the plunger to stick, while under-torquing can lead to gas leakage past the cup.

Timing Checks: Because these are mechanically timed, verifying the "top stop" height with a dial indicator is a mandatory step during installation to ensure the injection event aligns perfectly with the piston position.



Q: Can I install a 3087648 injector meant for a generator set into a truck engine?
A: Generally, you should avoid cross-applying injectors between stationary (genset) and mobile (truck) applications without verifying flow rates. Genset injectors like the 3087648 are often tuned for constant RPM operation, whereas truck engines require a different torque curve profile.

Q: What causes "knocking" after installing new injectors?
A: Knocking usually indicates incorrect timing. If the injector "top stop" dimension is off, or if the shims under the follower lever are incorrect, the fuel will be injected at the wrong time in the compression stroke, causing detonation.

Q: How do I clean a clogged 3087648 injector?
A: These injectors contain precision lapped surfaces. Do not use wire brushes or abrasive tools on the tip or plunger. Use ultrasonic cleaning with a solvent specifically designed for diesel injectors, followed by testing on a dedicated PT test bench.

Q: Why is my oil level rising (oil dilution)?
A: This is a classic sign of injector failure. If the O-rings on the injector body fail, or if the nozzle valve sticks open, raw diesel fuel will leak past the rings or drip into the cylinder, eventually washing down the cylinder walls and contaminating the crankcase oil.

Q: Does this injector work with Bio-diesel blends?
A: Yes, the mechanical nature of the 3087648 makes it generally compatible with bio-diesel blends (like B20), provided the fuel meets ASTM standards for lubricity. However, bio-diesel can degrade rubber seals faster, so inspecting O-rings during maintenance is crucial.
