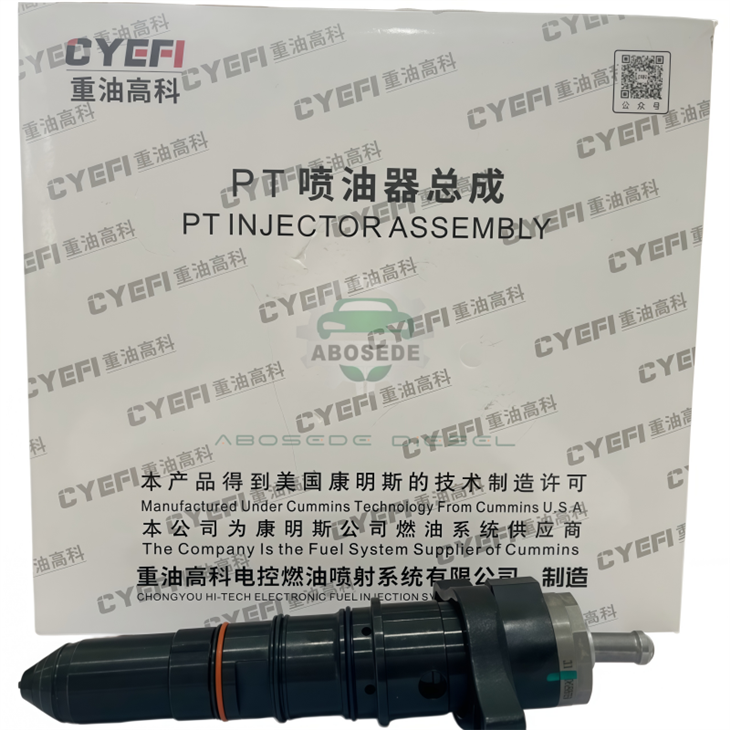

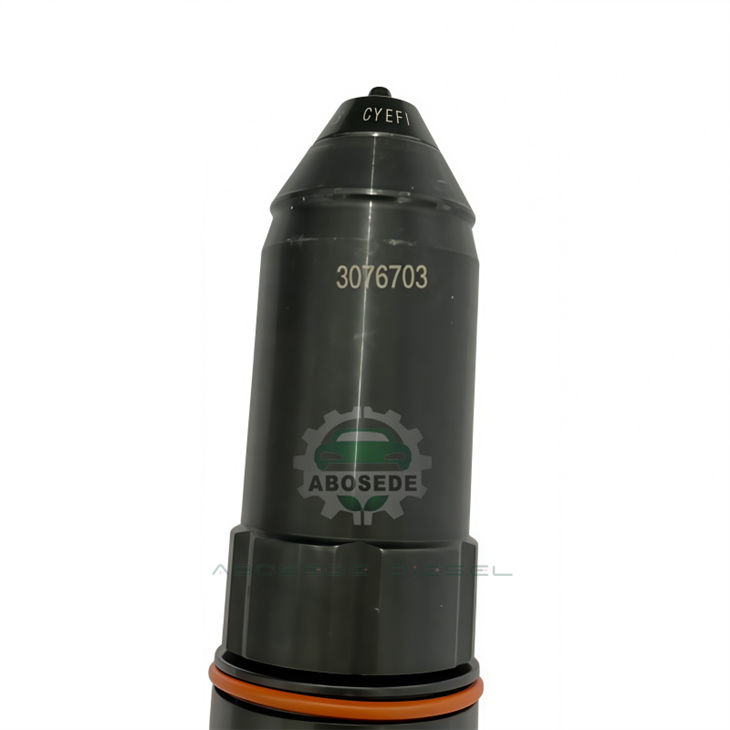

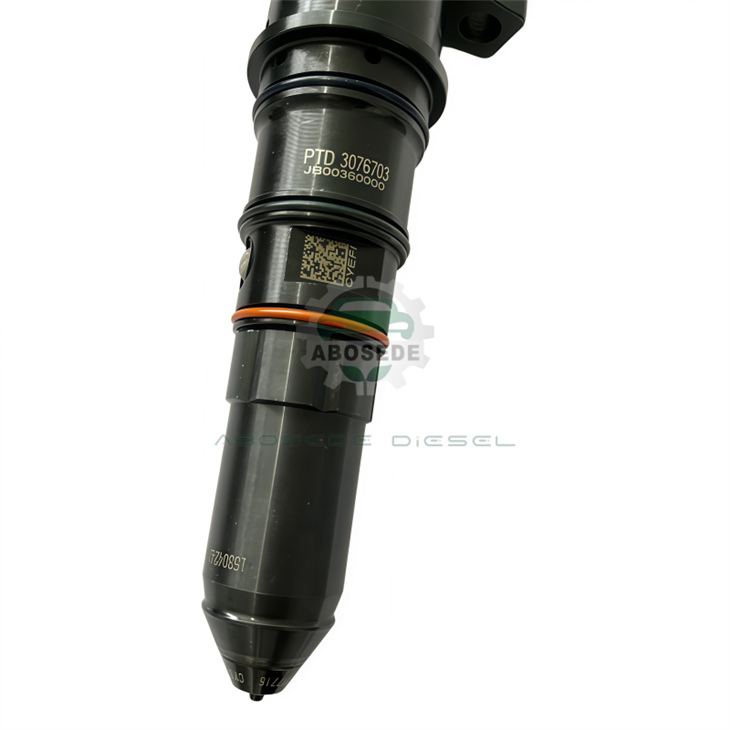

3076703 PT Injector | K38 CYEFI Fuel System Upgrade & Specs

In the realm of heavy-duty industrial power, longevity is not just a feature-it is a requirement. For the legendary Cummins K38 engine, reliability hinges on the precise management of fuel under extreme pressure. This product page details the 3076703 PT Injector, a critical component engineered to maintain the structural and combustion integrity of your power unit. Unlike generic aftermarket options, this injector is designed to interface seamlessly with the unique Pressure-Time (PT) dynamics of the K38 architecture, ensuring that every cycle delivers optimal atomization and power.



📊 Technical Specifications



Parameter	Specification
Part Number	3076703
Engine Compatibility	Cummins K38 (Industrial, Marine, Generator Sets)
Fuel System	PT (Pressure-Time) / CYEFI Compatible Architecture
Injector Type	Unit Injector (Mechanical/Hydraulic Drive)
Body Material	Hardened Alloy Steel for High-Pressure Durability
Primary Function	Fuel Metering, Atomization, and Combustion Control 💧 Fluid Dynamics and Combustion Efficiency





The core function of the 3076703 extends beyond simple fuel delivery; it is about fluid dynamics. In a high-displacement engine like the K38, the air-fuel mixture must be perfectly balanced to prevent thermal shock and incomplete burning.

This injector utilizes a precision-machined nozzle tip designed to create a specific spray cone angle. This ensures that fuel droplets are small enough to evaporate rapidly upon contact with the highly compressed air in the cylinder. By optimizing the Surface-to-Volume ratio of the fuel spray, the 3076703 minimizes "wet stacking"-a common issue in generator sets where unburned fuel accumulates in the exhaust. This level of atomization is crucial for maintaining clean emissions and preventing carbon buildup on piston crowns.





Industrial environments-whether mining sites in Western Australia or construction zones in North America-subject engines to vibration, heat, and contamination. The 3076703 is built with these stressors in mind.

Constructed from high-tensile steel, the injector body resists deformation caused by the repetitive impact of the rocker arm mechanism. Internally, the plunger and barrel assembly are lapped to micron-level tolerances. This tight fit is essential for the PT system, as it relies on the precise timing of the plunger's movement to meter fuel. A worn plunger allows fuel to bypass (leak) into the crankcase, diluting the oil and potentially destroying the engine bearings. The 3076703 prevents this failure mode through superior metallurgy and surface hardening.





Choosing the correct injector requires understanding the "System Balance." In the PT fuel system, fuel pressure is generated by the pump, but the quantity is determined by the injector's internal timing and flow area.

Flow Matching: The 3076703 is calibrated to match the flow coefficients of the original K38 specifications. Using an injector with incorrect flow rates can lead to lean conditions (overheating) or rich conditions (smoke).

Top Stop Setting: This injector is designed to accommodate standard "top stop" adjustments, allowing mechanics to time the injection event precisely relative to the piston position.

CYEFI Context: While often associated with mechanical PT systems, this robust design serves as the foundational hardware for many electronic upgrades (CYEFI), proving its versatility across different generations of Cummins technology.



What is the difference between the 3076703 and standard automotive injectors?
The 3076703 is a unit injector designed for the PT system, meaning it meters fuel based on pressure and time within the cylinder head, unlike common rail injectors which rely solely on electronic solenoid timing.

Can this injector handle biodiesel blends?
Yes, the materials used in the 3076703 are compatible with standard biodiesel blends (up to B20), provided the fuel filtration system is up to date to handle the solvent properties of bio-fuels.

Why is my engine smoking after installing new injectors?
If black smoke persists, check the injector timing (top stop setting). If white smoke is present, verify that the spray pattern is correct and there is no dripping from the nozzle tip.

Does this part number supersede any older models?
The 3076703 is often a direct replacement for various earlier K38 injector codes, but you should always verify the specific engine CPL (Control Parts List) number before ordering.

How does this affect oil change intervals?
By preventing fuel dilution (leak-down into the oil pan), a properly functioning 3076703 helps maintain oil viscosity, potentially allowing you to stick to standard service intervals rather than shortened ones.

Is professional installation required?
Yes. Due to the precise torque specs and timing adjustments required for K38 injectors, we recommend installation by a certified diesel technician.
